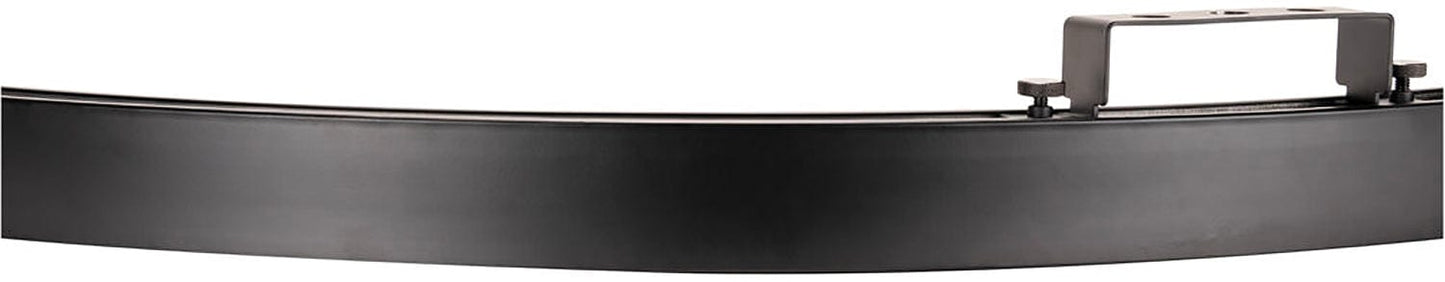

ADJ American DJ PIXIE-CURVE-60 1-Meter Curved LED Strip with Wired Digital Communication Network
The Pixie Curve 60 is an indoor, 90-degree curved, LED pixel batten that adds another creative element to the current line-up of Pixie Series fixtures. It’s powered by sixty (60) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, and is controlled and powered by a Pixie Driver unit.
Specifications:
- Source:
- SMD RGB 3-in-1, APA-102C LEDs
- Color Resolution: 8 bits per color (24 bit per pixel)
- Viewing Angle: 120 x 120 degrees
- Pixels Per Fixture: 60 pixels
- Pixel Pitch (pixel center-to-center) 16.5mm
- PWM (Pulse Width Modulation): 44,000Hz
- 50,000 Hours Life
- Connectors:
- 4-pin Power/Data Input & Output
- Dimensions & Weight:
- Length: 25.72” (653.2mm)
- Width: 1.36” (34.5mm)
- Height: 3.11” (78.8mm)
- Weight: 2.04 lbs. (1.2kg)
- Power:
- DC24V
- Max Power Consumption: 12W
- Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
- Certifications & IP Rating:
- CE
- cETLus (Pending)
- FCC
- IP65
- SMD RGB 3-in-1, APA-102C LEDs
- Color Resolution: 8 bits per color (24 bit per pixel)
- Viewing Angle: 120 x 120 degrees
- Pixels Per Fixture: 60 pixels
- Pixel Pitch (pixel center-to-center) 16.5mm
- PWM (Pulse Width Modulation): 44,000Hz
- 50,000 Hours Life
- 4-pin Power/Data Input & Output
- Length: 25.72” (653.2mm)
- Width: 1.36” (34.5mm)
- Height: 3.11” (78.8mm)
- Weight: 2.04 lbs. (1.2kg)
- DC24V
- Max Power Consumption: 12W
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
