Ross OG3 Opengear Frame

Ross OG3 Opengear Frame

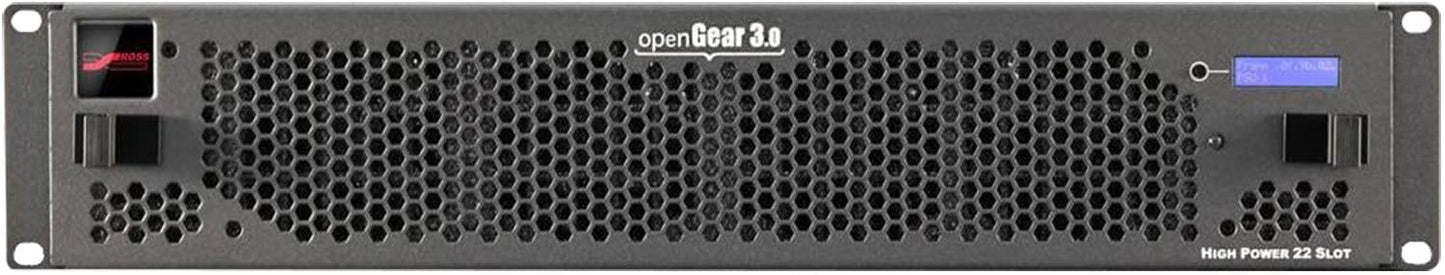

openGear® 3.0 is the evolution of the industry's first and only open hardware and software platform. The next generation openGear® frame, OG3-FR combines function, flexibility and power with advanced features like high powered 450 watt redundant power supplies, Gigabit Ethernet access to every card slot, 20 openGear® card slots, dedicated 21st and 22nd card slots for network control and internal reference distribution, and a front LCD display for easy frame, IP address and fault identification. The frame has been designed with an advanced cooling architecture with increased ventilation. Front door mounted cooling fans provide forced air cooling to all cards with front to back cooling. An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature. The front door assembly can be removed without tools for quick and easy maintenance.

Features:

• Robust 450 watt power supply with integral cooling
• Standard Ethernet connectivity
• Optional advanced Ethernet based frame controller with GigE to every slot
• Optional SNMP control and monitoring
• 2RU frame houses up to 20 openGear® cards
• Supports any mix of analog, digital, video, and audio modules in the same frame
• Modular I/O panels for connector flexibility
• Removable front door for easy fan servicing
• Frames come standard with cooling
• Front LCD display for name, IP and fault identification
• 2 independent looping references with connection to each card slot
• Optional redundant power supply, hot-swappable for 24/7 operation
• 5-year transferable warranty

Specifications:

• Depth: 17.70 in
• Height: 3.50 in
• Width: 19 in
• Product Weight: 20 lbs.
• Active Power: 500 Watt
• Warranty (Length/Type): 5 Years
• Operating Temperature (Maximum): 104 F
• Operating Temperature (Minimum): 32 F
• AC Voltage (Minimum): 100 Volts
• AC Voltage (Maximum): 240 Volts
