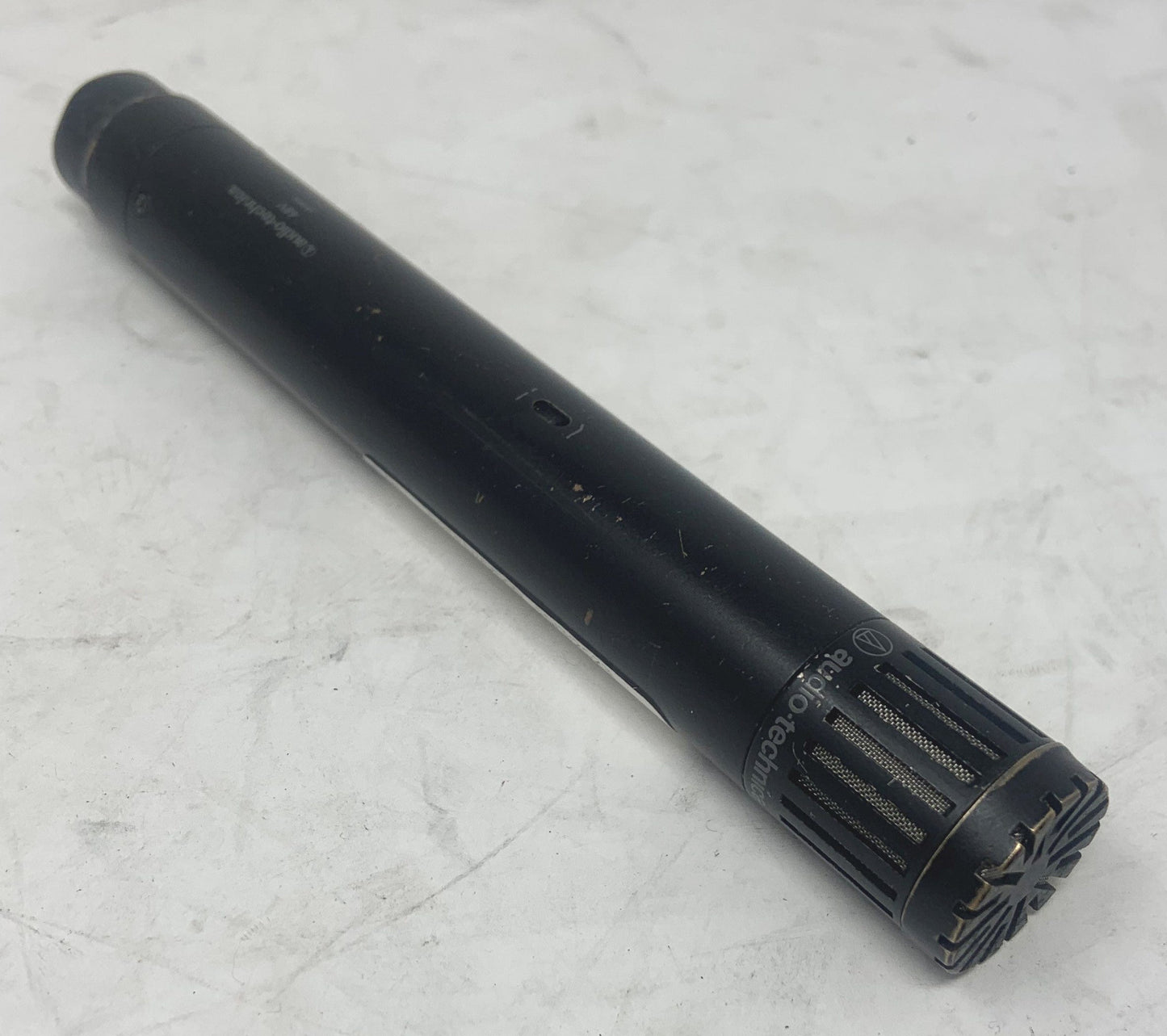

Audio Technica AT4051A Cardioid Condenser Microphone
Ideal for professional recording and critical applications in broadcast, this 40 Series cardioid condenser microphone consists of the AT4900a-48 body with the AT4051a-EL cardioid element. This versatile studio performer may be used with confidence in a wide variety of professional miking applications, even under the stringent demands of modern digital recording systems. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the microphone is totally free of the distortion associated with conventional transformer-coupled outputs. And its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments.
Features:
- Direct-coupled, balanced output ensures a clean signal even in high-output conditions
- Exceptionally low self-noise, very high output and fast transient response
- Accepts optional interchangeable capsules: AT4049a-EL (omnidirectional) and AT4053a-EL (hypercardioid)
- Switchable 80 Hz hi-pass filter
- Turned-brass microphone housing with black chrome plating
- The AT4051a consists of two modular subassemblies: an AT4900a-48 body and an AT4051a-EL head capsule (both available separately)
Specifications:
- Element: Externally polarized (DC bias) condenser
- Polar Pattern: Cardioid
- Frequency Response: 20-20,000 Hz
- Low Frequency Roll Off: 80 Hz, 12 dB/octave
- Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
- Maximum Input Sound Level: 146 dB SPL, 1 kHz at 1% T.H.D.
- Noise: 19 dB SPL
- Dynamic Range: 127 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 75 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 48V DC, 3.2 mA typical
- Switches: Flat, roll-off
- Weight: 4.2 oz (120 g)
- Dimensions: 6.10" (155.0 mm) long, 0.83" (21.0 mm) body diameter
- Output Connector: Integral 3-pin XLRM-type
- Optional Interchangeable Elements: AT4049a-EL (omnidirectional); AT4053a-EL (hypercardioid)
- Accessories Included: AT8405a stand clamp for 5/8"-27 threaded stands; AT8159 windscreen; protective carrying case
- Audio-Technica Case Style: S1
- Element: Externally polarized (DC bias) condenser
- Polar Pattern: Cardioid
- Frequency Response: 20-20,000 Hz
- Low Frequency Roll Off: 80 Hz, 12 dB/octave
- Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
- Maximum Input Sound Level: 146 dB SPL, 1 kHz at 1% T.H.D.
- Noise: 19 dB SPL
- Dynamic Range: 127 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 75 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 48V DC, 3.2 mA typical
- Switches: Flat, roll-off
- Weight: 4.2 oz (120 g)
- Dimensions: 6.10" (155.0 mm) long, 0.83" (21.0 mm) body diameter
- Output Connector: Integral 3-pin XLRM-type
- Optional Interchangeable Elements: AT4049a-EL (omnidirectional); AT4053a-EL (hypercardioid)
- Accessories Included: AT8405a stand clamp for 5/8"-27 threaded stands; AT8159 windscreen; protective carrying case
- Audio-Technica Case Style: S1
