Yamaha DTX500 Drum Trigger Module For 500 Series

Write a review Q&A SKU: DTX500 Solotech ID#:
Unfortunately the Yamaha DTX500 Drum Trigger Module For 500 Series is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.
 View full details
Unfortunately the Yamaha DTX500 Drum Trigger Module For 500 Series is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Description

Yamaha DTX500 Drum Trigger Module For 500 Series



Trigger Module Size/Weight
  • Dimensions Width: 252 mm (9-15/16 inch)
  • Height: 147 mm (5-13/16 inch)
  • Depth: 52 mm (2-1/16 inch)
  • Weight: 898 g (2 lbs)
Tone generator
  • Maximum Polyphony: 32 notes
  • Voices: Drum and percussion: 427, Melodies: 22
  • Effects: Reverb: 19, Master EQ: 2 bands
  • Drum kits: Preset: 50, User: 20
Sequencer
  • Note Capacity: Approx. 16,000 notes
  • Note Resolution: 96 ppq (parts per quarter note)
  • Song recording type: Real-time replace
  • Song tracks: 1 track
  • Songs: Demo: 3, Practice: 41, Pad: 19, User: 20
  • Click: Tempo 30 to 300 BPM, Tap Tempo supported.
  • Beat: 1/4 to 9/4
  • Timing: Accent, Quarter note, Eighth note, Sixteenth note, Triplet
  • Training Functions: Measure break, Groove check, Rhythm gate

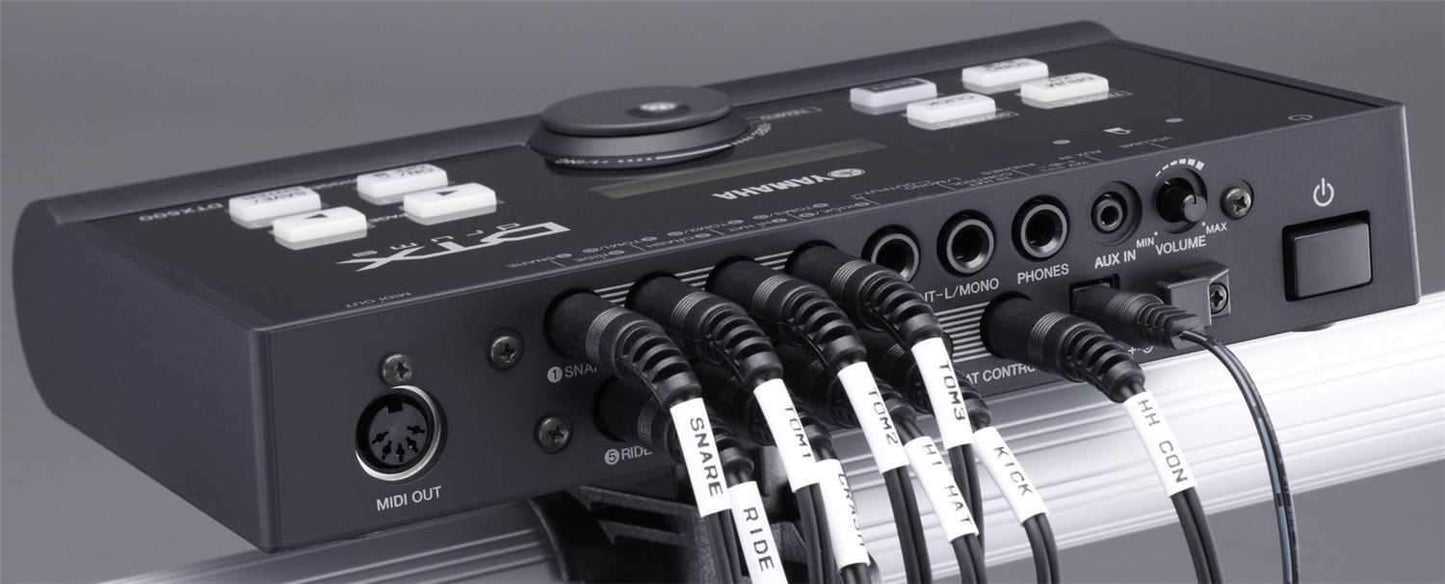

Connectors:
  • OUTPUT [L/MONO] (Standard mono phone)
  • OUTPUT [R] (Standard mono phone)
  • Trigger Inputs 1, 5, 6, 7 (Standard stereo phone
  • L: Trigger Input
  • R: Rim Switch)
  • Trigger Inputs 2, 3, 4, 8 (Standard stereo phone, L: Trigger Input, R: Trigger Input)
  • HI-HAT CONTROL (Standard stereo phone)
  • AUX IN (Stereo Mini)
  • PHONES (Standard stereo phone)
  • MIDI IN/OUT
  • Accessories: Power Adaptor (PA-130A or PA-3C)
