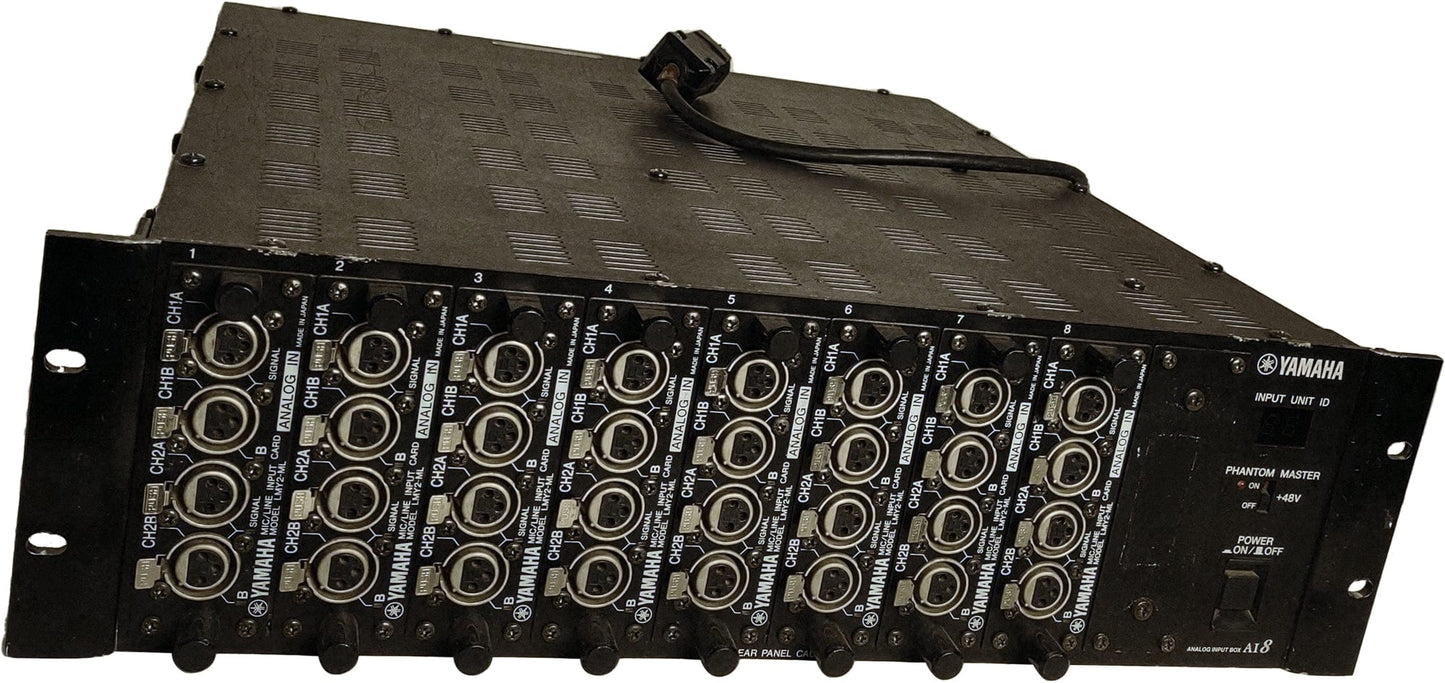

Yamaha AI8ML8 Analog Input Box with LMY2-ML Cards for PM1D Console
AI8 analog input box that has eight LMY2-ML cards installed.
Specifications
- Sampling frequency (external sync)
- 39.69 kHz – 50.88 kHz
- Power supply
- USA and Canada : 120 V, 60 Hz
- Others : 230 V, 50 Hz
- Power consumption
- 120 W
- Dimensions (W x H x D)
- 480 mm × 141.5 mm × 466.8 mm
- Weight
- 15.4 kg
- Operating temperature
- 10 – 35˚C
- Power cable length
- 2.1 m
- Cooling fan speed
- always fixed
- Accessories
- Connection cable (68-pin, D-sub, half-pitch) x 1, Length: 3m
Slots
- LMY2-ML
- Channel 1A or 1B, 2A or 2B
- 39.69 kHz – 50.88 kHz
- USA and Canada : 120 V, 60 Hz
- Others : 230 V, 50 Hz
- 120 W
- 480 mm × 141.5 mm × 466.8 mm
- 15.4 kg
- 10 – 35˚C
- 2.1 m
- always fixed
- Connection cable (68-pin, D-sub, half-pitch) x 1, Length: 3m
- LMY2-ML
- Channel 1A or 1B, 2A or 2B
