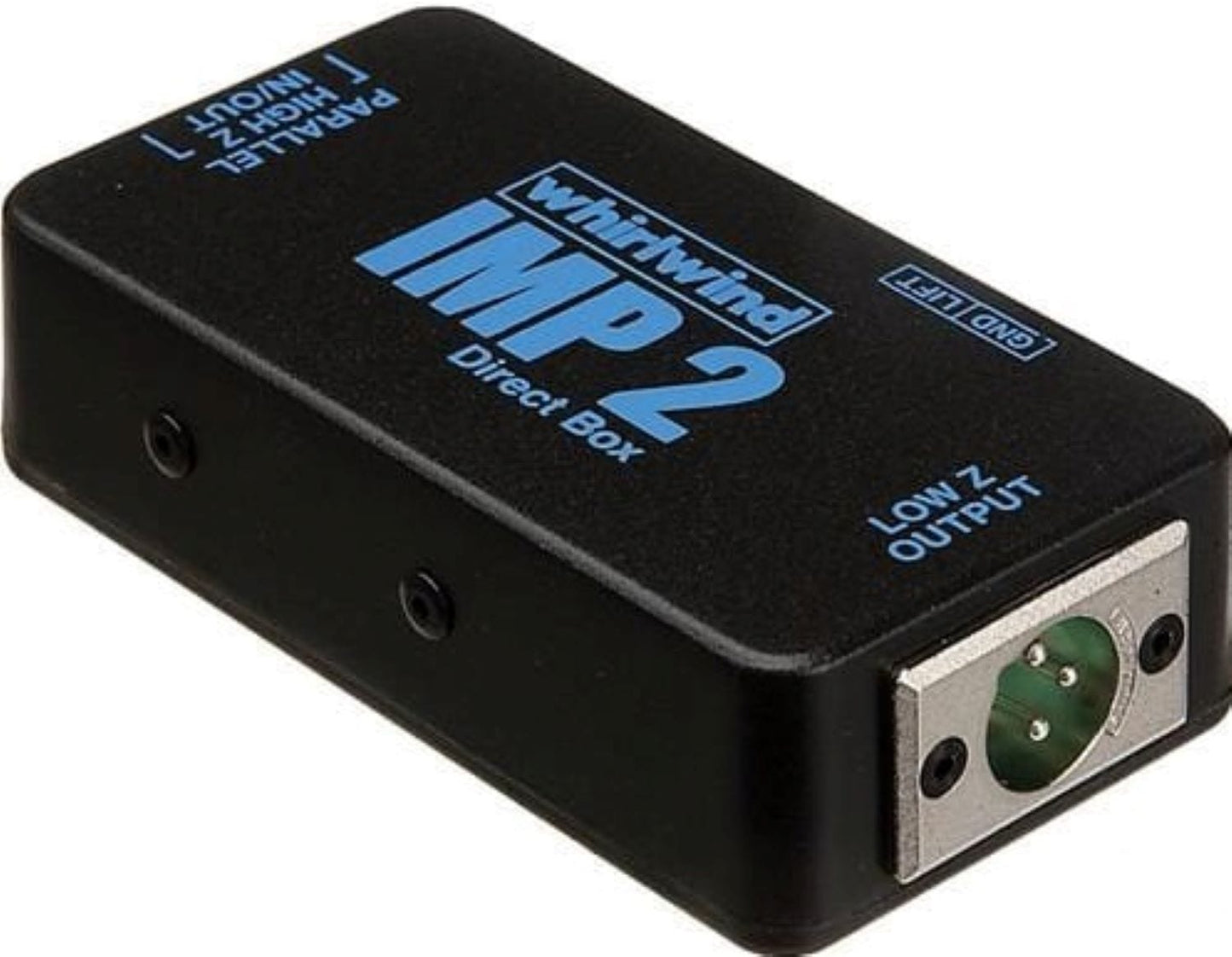

Whirlwind IMP2 1-Channel Passive Instrument Direct Box
The IMP 2 from Whirlwind is a rugged built, single channel, passive direct box. The unit converts a line or instrument level unbalanced signal to a low impedance microphone level balanced signal. Direct boxes are often referred to as "DI" boxes. This stands for "Direct Injection" as their main purpose is to convert unbalanced and/or high impedance instrument signals into a format suitable for direct connection to a mixing console - without the use of a microphone.
- 1/4" parallel wired in/out jacks
- Ground Lift switches to help eliminate hum and buzz
Specifications:
- Input Connections: 1 x 1/4" TS
- Output Connectors:
- 1 x XLR
- 1 x 1/4" TS Thru
- Input Level: Not Specified by Manufacturer
- Output Level: 20 dB below Input Level
- Frequency Response: 20 Hz to 20 kHz, ±1 dB
- Noise: Not Specified by Manufacturer
- Power: Passive
