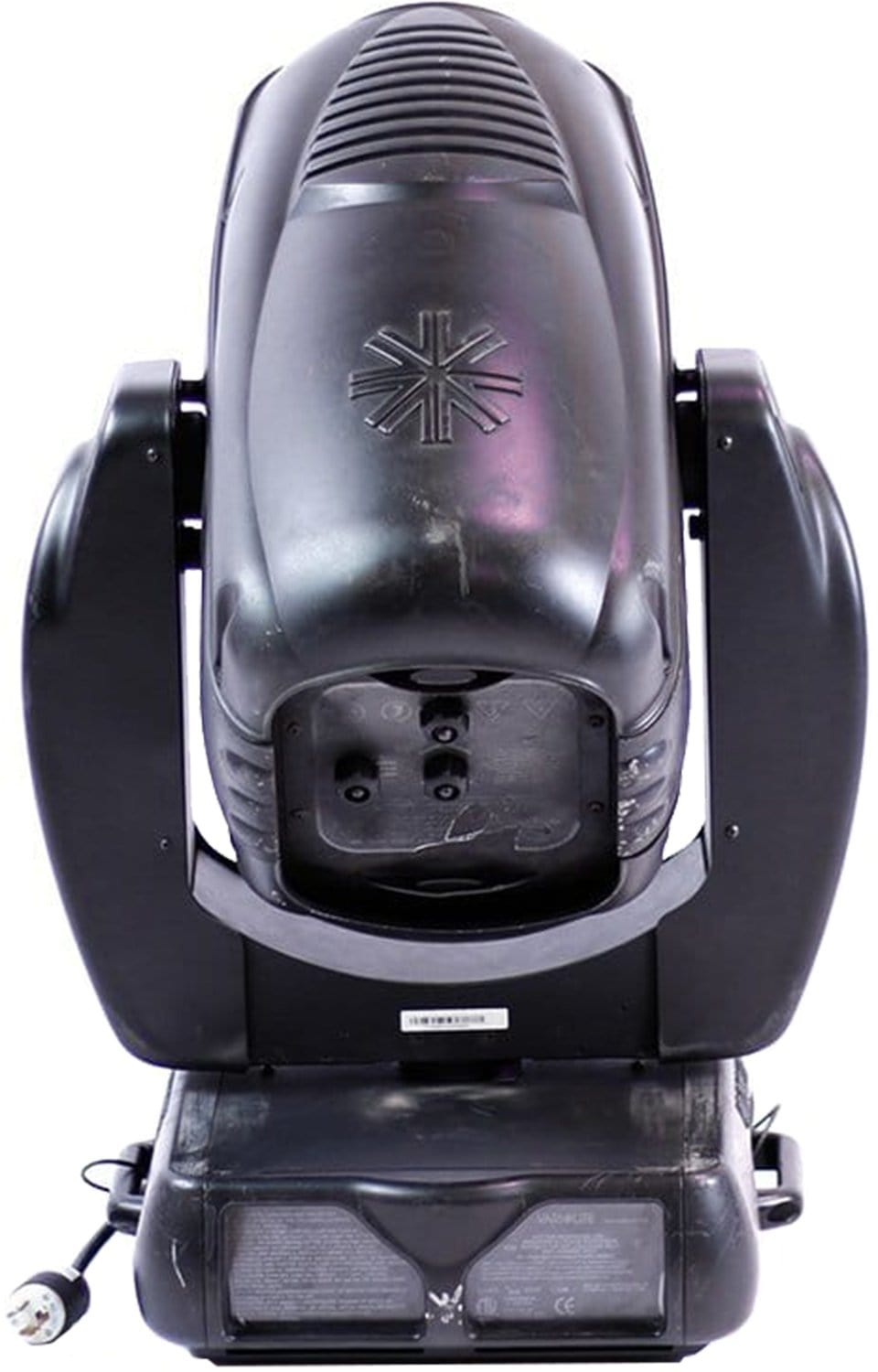

Vari-Lite VL3500 SPOT Profile Arc Moving Light
The VARI-LITE VL3500 Spot luminaire maintains the same high standards for imagery, beam control, color and brightness set by the original VARI-LITE Series 3000 Spot luminaires, but with the added feature of a four-blade shutter mechanism that allows the blades to be operated independently or in unison on two planes for a clear and crisp image.
Specifications:
- PROGRAMMABLE FUNCTIONS
- Zoom Optics: 13-element 6:1 zoom optics system covering a range of 10° to 60°.
- Color System: A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable color filters and continuous wheel rotation for additional effects. It includes a variable CTO color temperature correction filter.
- Intensity Control: Full field dimming designed for both smooth timed fades and quick dimming effects.
- Strobe: High-performance dual blade strobe system capable of ultra-fast operation.
- Rotating Gobo Wheel: Five rotatable, indexable gobo positions available on one wheel: six-position gobo wheels with five rotatable, indexable gobo positions and one open position.
- Fixed Gobo Wheel: One, seven-position fixed gobo wheel with six positions and one open position.
- Edge and Pattern Focus: Variable beam focus to soften edges of gobos or spots. Remarkable depth of field capability allows morphing effects between all pattern and effects wheels.
- Pan and Tilt: Smooth, time-continuous motion using stepper motors with encoder correction. Pan range is 540°, Tilt range is 270°. 0.3° resolution.
- Shutter Mechanism: The shutter mechanism is comprised of four frame blades that move independently or in unison on two planes for a crisp, sharp image. The entire assembly operates in a smooth, time-continuous motion using stepper motors (two per frame blade and one for the entire mechanism). The shutter mechanism can rotate 50° in either direction and the frame blades can tilt +/- 30°.
- OPTICAL
- Source: Osram HMI 1200 W/S Metal Halide Lamp, 6000°K, 85CRI
- Output: 24,000 lumens
- Reflector: Precision glass reflector with dichroic cold mirror coating.
- Color Filter: Fixed wheel color filters: .044" thick, 2.039" diameter.
- Gobo: Gobos are E size. Metal gobos are not acceptable.
- OPERATIONAL
- Power Requirements: Standard AC power distribution from 200-264 VAC, 50/60 Hz. The unit requires 7 to 12 A depending on the AC supply voltage.
- Operational Temperatures: -20° to 122°F (-29° to 50°C)
- Cooling: Forced air cooled.
- Control: Compatible with a wide variety of DMX512 consoles.
- Weight: 92 lbs. (41.8 kg) with rails
- Spacing: Hangs on 26.0 inch (66 cm) centers. All models can be mounted and operated in any orientation.
- PHOTOMETRIC
- 1200W Metal Halide
- Zoom Optics: 13-element 6:1 zoom optics system covering a range of 10° to 60°.
- Color System: A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable color filters and continuous wheel rotation for additional effects. It includes a variable CTO color temperature correction filter.
- Intensity Control: Full field dimming designed for both smooth timed fades and quick dimming effects.
- Strobe: High-performance dual blade strobe system capable of ultra-fast operation.
- Rotating Gobo Wheel: Five rotatable, indexable gobo positions available on one wheel: six-position gobo wheels with five rotatable, indexable gobo positions and one open position.
- Fixed Gobo Wheel: One, seven-position fixed gobo wheel with six positions and one open position.
- Edge and Pattern Focus: Variable beam focus to soften edges of gobos or spots. Remarkable depth of field capability allows morphing effects between all pattern and effects wheels.
- Pan and Tilt: Smooth, time-continuous motion using stepper motors with encoder correction. Pan range is 540°, Tilt range is 270°. 0.3° resolution.
- Shutter Mechanism: The shutter mechanism is comprised of four frame blades that move independently or in unison on two planes for a crisp, sharp image. The entire assembly operates in a smooth, time-continuous motion using stepper motors (two per frame blade and one for the entire mechanism). The shutter mechanism can rotate 50° in either direction and the frame blades can tilt +/- 30°.
- Source: Osram HMI 1200 W/S Metal Halide Lamp, 6000°K, 85CRI
- Output: 24,000 lumens
- Reflector: Precision glass reflector with dichroic cold mirror coating.
- Color Filter: Fixed wheel color filters: .044" thick, 2.039" diameter.
- Gobo: Gobos are E size. Metal gobos are not acceptable.
- Power Requirements: Standard AC power distribution from 200-264 VAC, 50/60 Hz. The unit requires 7 to 12 A depending on the AC supply voltage.
- Operational Temperatures: -20° to 122°F (-29° to 50°C)
- Cooling: Forced air cooled.
- Control: Compatible with a wide variety of DMX512 consoles.
- Weight: 92 lbs. (41.8 kg) with rails
- Spacing: Hangs on 26.0 inch (66 cm) centers. All models can be mounted and operated in any orientation.
- 1200W Metal Halide
