TMB ProPlex IQONE MINI 4-Port DMX Network Converter
The IQ One+ Mini provides network data distribution of up to 4 discreet DMX universes via Art-Net or sACN. The node is bidirectional, capable of sending and receiving DMX and RDM Data over a network. IQ 2X products have an additional PoE etherCON port allowing for redundant power input and/or daisy-chaining applications. With exacting standards in mind, ProPlex IQ products are rugged, intuitive, and quick to configure.
Features:
- High-power processor for glitch-free data conversion, patching and merging of up to four universes from multiple DMX, Art-Net and sACN sources
- Powerful and intuitive feature set, control, management, via on-board OLED display, web Browser Interface, or ProPlex Software
- Dual Neutrik™ etherCON ports allow very low latency linking of units - designed for ring topology redundancy when used with ProPlex GBS and EZ-LAN switches
- Optional PoE power for convenience and redundancy
- Bi-directional RDM functionality - input or output on any DMX port
- Compact, tour-ready “Blue Box” enclosure with removable yoke for truss mounting or desktop use
- RackMount kits available, for single or double units
Specifications:
- Part Number: PPIQA+425MR
- Ethernet Ports: 2 Neutrik EtherCon RJ45, 1 with PoE power input
- ArtNet/sACN Universes: 4 max.
- DMX Port:s 4 Neutrik XLR5 Black/Gold Female
- DMX Port Isolation: Optical, up to 1000V
- Network Protocols: ArtNet, sACN (E1.31)
- Ethernet Type: 100 Mbit
- PoE Standard: IEEE 802.3af-2003 standard
- Power: 100-240 VAC 50-60 Hz or PoE

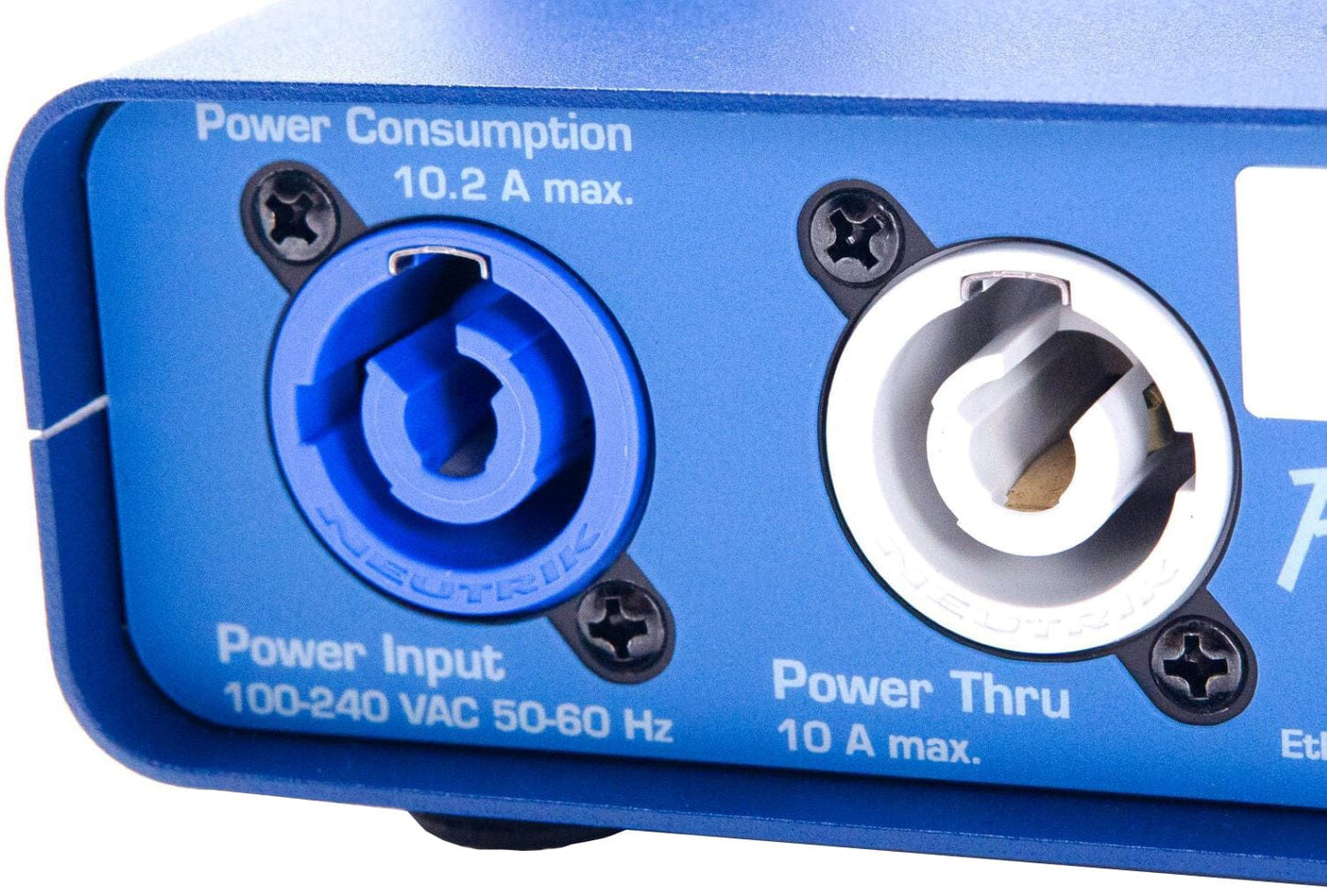

- Power Connectors: Neutrik PowerCon IN and THRU
- Power Consumption: 10 W max
- Operating Temp.: -20 to +40 ºC
- Enclosure: ProPlex BSH Small
- Unit Dimensions (WxHxD):
- 7.72 x 3.63 x 8.75 in (196.1 x 92.3 x 222.3 mm) w/yoke
- 7.72 x 1.72 x 8.75 in (196.1 x 43.7 x 222.3 mm) w/o yoke
- Unit Weight (unpacked): 5.3 lb (2.4 kg)
- Shipping Dimensions (WxHxD): 9.75 x 4.75 x 13.75 in (247.7 x 120.7 x 349.3 mm)
- Shipping Weight: 5.9 lb (2.68 kg)
