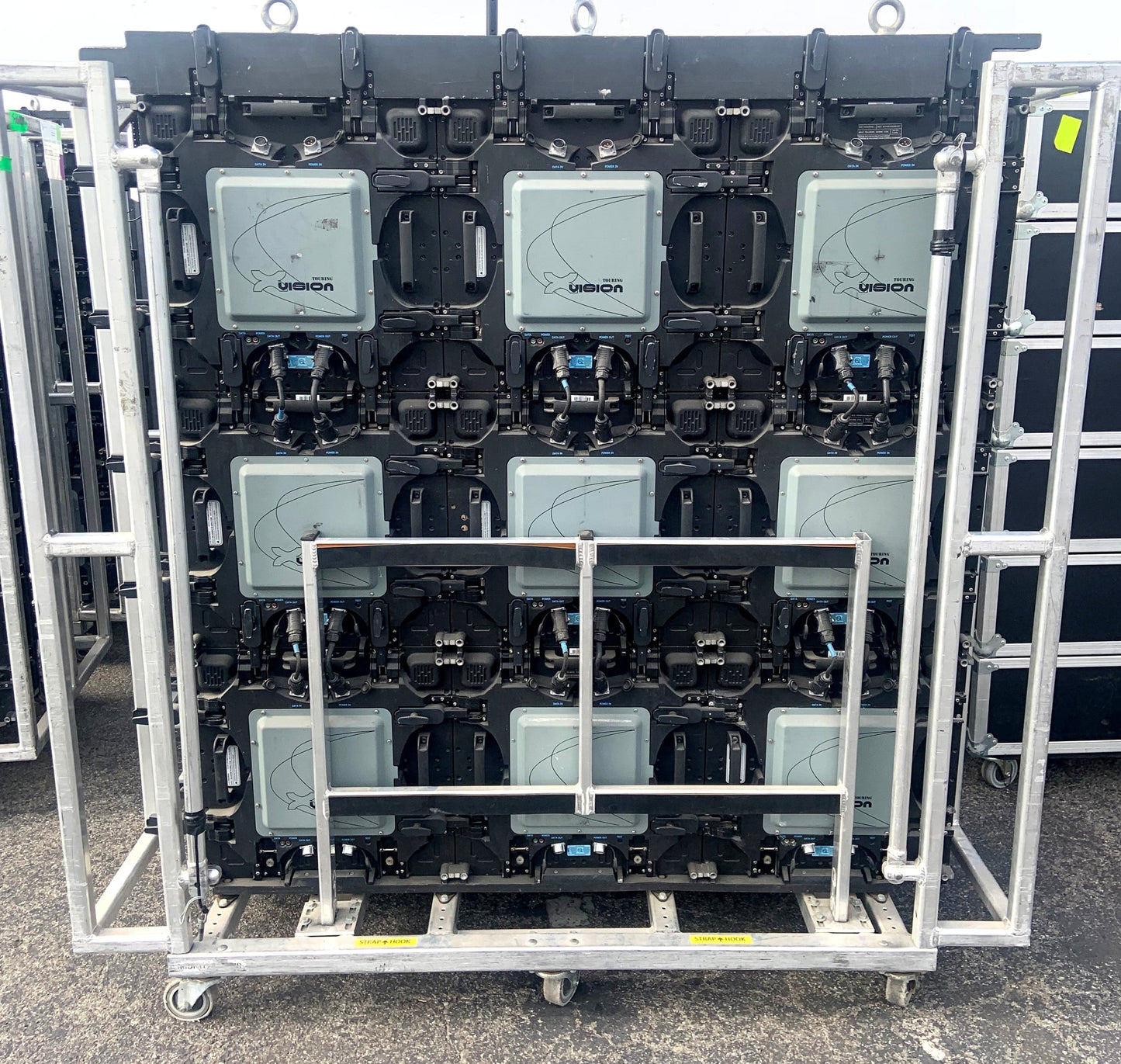

Theatrixx XVISLED10 10 millimeter Outdoor LED Tile
May require the purchase of compatible products for Power, Data Supply and rigging. Speak with a Sales Representative for more details.
xVision from Theatrixx has created a completely new standard for touring and commercial LED video display systems and video walls. Our market-leading features are the product of extensive customer feedback and many years of LED video experience. With its high brightness, fast and safety-certified rigging system, smart power and data connections, easy access for field maintenance, full IP65 rating, powerful yet ultra-quiet cooling, and interchangeable modules (regardless of pixel pitch). xVision raises the bar to new levels for the entire industry.
- Manufacturer Part Number: XVT-HRR10.66SMD-OUT
- LED Type: NationStar SMD 3 in 1
- Pixel Pitch: 10.66 mm (48 x 48 Pixels per panel)
- Brightness: 5500 nits (cd/m2)
- View Distance: 20ft Min, 330-660ft Max
- Power Consumption: 300W Max, 195W Average (6 panels max per 120V 15A circuit, 9 panels max per 208V 15A circuit)
- Dimensions: 20" x 20" x 3.5"
- Weight: 28.5 Lbs
- Protection Rating: IP65 (front), IP54 (back)
- Input Voltage: 120-240 VAC 50-60Hv auto
- Driving Mode: 1/8 scan
- Rigging Safety Factor: 10 : 1 at 15 Panels High
