Sony MVS-8000GSF Video Switcher
The MVS-8000 system has integrated a wide variety of new features including SDTV and HDTV television signal capability, advanced networking and layout-free control panels.
The MVS-8000 system includes SD/HD simulcast, multiple frame rates and resolutions, multi-channel casting and even broadcast equipment sharing, to name just a few. The MVS-8000 system is completely ready for smooth integration into current systems, offering the added quality, reliability and features, needed for the live/post production environment.

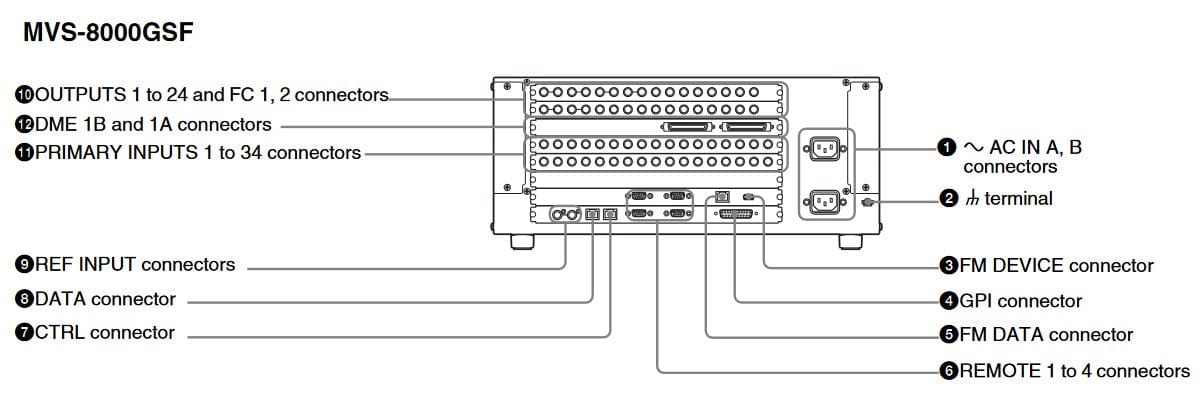

This is the main unit cabinet of the MVS-8000GSF multi format switcher processor unit (EIA 4RU size). By default the main unit alone supports SD only, but it can be upgraded to multi-format HD/SD by installing a software upgrade.
• An M/E bank installed as standard; can be extended to two M/E banks.
• 17 inputs installed as standard; can be extended to 34 inputs.
• 12 outputs installed as standard; can be extended to 24 outputs.
• Color corrector option software.
• A frame memory option board can be installed.
• Up to two format converter boards (option) can be installed. Can be extended to 16 inputs and two outputs.
• A power supply unit fitted as standard.
