Solid State Logic ALPHA LINK MADI Audio Interface

This audio interface from SSL is a fully featured, multi-channel audio converter for studio, live and broadcast applications. The unit provides high-quality twenty-four channel AD/DA converter circuitry to and from MADI and AES/EBU formats.

Features:

• Analog-to-digital and digital-to-analog converter with twenty-four analog inputs and outputs at up to 96kHz
• Twelve stereo AES/EBU digital inputs and outputs
• Fifty-six or sixty-four MADI digital inputs and outputs at up to 48kHz, twenty-eight or thirty-two at up to 96kHz
• Word/SuperClock input and output
• Video Sync input functionality available at the WordClock input. The video sync signal can be converted to Wordclock internally and transmitted via the Wordclock output
• MIDI input and output
• Connects to Mixpander via Expansion Bus port
• All input and output channels can be used simultaneously in any configuration
• Comprehensive input/output routing and mode selection matrix
• Analog input/output metering via twenty-four tri-colour LEDs

Specifications:

• ADC: 24-bit
• DAC: 24-bit
• Sample Rates: 44.1, 48, 88.2 and 96kHz

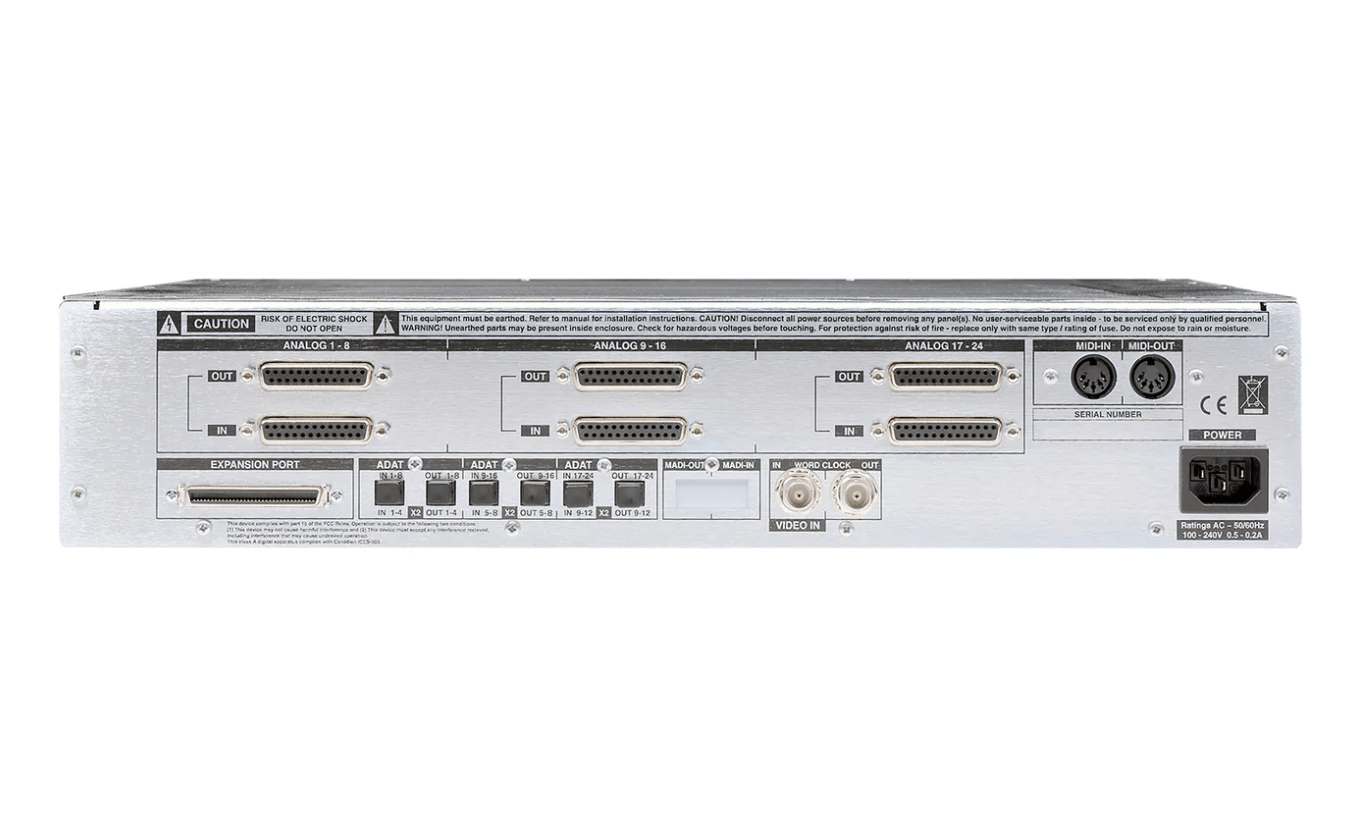

• Analog In: 3 x 25-pin D-sub (8-channels per connector)
• Analog Outputs:
  • 3 x 25-pin D-sub (8-channels per connector)
  • 1 x 1/4" TRS phone Headphone
• Digital Input Connectors:
  • 3 x 25-pin D-sub (shared with output)
  • 1 x MADI SC optical
• Digital Output Connectors:
  • 3 x 25-pin D-sub (shared with input)
  • 1 x MADI SC optical
• Word Clock: 2 x BNC I/O
• Other Connectors:
  • 2 x MIDI
  • 1 x MiniD 68 poles Expansion Bus
• Dynamic Range: Not specified by manufacturer
• Frequency Response: Not specified by manufacturer
• THD + N: Not specified by manufacturer
• Dimensions: 19 x 12.2 x 3.5" (483 x 310 x 88mm)
• Weight: 13.2 lbs. (6 kg)
• Specialties: In combination with a Soundscape Mixpander PCI card provides a powerful, highly flexible I/O solution for native PC-based audio workstations
