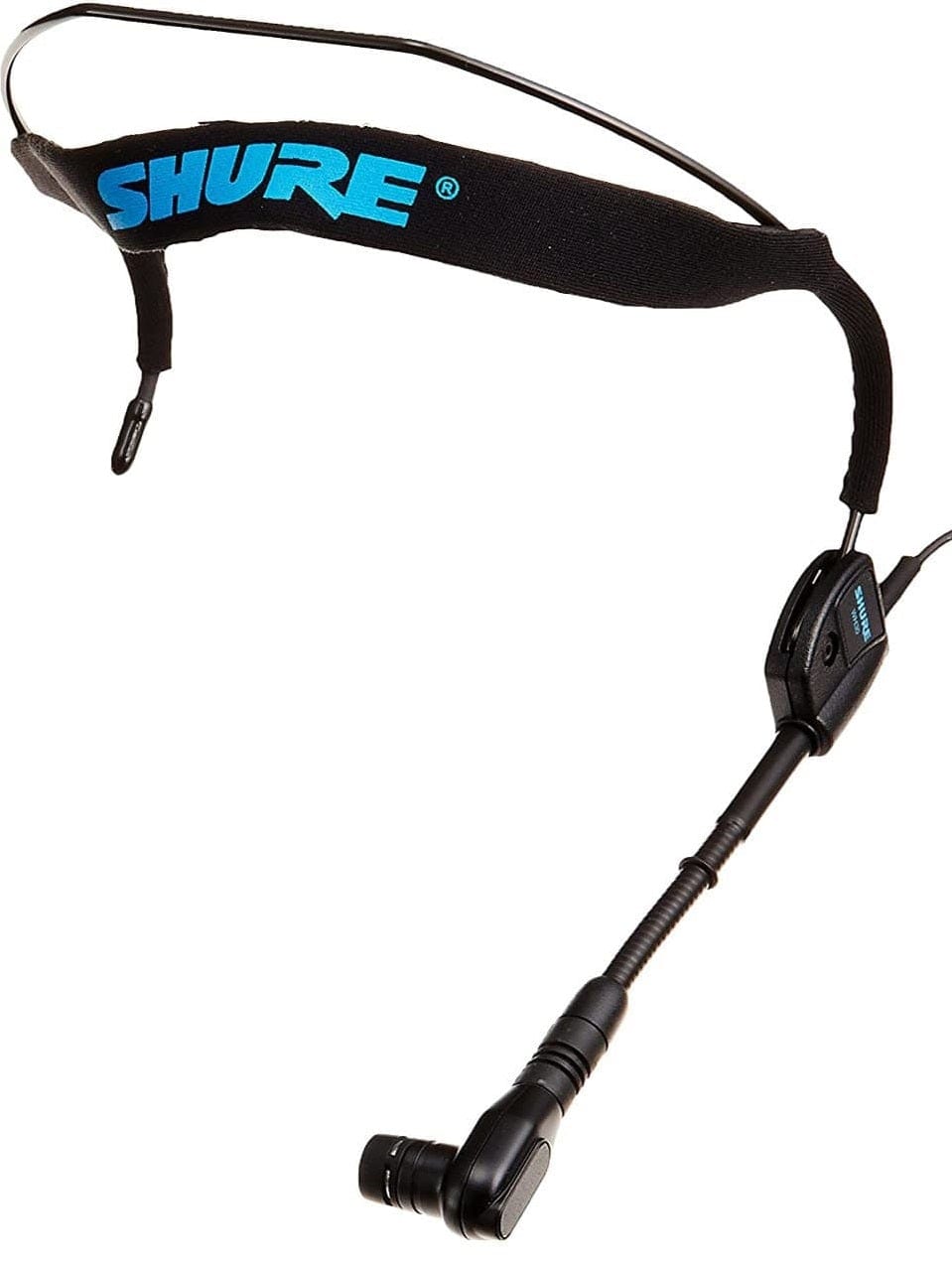

Shure WH30LEMO Condenser Microphone Headset for WH30
The Shure Model WH30 is a light yet rugged headset microphone. Designed for vocalists and instrument-playing vocalists, the WH30 utilizes a high quality electret-condenser cartridge suitable for all applications where mobility, comfort, low microphone-visibility, and high sound quality are required. Because of its cardioid (unidirectional) pickup pattern, the WH30 provides isolation from extraneous sound sources and high gain-before-feedback. The wireframe and gooseneck adjust to any head size and shape. An integrated elastic headband comfortably pads and secures the headset. The WH30 is supplied with two snap-on windscreens, clothing clip, storage bag and cable-management device.
Features:
- Smooth, natural frequency response comparable to professional condenser hand-held microphones
- Lightweight wireframe and headband adjust for a secure, comfortable fit
- Extra-strong, small-diameter microphone cable resists breakage
- Moisture-proof cartridge housing
- Sturdy gooseneck-boom holds mic securely in place
- lsolation shock mount for reduced handling noise
- Matte black finish for low visibility
- High input clipping level helps avoid overload distortion
- Low self-noise and high sound pressure level capability
- Reliable at temperature and humidity extremes
Specifications:
- Type:
- WH30TQG: Condenser, electret bias
- WH30XLR: Condenser, electret bias with integrated preamplifier
- Frequency Response: 40 to 20,000 Hz
- Polar Pattern: Unidirectional
- Output Impedance (at 1kHz):
- WH30TQG: 2400 Ω
- WH30XLR: Rated 150 Ω (actual) (Tolerates loads as low as 150 Ω with reduced clipping level)
- Output Level (at 1 kHz; 0 dB = 1 V/Pascal):
- WH30TQG: –55.5 dB (1.7 mV)
- WH30XLR: –54.5 dB (1.9 mV)
- Signal to noise ratio (ref. A-weighted noise): 63.0 dB at 94 dB SPL (IEC 651)
- Output Clipping Level (at 1000 Hz):
- WH30TQG: –22 dBV (0.08 V)
- WH30XLR:
- 2.5KΩ Load: –8 dBV (0.4V)
- 1 KΩ Load: –8 dBV (0.4V)
- Maximum SPL:
- WH30TQG: 130 dB
- WH30XLR:
- 2.5KΩ Load: 142 dB
- 1 KΩ Load: 142 dB
- Dynamic Range (max. SPL to A-weighted noise level):
- WH30TQG: 99 dB
- WH30XLR: 111 dB
- Output Noise (equivalent SPL): 31 dB (typical, A-weighted)
- Recommended Operating Voltage:
- WH30TQG: 5 VDC
- WH30XLR: 11-52 VDC Phantom power
- Polarity:
- WH30TQG: Positive sound pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1 (ground) on the mini TA4F connector.
- WH30XLR: Positive sound pressure on the diaphragm produces positive voltage on pin 2 relative to pin 3 of preamplifier output connector.
- Environmental Conditions:
- Operating Temperature –7° to 49° C (20° to 120° F)
- Storage Temperature –29° to 74° C (–20° to 165° F)
- Humidity: 0 to 95% (operating or storage)
- Cable: 1.2 m (4 ft.) two-conductor, shielded
- Cable Connector:
- LEMO Connector
- Net Weight:
- WH30TQG: Headset: 65 g (2.3 oz)
- WH30XLR:
- Headset and cord: 60 g (2.1 oz)
- Preamplifier: 99 g (3.5 oz)
- Type:
- WH30TQG: Condenser, electret bias
- WH30XLR: Condenser, electret bias with integrated preamplifier
- Frequency Response: 40 to 20,000 Hz
- Polar Pattern: Unidirectional
- Output Impedance (at 1kHz):
- WH30TQG: 2400 Ω
- WH30XLR: Rated 150 Ω (actual) (Tolerates loads as low as 150 Ω with reduced clipping level)
- Output Level (at 1 kHz; 0 dB = 1 V/Pascal):
- WH30TQG: –55.5 dB (1.7 mV)
- WH30XLR: –54.5 dB (1.9 mV)
- Signal to noise ratio (ref. A-weighted noise): 63.0 dB at 94 dB SPL (IEC 651)
- Output Clipping Level (at 1000 Hz):
- WH30TQG: –22 dBV (0.08 V)
- WH30XLR:
- 2.5KΩ Load: –8 dBV (0.4V)
- 1 KΩ Load: –8 dBV (0.4V)
- Maximum SPL:
- WH30TQG: 130 dB
- WH30XLR:
- 2.5KΩ Load: 142 dB
- 1 KΩ Load: 142 dB
- Dynamic Range (max. SPL to A-weighted noise level):
- WH30TQG: 99 dB
- WH30XLR: 111 dB
- Output Noise (equivalent SPL): 31 dB (typical, A-weighted)
- Recommended Operating Voltage:
- WH30TQG: 5 VDC
- WH30XLR: 11-52 VDC Phantom power
- Polarity:
- WH30TQG: Positive sound pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1 (ground) on the mini TA4F connector.
- WH30XLR: Positive sound pressure on the diaphragm produces positive voltage on pin 2 relative to pin 3 of preamplifier output connector.
- Environmental Conditions:
- Operating Temperature –7° to 49° C (20° to 120° F)
- Storage Temperature –29° to 74° C (–20° to 165° F)
- Humidity: 0 to 95% (operating or storage)
- Cable: 1.2 m (4 ft.) two-conductor, shielded
- Cable Connector:
- LEMO Connector
- LEMO Connector
- Net Weight:
- WH30TQG: Headset: 65 g (2.3 oz)
- WH30XLR:
- Headset and cord: 60 g (2.1 oz)
- Preamplifier: 99 g (3.5 oz)
