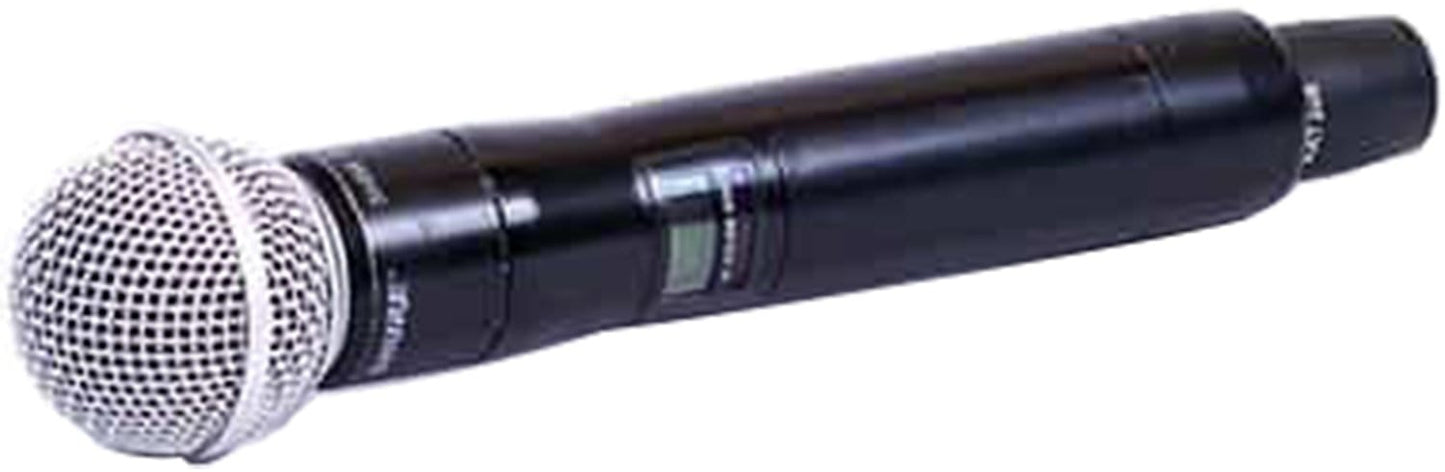

The AXT200 Handheld Frequency Diversity Transmitter is a rechargeable, remotely controllable handheld transmitter with Frequency Diversity for seamless, uninterrupted audio in even the most challenging RF environments. In addition to Frequency Diversity, the AXT200 delivers ultra-linear RF performance for more channels on-air and superb audio quality. Advanced power management supports extended battery life and highly accurate status metering. ShowLink™ Remote Control enables comprehensive real-time remote control of all transmitter parameters, including real-time frequency adjustments.

Features:

• Frequency Diversity enables simultaneous transmission on two independent frequencies to ensure seamless, uninterrupted audio for missioncritical transmitters. Single carrier mode is available if Frequency Diversity is not required.
• Ultra-linear RF performance enables more channels on-air
• IR Sync function automatically tunes transmitter to the receiver frequency
• Comprehensive real-time remote control of all transmitter parameters when a Linked transmitter is within range of a ShowLink Access Point
• Shure lithium-ion rechargeable battery delivers up to 9 hours of runtime from a single charge
• Advanced control menu to adjust frequency and audio settings from the transmitter
• 42 dB of adjustable gain for optimal audio quality
• Lockable user interface prevents accidental or inadvertent changes to controls once settings are made

Specifications:

• RF Carrier Frequency Range: 470–814 MHz Note: varies by region
• Working Range:
  • Under typical conditions: 150 m (500 ft)
  • Line of sight, outdoors for a single system: 500 m (1600 ft)
  • Note: Actual range depends on RF signal absorption, reflection and interference
• Audio Frequency Response: 40 – 18 kHz (+1, -3 dB) Note: dependent on microphone type
• RF Tuning Step Size: 25 kHz
• Modulation (45 kHz max. deviation): FM, Audio Reference Companding with pre- and de-emphasis
• Dynamic Range: >113 dB, A-weighted (referenced at 0 dB setting on the transmitter)
• Total Harmonic Distortion (45 kHz max. deviation): <0.3%, A-weighted, typical
• System Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
• Gain Adjustment Range: -10 to +32 dB (in 1 dB steps)
• Battery Type: Shure AXT920/920SL (Rechargeable Li-Ion)
• Battery Life: Up to 9 hours (low power mode, Single Carrier Mode)
• Weight: 395 g (13.9 oz.), with batteries
• Housing: Machined aluminum
• Operating Temperature Range:
  • -18°C (0°F) to 63°C (145°F)
  • Note: Battery characteristics may limit this range.
• Storage Temperature Range:
  • -29°C (-20°F) to 74°C (165°F)
  • Note: Battery characteristics may limit this range.
• Audio Input:
  • Configuration: Unbalanced
  • Impedance: >30 kΩ
  • Maximum Input Level(1 kHz at 1% THD):
    • Gain Position:
      • −10 to +11 dB: 5.5 dBu
      • +12 to +32 dB: −6.5 dBu
• RF Output:
  • Connector: SMA (UHF and ShowLink); Shell=Ground, Center=Signal
  • Antenna Type: Integrated Dual Band Helical
  • Power: See Frequency Range and Ouput Power table
  • Mode:
    • Frequency Diversity: Dual Carrier
    • Single Carrier: Single Carrier
  • Impedance: 50 Ω
• ShowLink
  • Network Type: IEEE 802.15.4
  • Frequency Range: 2.40 to 2.4835 GHz (16 Channels)
  • RF Output Power: 10 dBm (ERP)
