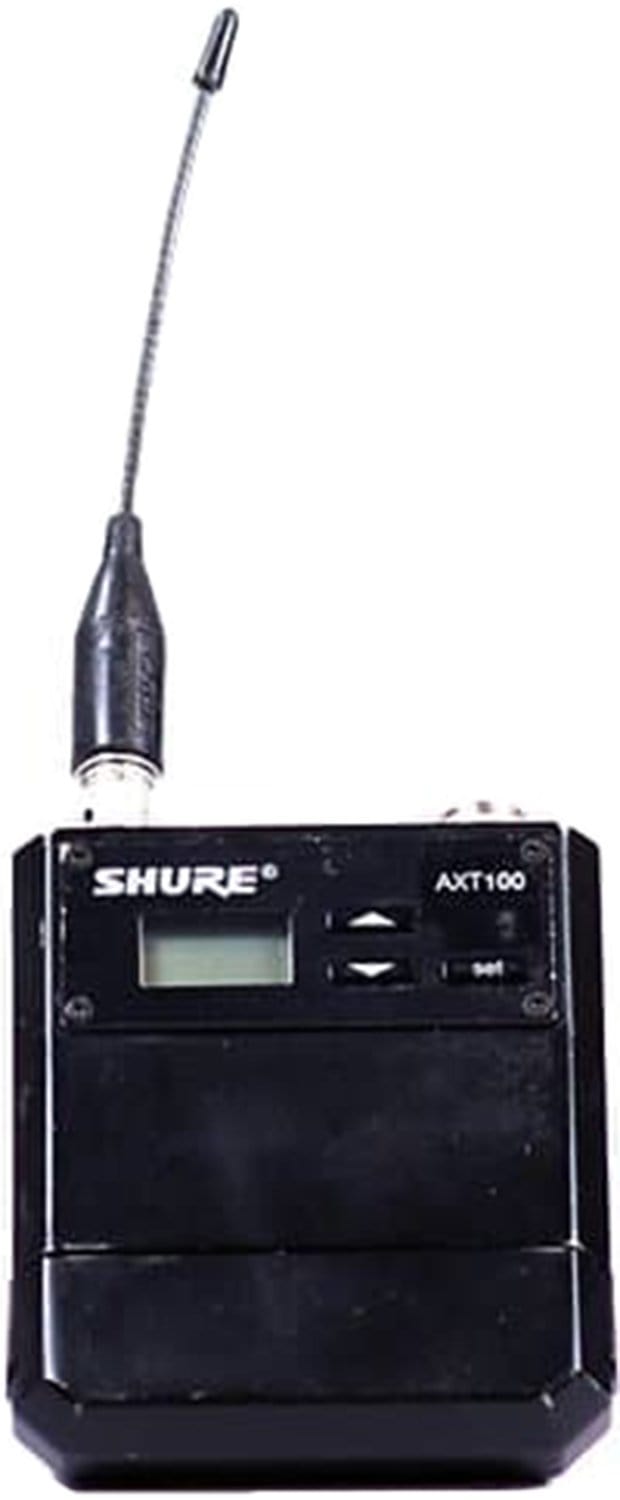

Shure AXT100-J5 Beltpack Transmitter J5 578-638MHz
The AXT100 transmitter delivers superior audio performance in a compact, lightweight package. Efficient, ultra-linear RF performance maximizes the number of channels on-air in crowded RF environments. Advanced power management provides extended, rechargeable battery life and highly accurate status metering. ShowLink™ Remote Control enables comprehensive real-time remote control of all transmitter parameters, including real-time frequency adjustments.
Features:
- Ultra-linear RF performance places more channels on-air
- IR Sync function automatically tunes transmitter to the receiver frequency
- Comprehensive real-time remote control of all transmitter parameters when a Linked transmitter is within range of a ShowLink Access Point
- Shure lithium-ion rechargeable battery delivers up to 8 hours of runtime from a single charge
- Advanced control menu to adjust frequency and audio settings from the transmitter
- 50 dB of adjustable gain for optimal audio quality
- Lockable user interface prevents accidental or inadvertent changes to controls once settings are made
- Talk Switch mode for remote push-button audio routing of AXT400 XLR and TRS outputs
- Compatible with all Shure wireless microphones that have a TA4F connector.
- LEMO connector version (AXT100LEMO3) available for use with LEMO connector microphones
Specifications:
- AXT100 Bodypack Transmitter
- RF Carrier Frequency Range: 470–814 MHz(Note: varies by region)
- Working Range:
- Under typical conditions:150 m (500 ft)
- Line of Sight, outdoors for a single system:500 m (1600 ft)
- Note: Actual range depends on RF signal absorption, reflection and interference.
- Audio Frequency Response: 40 Hz – 18 kHz (+1, -3 dB)(Note: Dependent on microphone type)
- RF Tuning Step Size: 25 kHz
- Modulation:
- 45 kHz max. deviation:
- FM, Audio Reference Companding with pre- and de-emphasis
- Signal-to-Noise Ratio:
- A-weighted, 1% THD, referenced at 0 dB setting on transmitter: >113 dB
- Total Harmonic Distortion:
- 45 kHz max. deviation: <0.3%, A-weighted, typical
- System Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
- Gain Adjustment Range: -10 to +40 dB (in 1 dB steps)
- Battery Type: Shure AXT910 (Rechargeable Li-Ion)
- Battery Life: Up to 8 hours (low power mode)
- Dimensions: 77 mm x 66 mm x 17 mm (3.0 in. x 2.6 in. x 0.7 in.) H x W x D, with AXT910 battery
- Weight: 146.6 g (5.2 oz.), with batteries
- Housing: Cast aluminum
- Operating Temperature Range: -18°C (0°F) to 63°C (145°F)(Note: Battery characteristics may limit this range.)
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)(Note: Battery characteristics may limit this range.)
- Audio Input
- Connector: 4-Pin male mini connector (TA4M) / 3-Pin male mini connector (LEMO)
- Configuration: Unbalanced
- Impedance: 1 MΩ
- Maximum Input Level:
- 1 kHz at 1% THD
- Input Gain Setting:
- −10 to +9 dB: 12.5 dBu
- +10 to +19 dB: −2.5 dBu
- +20 to +40 dB: −7.5 dBu
- RF Output
- Connector: SMA (UHF and ShowLink); Shell=Ground, Center=Signal
- Antenna Type: AXT642 Bodypack Dual Band Antenna (integrated helical and 1/4 wave)
- Impedance: 50 Ω
- ShowLink
- Network Type: IEEE 802.15.4
- Frequency Range: 2.40 to 2.4835 GHz (16 Channels)
- RF Output Power: 10 dBm (ERP)
- Frequency Bands and Transmitter RF Power:
- Band: J5
- Frequency Range (MHz): 578 to 638
- RF Power (mW): 10/100
