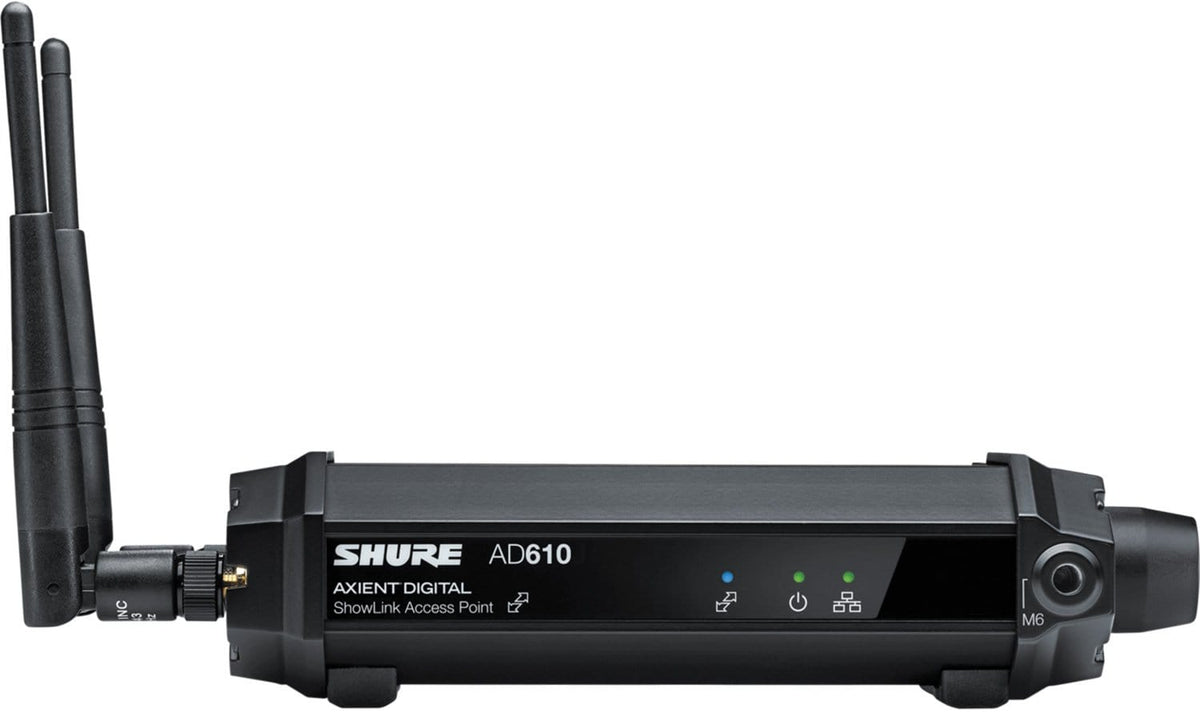

The AD610 ShowLink access point enables real-time remote control of all ShowLink-enabled Axient™ devices, including both digital and analog models. The access point allows comprehensive management of device parameters from the receiver or Wireless Workbench® using 2.4 GHz wireless network communication. All parameter changes occur without interruption to the performer. Multiple access points can extend the operational range or increase the number of devices supported on the ShowLink network. The access point also features true diversity antenna inputs.

Features:

• Real-time wireless remote control of up to 24 devices per ShowLink access point
• New RF design and true diversity antenna scheme for improved link performance
• Easy device authentication—Recognizes linked devices upon IR sync
• Automatic hand-offs between multiple access points extend operating range
• Automated channel selection—Independently scans 2.4 GHz frequency range and determines best channel for use
• Automatic frequency agility—Moves a ShowLink network to the best available 2.4 GHz channel in the event of signal degradation
• Wireless Workbench software supports networked control of all device functions and provides a ShowLink plot for viewing 2.4 GHz signal levels
• Receives power via Power over Ethernet (PoE) network connection or from an external power supply
• Versatile mounting options—Fits microphone stand adapters and has built-in ¼"-20 and M6 x 1.0 threading for installation
• Backwards compatible with Axient analog transmitters and receiver

Specifications:

• General:
  • Antenna Type: 2 Omnidirectional 2.4 GHz
  • Capacity: 24 Axient ShowLink devices (AXT or ADX models)
  • Mounting Type: WA371 Mic Clip or 1/4-20 thread mount
  • Operating Temperature Range: -18°C (0°F) to 60°C (140°F)
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
  • Dimensions: 190 mm x 102 mm x 47 mm (7.48 in. x 4 in. x 1.85 in.) H x W x D, without antennas
  • Weight: 464 g (16.3 oz.), without antennas
  • Housing: Extruded Aluminum
  • Power Requirements:
    • Power over Ethernet (PoE) Class 1: 36 to 57 V DC/V AC
    • External Power Supply (if PoE is unavailable): 15 V DC (600 mA), double insulated
  • Ingress Protection Rating: IPX3
• ShowLink:
  • Network Type: IEEE 802.15.4
  • Frequency Range: 2.40 to 2.4835 GHz (16 channels)
  • RF Output Power:
    • 10 dBm
    • ERP / 20 dBm
    • ERP (dependent on applicable country regulations)
  • Working Range:
  • Under typical conditions: 150 m ( 500 ft)
  • Line of Sight, outdoors for a single system: 500 m ( 1600 ft)
• Antenna Connection:

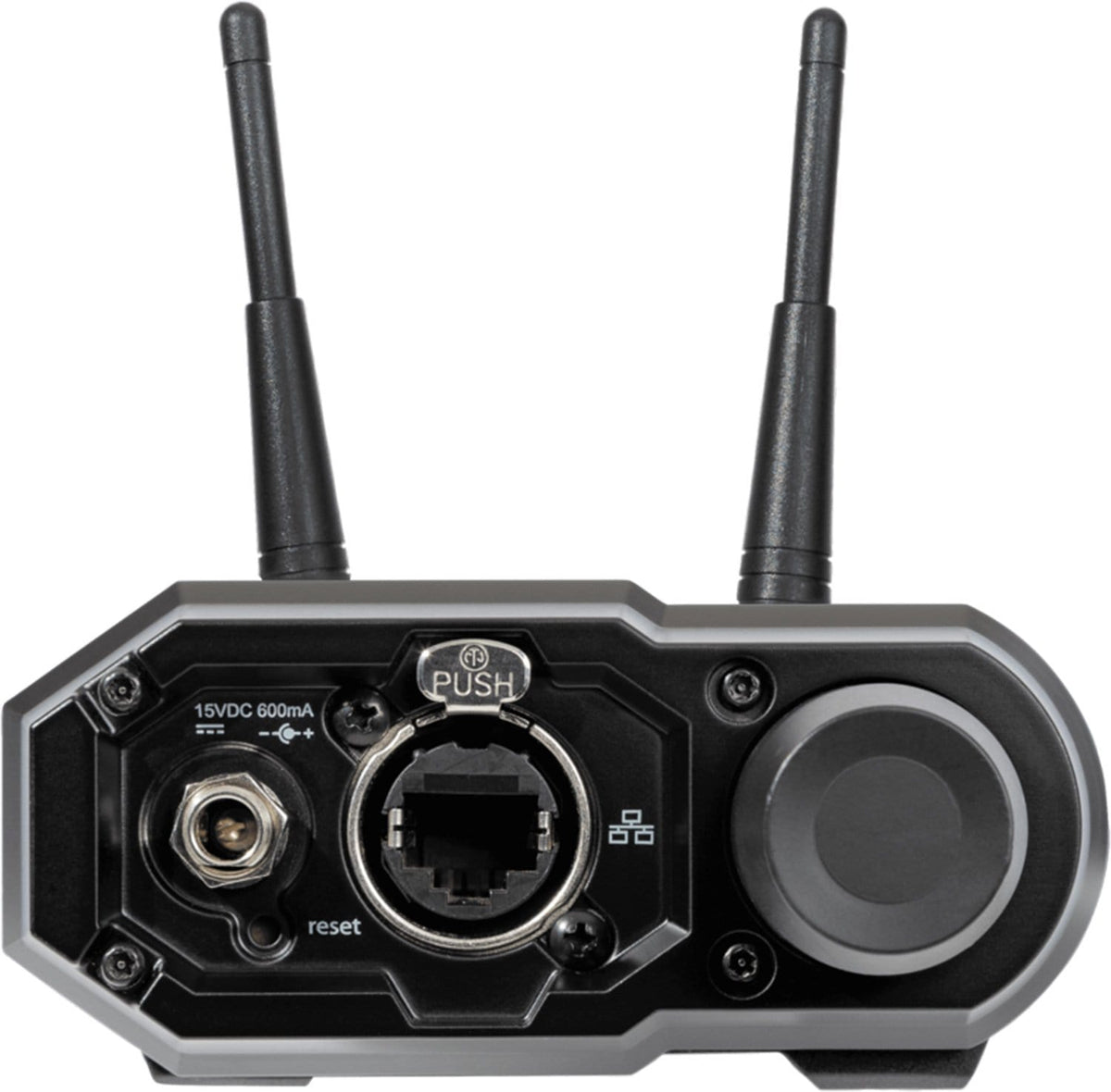

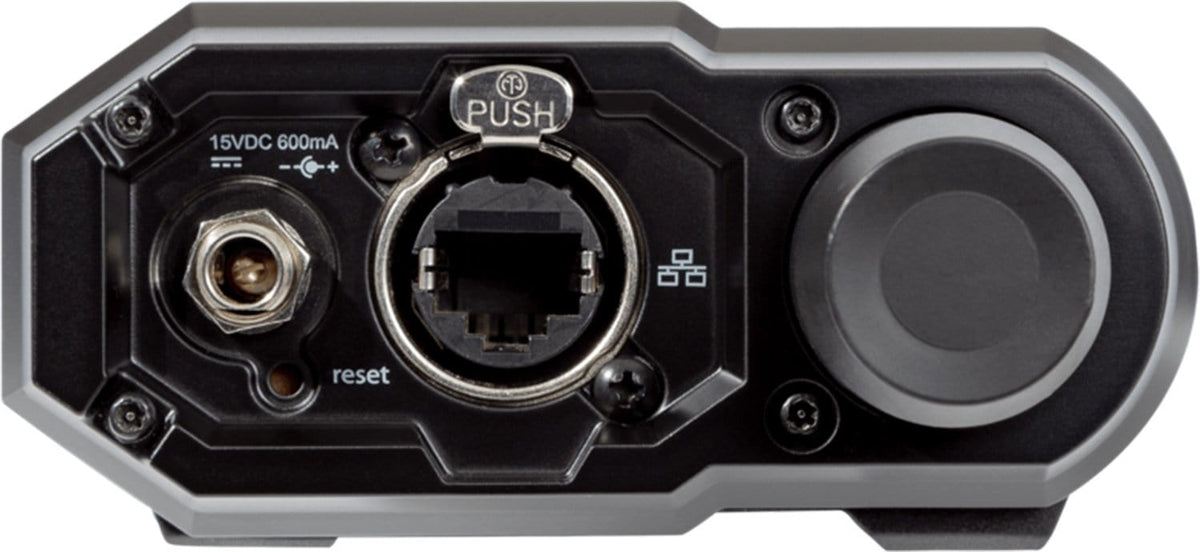

  • Connectors: 2 SMA (Shell=Ground, Center=Signal)
  • Impedance: 50 Ω
• Scanning Radio:
  • Scanner RF Sensitivity: -106 dBm, typical (integrated antenna)
• Networking:
  • Network Interface: Ethernet 10/100 Mbps
  • Network Addressing Capability: DHCP or Manual IP address (configurable using Wireless Workbench)
