SGM XC-5 LED RGB Strobe

SGM XC-5 LED RGB Strobe

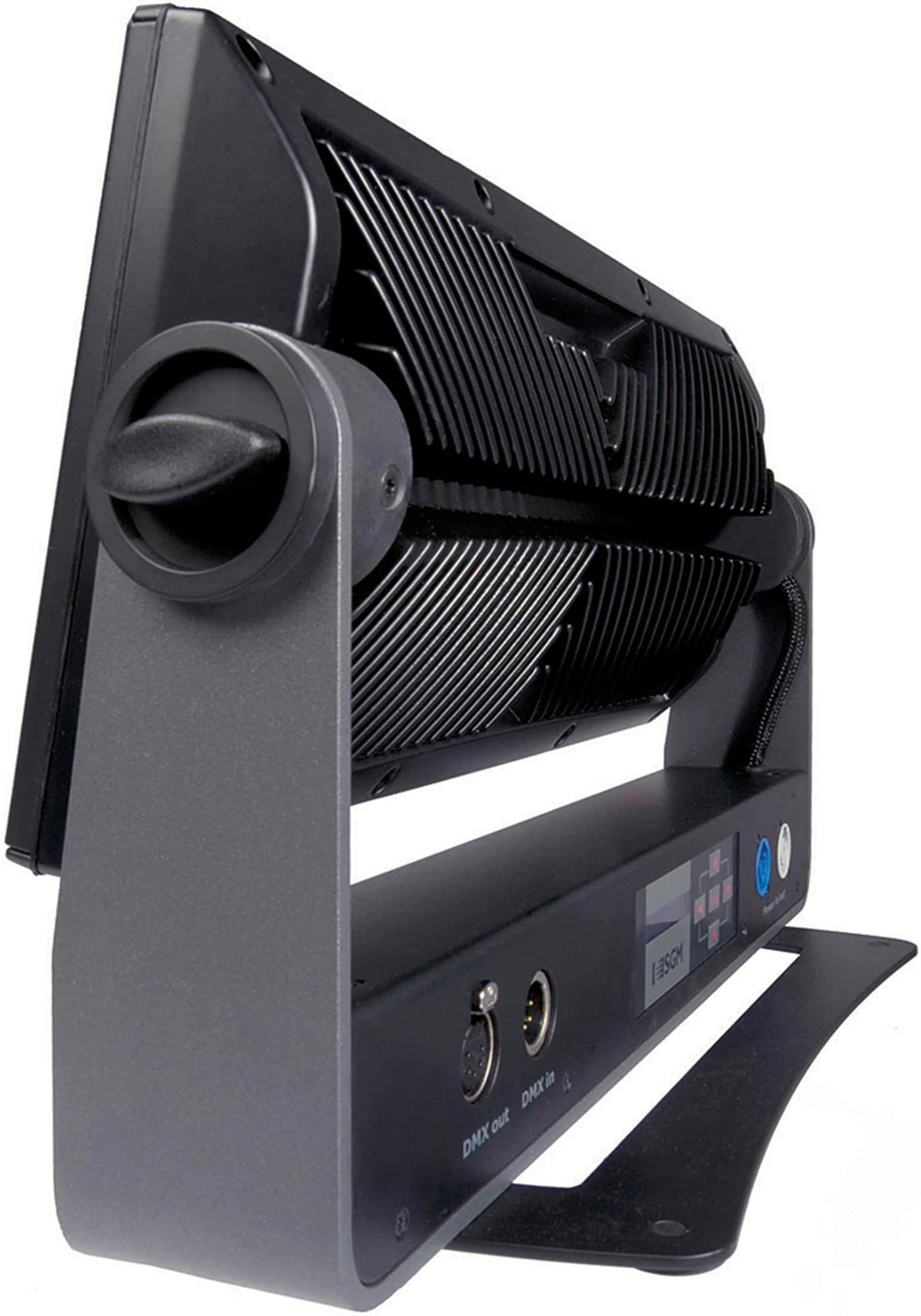

After being featured in some of the most important tours worldwide for many years, the XC-5 has become a “classic”. It was the first 1 LED alternative to traditional xenon-lamp strobes, but adding RGB color mixing. The high-performance rectangular heat sink of the XC-5 allows this unit to output an impressive performance with only 360W power consumption. It is a robust, state-of-the-art LED fixture that creates unique color effects never delivered before by a strobe.

Features:

• Dimming: Electronic
• Strobe: Ultra-high-speed strobe effects
• Tilt: 0 - 110°

Specifications:

• Optical Data
  • LED expected lifetime: 50,000 hours
  • Lens: 120° fixed
  • Lightsource: 1,080 x RGB LEDs
• Physical
  • Color options: Black - RAL 9004
  • IP class: IP20
  • Lens material: Tempered glass front
  • Material: Aluminium
  • Net dimensions: 500 x 270 x 90 mm
  • Net dimensions inches: 19.7 x 10.6 x 3.5 inches
  • Net weight: 6.7 kg (14.8 lbs)
• Electrical
  • AC Power, nominal: 208 - 240V 50/60Hz
  • Max Inrush Current: 22 A
  • Max power consumption: 360 W
  • Peak current consumption: 21 A
  • Typical current consumption: 4 A
• Programming and Control
  • Cabled DMX: 5 pin XLR input/output
  • DMX channels: 1, 3, 4, 6 & 7
  • DMX modes: 7
  • Protocol: USITT DMX512A
  • Setting and addressing:
    • Standalone mode
    • OLED graphical display / 5 buttons
• Connections
  • DMX data in/out:
    • IP65 XLR 5-pin connector, Female
    • IP65 XLR 5-pin connector, Male
  • Power: Power input connector & link-thru
• Installation
  • Mounting point: 2 quarter-turn locking points for one Omega bracket
  • Orientation: Any
  • Rigging possibilities: Floor stand (included) or hanging (Omega clamps included)
  • Safety features:
    • Bottom mount for safety wire
    • Minimum distance to combutible materials: 0.3 meter (11 in).
• Thermal
  • Cooling: Passive
  • Humidity (max.): 95 %
  • Temperature range, Operating: -40°C to 50°C
  • Temperature range, Start-up: -20°C to 50°C
  • Temperature range, Storage: -40°C to 80°C
  • Total Heat Dissipation, Max Power: 1228.32 BPU per hour
• Included items
  • Included items:
    • Mounting bracket (incl. screws)
    • 2 Omega bracket with quater-turn fasteners
    • 2 m power cable
• Conforms To
  • CE - 2014/30/EU: EMC Directive:
    • EN 55103-1
    • EN 55103-2
    • EN 61000-3-2
    • EN 61000-3-3
  • CE - 2014/35/EU: Low Voltage Directive:
    • EN 62471
    • EN 60950-1
  • RoHS2 Directive: 2011/65/EU
