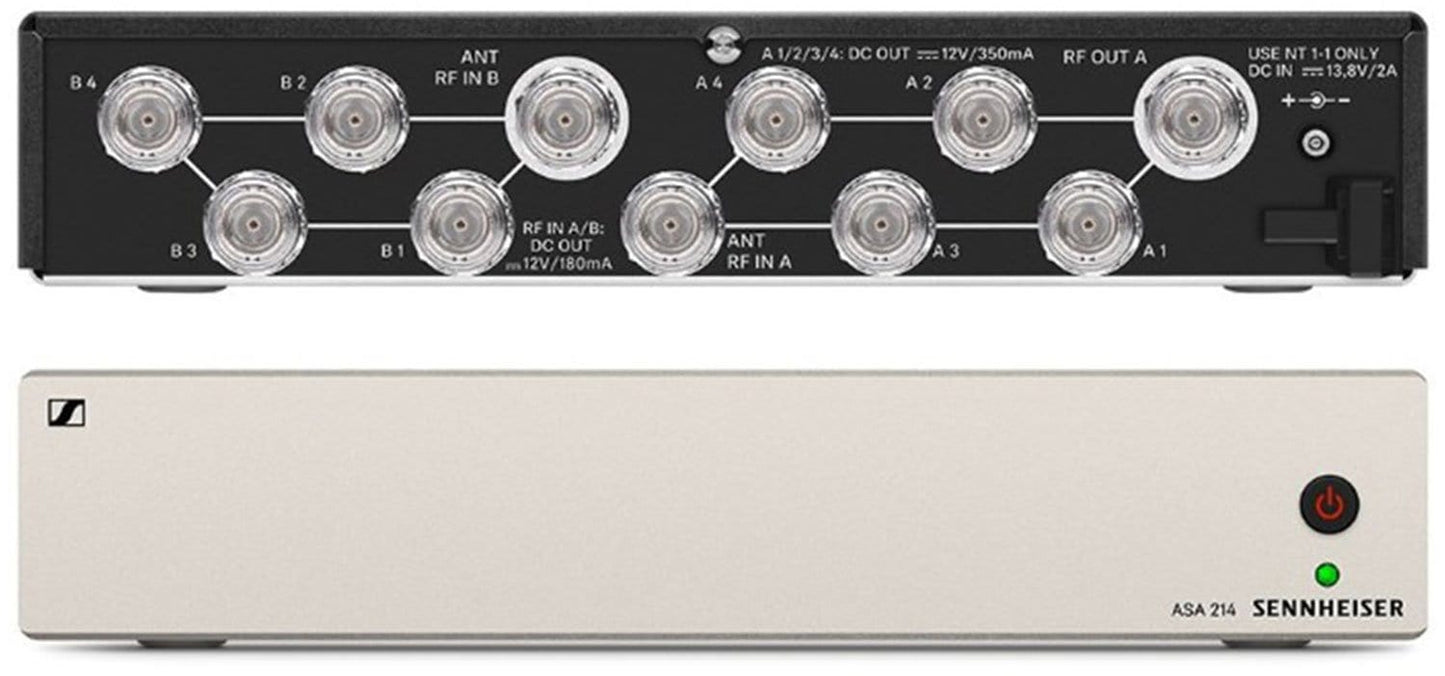

Sennheiser ASA214-UHF Antenna Splitter for EW G
The ASA 214 active antenna splitter is built in a full metal housing and ships with 8 BNC cables included. The splitter runs up to 4 receivers of the ew series with one antenna. The UHF-Version includes the NT 1-1 power supply with EU, UK and US adapters, while the ASA 214-1G8 includes the NT 1-1 with EU, UK and AU adapters.
Features:
- Compatible with G4 and G3 systems
- Power supply via BNC cables for EM 300-500 / EM 100 receivers. No additional power supply needed
- Up to 4 true diversity receivers can be used with two external antennas
- Full metal housing
Specifications:
- Impedance: 50 Ω
- Dimensions: approx. 212 x 168 x 43 mm
- Weight: approx. 1090 g
- Power consumption: max. 2.0 A with connected receivers and boosters
- Storage temperature: -20°C - +70°C
- Operating temperature : -10°C - +55°C
- Power supply: 13,8 V DC (with NT 1-1 mains unit)
- Antenna connector: BNC
- Frequency range: 470-870 MHz (UHF), 1785-1800 MHz (1G8)
- Operating relative humidity: 5 - 95 %
