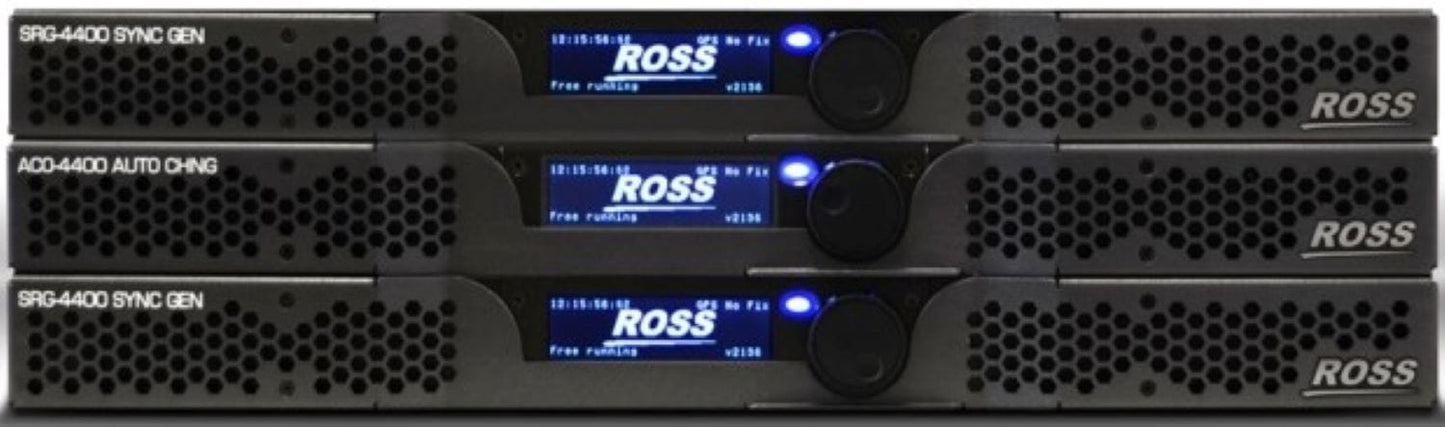

Ross SRG4400 Master Reference and Signal Test Generator
The SRG-4400 is a 1RU state of the art master reference and 3G/HD/SD SDI test signal generator designed to exacting specifications. The SRG-4400 is the ideal choice for supplying all of the required reference timing and test signals needed in today’s complex broadcast facilities. It provides all the reference (Color Black, Tri-Level Sync), timing and test signals, including LTC and VITC, together with analog audio, AES audio and Wordclock/DARS, needed to satisfy any application in PAL, NTSC, SD SDI, HD SDI, & 3G SDI and mixed standard installations.
Features:
- 4 independent pairs of Black-Burst / Tri-level Sync Reference output
- 2 independent pairs of 3G/ HD/ SD SDI Black and Test Pattern Outputs (with embedded audio)
- AES digital audio outputs
- Composite analog video Test and Black outputs
- DARS (Digital Audio Reference) outputs
- LTC Outputs
- Word Clock outputs
- NTP Time Synchronization
- GPS Time Synchronization
- IP Based Control and Monitoring via DashBoard
Specifications:
- Rack Units (Height): 1
- Input Impedance: 75 ohm
- Output Impedance: 75 ohm
- Operating Temperature (Maximum): 104 F
- Operating Temperature (Minimum): 32 F
- Signal Generator Type - Audio
- Signal Generator Type - Video
- Tester Format - Standalone Component (Box)
- Rack Units (Height): 1
- Input Impedance: 75 ohm
- Output Impedance: 75 ohm
- Operating Temperature (Maximum): 104 F
- Operating Temperature (Minimum): 32 F
- Signal Generator Type - Audio
- Signal Generator Type - Video
- Tester Format - Standalone Component (Box)
