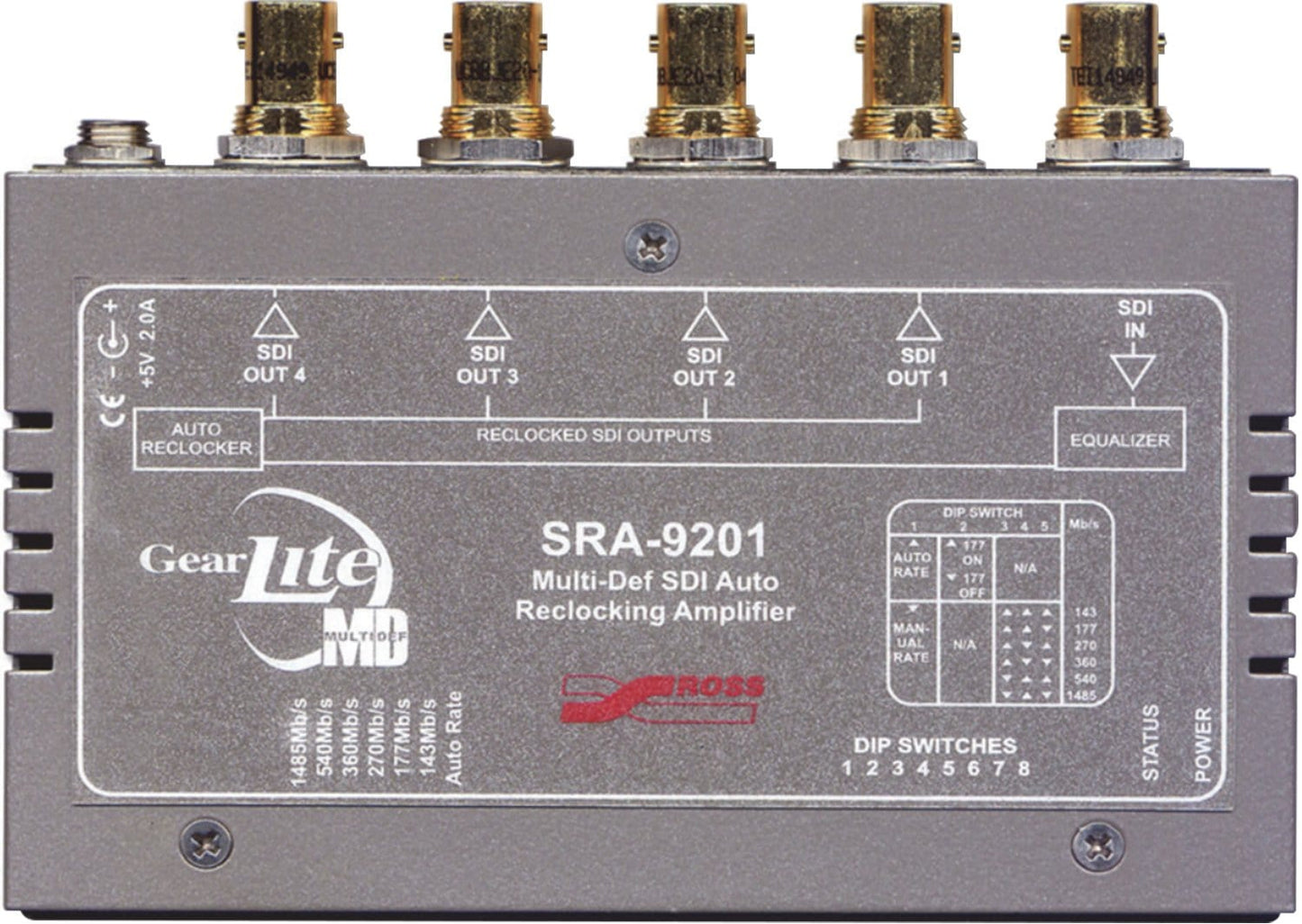

Ross SRA9201 Multi-Definition SDI Auto-Reclocking Amplifier

Ross SRA9201 Multi-Definition SDI Auto-Reclocking Amplifier

The SRA-9201 is a multi-definition SDI distribution amplifier, capable of equalizing and reclocking all common serial digital signals. SDI distribution amplifier for all SDI signals up to 1.485Gb/s. With support for both standard-definition and high-definition signals, the SRA-9201 is the ideal universal SDI distribution amplifier. The SRA-9201 automatically equalizes up to 305m (1,000 ft.) of Belden 1694A cable at 270Mb/s, and up to 100m (325 ft.) of 1694A cable at 1.485Gb/s rates. The amplifier automatically detects the input standard, with automatic locking to all common data rates from 143Mb/s to 1.485Gb/s, including 143, 177, 270, 360, 540, and 1.485Gb/s. The SRA-9201 can also be forced to a single data rate. The front panel of the SRA-9201 provides visual performance indicators which identify the incoming SDI signal data rate. A STATUS indicator identifies signal presence and reclocking status. The SRA-9201 is supplied with a universal power adapter and line cord suitable for the country of use. Various mounting options are included that allow a wide range of installation choices.

Features:

• Accepts all SDI signals from 143Mb/s to 1.485Gb/s

• Auto or manual data rate selection

• SDI input is equalized up to 305m (1,000 ft.) of input cable at 270Mb/s or up to 100m (325 ft.) at 1.485Gb/s

• 4 reclocked SDI outputs

• Small brick form factor

• 5V universal adapter with locking DC connector

• Separate power and status LEDs

Specifications:

• Depth: 1 in
• Height: 4 in
• Width: 5 in
• DC Voltage: 5 Volts
• Product Weight: 0.75 lbs.
• Warranty (Length/Type): 3 Years
• Number of Inputs: 1
• Number of Outputs: 4
• Operating Temperature (Maximum): 104 F
• Operating Temperature (Minimum): 68 F
• DA Audio Input - SDI (Embedded)
• DA Audio Output - SDI (Embedded)
