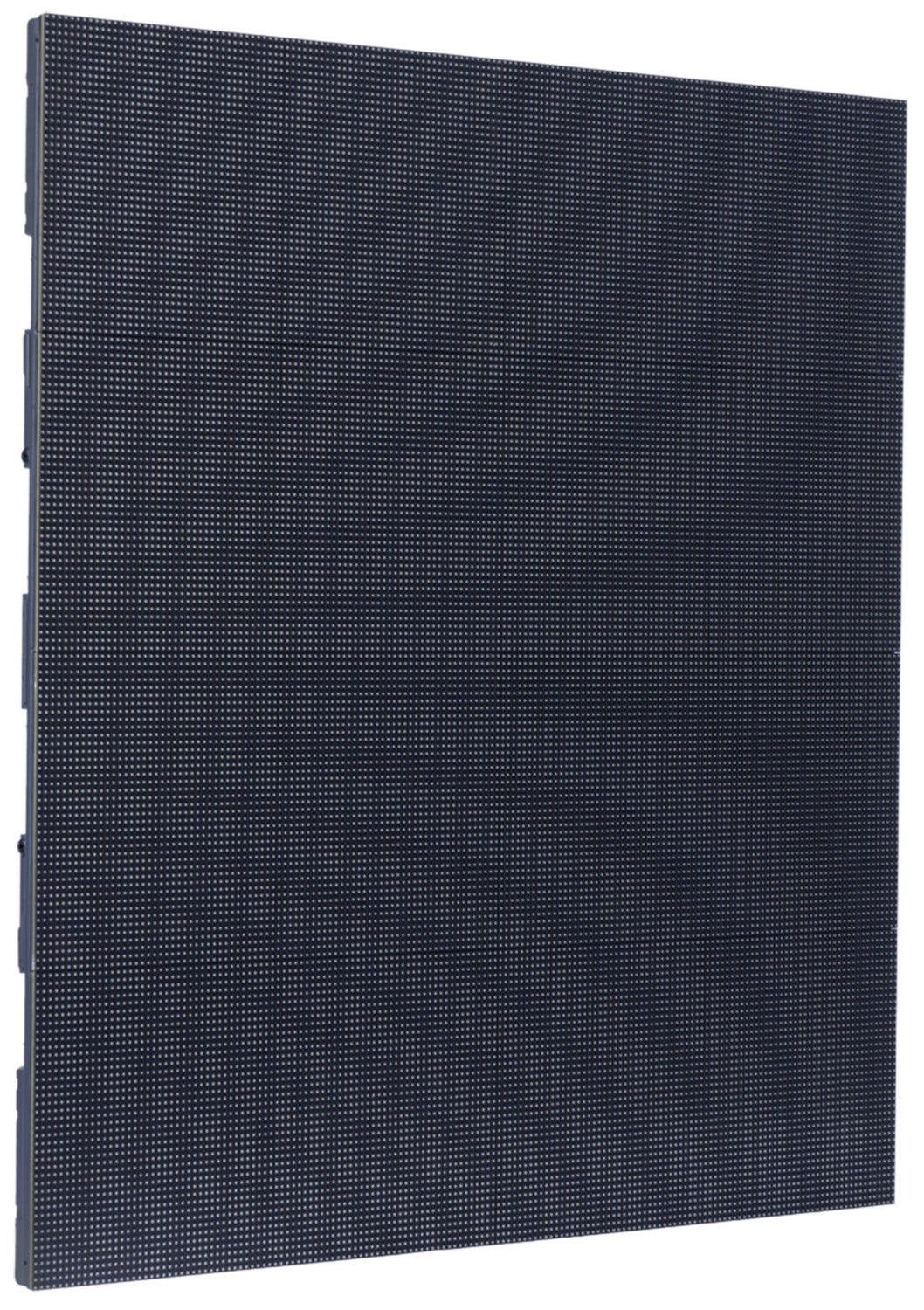

Excellent brightness, high quality black or white LED and a low selfweight make the Carbon series LED panels the perfect solution for touring, sports or events applications, where large videowalls need to be built quickly. The series comprises of the CB8 (outdoor), CB5 (outdoor) and CB3 (indoor). Clever accessories, like hanging and stacking options, touring frames and transport dollies complete the Carbon series.

Specs

Pixel Pitch: 3.75mm

LED Configuration: SMD 2020 Black

Max Brightness Calibrated: 1500nits

Panel Dimension:
600mm x
1200mm x
77mm
23.6” x
47.2” x 3”

Panel Resolution (H x V): 160 x 320

Weight Per Panel: 13.2kg | 29.1lbs

Power Consumption Max /Average: 540W / 270W

BTU Max/Average: 1840 / 850

Transparency: Solid

Serviceability: Rear

Curving (Concave & Convex):
Concave 15° ~
Convex 10°

Viewing Angle Vertical: 140°

Viewing Angle Horizontal: 140°

Refresh Rate: 3840Hz

Gray Scale: 14bit

Operational Temp/Humidity:
-20°C ~ 45°C, 10% ~ 90% RH
-4°F ~ 113°F, 10% ~ 90% RH

IP Rating: IP40

Certifications:
CE, ETL,
FCC, ROHS

Scan Ratio: 1/16

Max. Hanging: 12 panels

Max. Stacking: 5 panels
