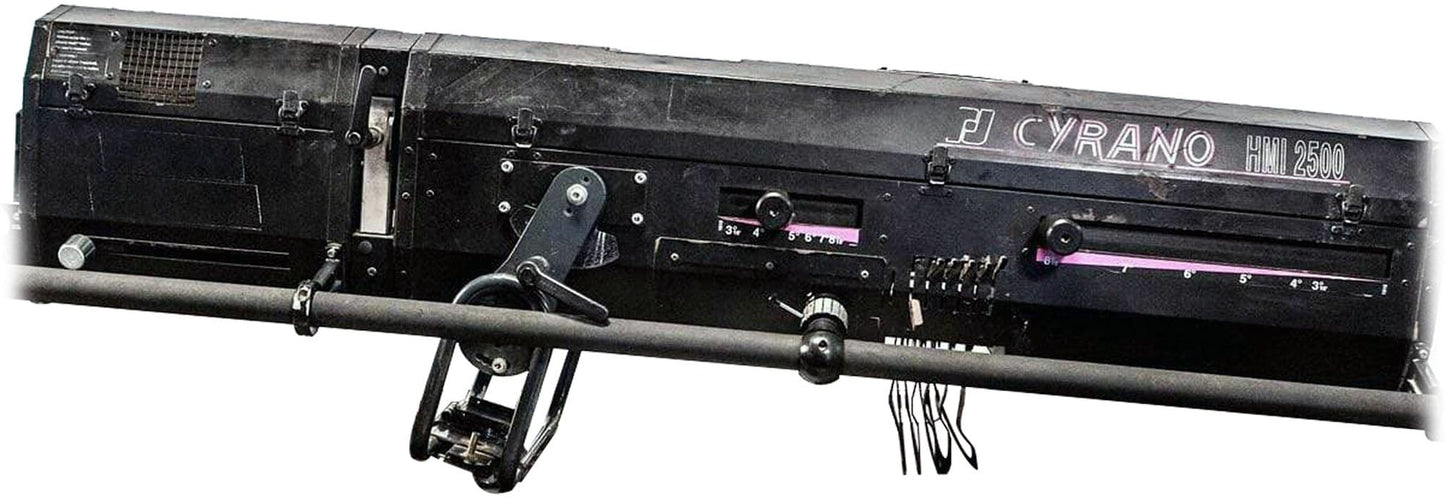

Robert Juliat CYRANO Long Throw Arc Followspot

Robert Juliat CYRANO Long Throw Arc Followspot

The narrower beam angle makes it perfect for the really long throw distances found in the largest theatres and stadia while its glass progressive frost filter and dark blue dichroic filter give even more subtle design possibilities. The progressive frost filter, like the motorised dimmer shutter and the lamp on/off function, can be DMX-controlled for perfect synchronisation. Its unique dimmer shutter gives Cyrano a superb dimming ability – surpassing even that of Aramis – making it indispensable for opera houses and large TV shows.

Features:

• Fully closing iris cassette: removable for fast, easy replacement; protective backplate for extended lifespan
• Gobo holder: glass and metal gobos
• Ergonomic dimmer control: one-handed dim, pan and tilt
• Smooth dimmer shutter: retains flat beam and colour temperature when dimming
• Progressive frost filter : on flip lever for quick soft-edge beam effect
• Horizontal chopper (optional): for masking control in TV studios and wide stages
• Individually removable colour frame: gels replaced easily while colour cassette remains in place
• Colour changer: 6-way, self-cancelling boomerang colour-changer
• Colour correction (CTO), dark blue dichroic and spare filter frame on flip levers
• Fast-locking focus handle: for quick and easy change of beam size
• Easy focus reference: graduated scale on side of the unit; fast and easy refocusing
• Adjustable yoke: for optimum overhead positioning
• Easy-to-balance counterweight: steady movement, even at long distances
• Stand: perfectly weighted for maximum stability with smooth rotation for optimum performance. Easy set up; triple safety system for extra security

Specifications:

• Source
  • Lamp type: Discharge
  • Power: 2500 W
  • Socket: SFa 21
  • Hot re-strike: yes
• Optics
  • Characteristics
    • Type: Zoom
    • Beam range: 3° to 8°
    • Focal length: 393 - 1050 mm
  • Gel filter
    • Standard size: 210 mm (8.3 in)
    • Shape: Circle
  • Gobo
    • Size: B
    • Material: Metal Glass
• Photometrics
  • Optics @ 3°:
    • Beam intensity: 7 520 000 cd
  • Optics @ 8°:
    • Beam intensity: 1 800 000 cd
• Dimensions and weight
  • Unit:
    • Weight: 65 kg (143 lbs
    • Height:
      • H= 505 mm (19.9 in)
      • H1= 320 mm (12.6 in)
      • H3= 375 mm (14.8 in)
    • Length:
      • L= 1655 mm (65.2 in)
      • L1= 720 mm (28.3 in)
      • L2= 935 mm (36.8 in)
    • Width:
      • W= 550 mm (21.7 in)
      • W1= 300 mm (11.8 in)
    • Yoke:
      • Y= 350 mm (13.8 in)
    • Tilt:
      • TU= 45°
      • TD= 60°
  • PSU:
    • Width: W= 450 mm (17.7 in)
    • Height: H= 185 mm (7.3 in)
    • Length: L= 345 mm (13.6 in)
    • Weight: 31 Kg (68.2 lbs)
• Shipping
  • Weight: 150 kg (330 lbs)
  • Volume: 1.11 m3 (39.02 ft3)
• Construction
  • Housing: Steel sheet - Aluminium
  • Colour: Black
  • Cooling: Low noise fan
  • Maximum ambient temperature (Ta): 40°C (104°F)
  • Maximum case temperature (Tc): 130°C (266°F)
  • Total heat dissipation: 10 581 BTU/h
  • Ingress Protection (IP) rating: IP20
• Acoustics
  • Noise level: < 53,7 dB(A)
  • PSU housing: Steel sheet - Aluminium
  • PSU colour: Black
  • PSU cooling: Fans
  • PSU maximum ambient temperature (Ta): 40°C (104°F)
  • PSU maximum case temperature (Tc): 70°C (158°F)
• Electrical compatibility
  • 220/230 V - 50 Hz
  • 245 V - 50 Hz
  • 208 V - 60 Hz
  • 220/230 V - 60 Hz
• Power input
  • Type: attached power cord
  • Cable: HO7RNF 3G4
  • Length: 3 m (9.8 ft)
  • Power connector: 32A blue 2P+E 6h IEC60309(CEE 32)
• Power Supply Unit
  • PSU: Separate - Magnetic PSU
  • Lighting unit / PSU cable: Removable cable - length: 3 m (9,8 ft) Type: 18G1,5 H07RNF with 16x16A+E Harting Han® connectors
  • Maximum distance between lighting unit and PSU: 25 m (82 ft)
  • Control: Local
  • Protection: Mains: 25A 2P2D - C curve breaker / Electronic: 1A 1P1D - C curve breaker / Auxiliary: 6A 2P2D - C curve breaker
