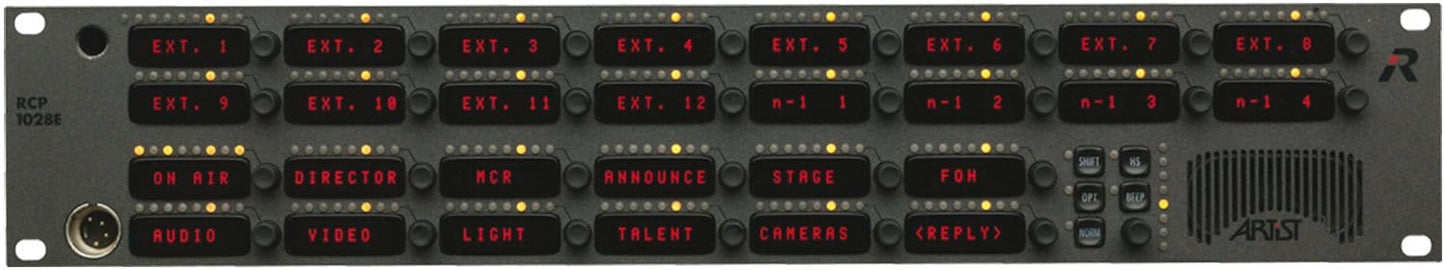

Riedel RCP1028E 28-Key Clear-Com 2RU Controller
The 1000 Series are the premium control key-panels from Riedel and are available in 19“ rack-mount, desktop and modular (Danner) versions. All control key-panels feature bright, dimmable 8-digit alphanumeric LED displays, individual rotary encoder for listen level control and LED level indication for each talk key. A special alphanumeric 8-digit LED display key has been developed which allows clear labelling of destinations and excellent readability under all lighting conditions. These exclusive display keys are used on all 1000 Series control and expansion key-panels resulting in an ultra-compact design. In addition, all 1000 Series control key-panels provide 5 dedicated function keys, built-in loudspeaker, XLR headset connector and a removable gooseneck microphone. 3 GPIs, and 3 GPOs are available for system-wide programming as standard. Two sets of balanced line level audio inputs and outputs are also provided as standard.
Features:
- Control Panel; 28 keys; 19" / 2 RU
- Balanced analog line level inputs / outputs (2x / 2x)
- GPI opto-inputs /relay outputs on DB9 connectors (3x / 3x)
- Integrated power supply
Specifications:
- Rackmountable: Yes
- Rack Units: 1
- Systems Controlled - Audio
- Rackmountable - Yes
- Rackmountable: Yes
- Rack Units: 1
- Systems Controlled - Audio
- Rackmountable - Yes
