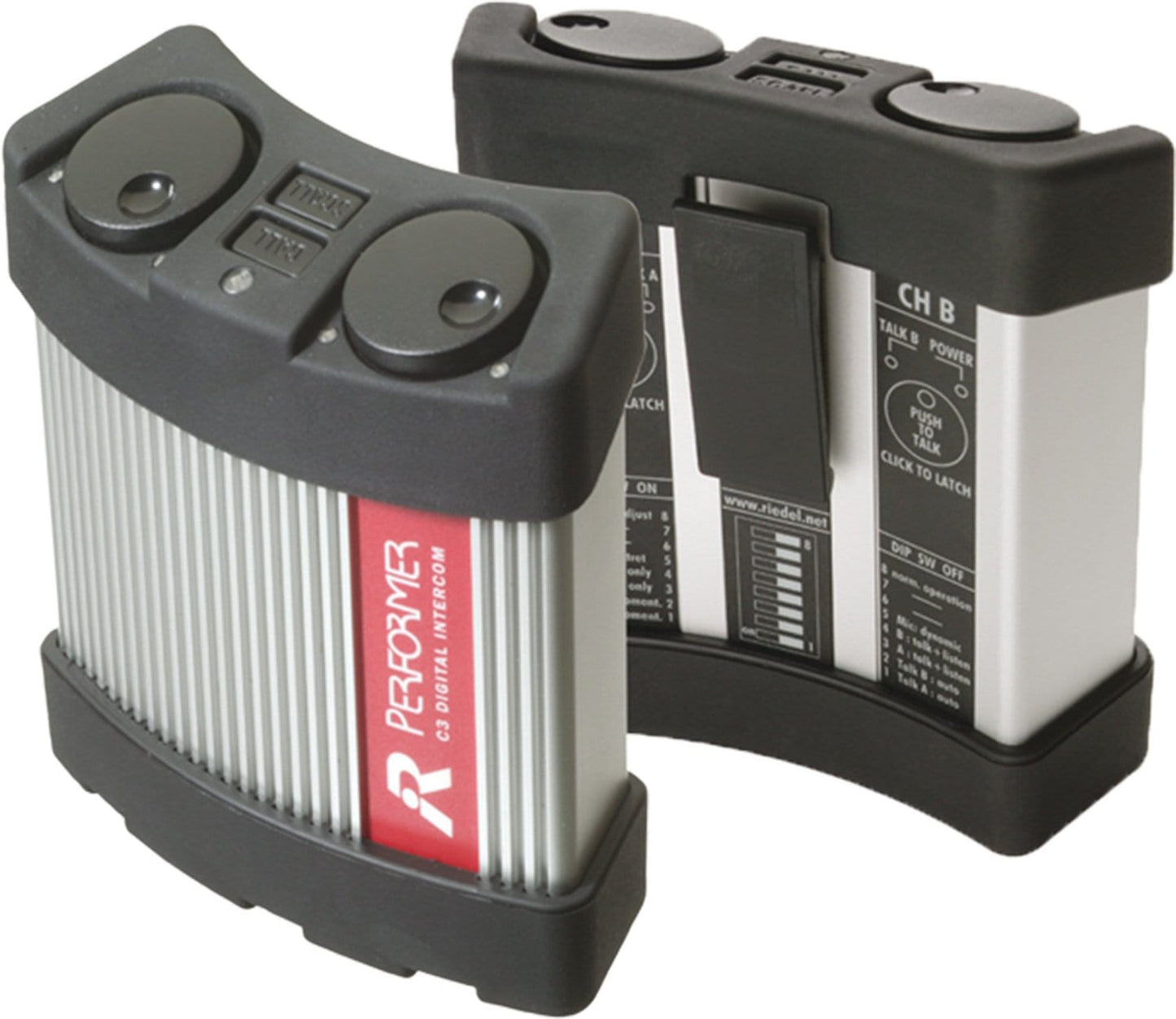

Riedel C3 Performer 2-Channel Beltpack

The Performer C3 is an ergonomically shaped, fully digital 2- channel beltpack that includes all the standard features from conventional analogue partyline systems including daisy-chaining.

Features:

• High quality digital audio providing noise- and hum-free signals
• DSP signal processing provides perfect side tone-nulling and excellent intelligibility in applications with very high ambient noise levels
• 3 XLR connectors (Headset, Signal input, Signal loop through or additional analogue program input)
• 2 large rotary level controls on the top of the C3 adjust the listen volumes for CH-A and CH-B
• Pushing on the A or B volume control toggles talk on/off with momentary/latching operation to the respective channel and includes talk LED indication
• Features a call send button
• A bright call light indicates an incoming call to all daisy-chained Performer devices

Specifications:

• Microphone Preamp
  • Mic input impedance: 1 kΩ
  • Dynamic mic input level: > -52 dBu @ 1 kHz
  • Electret mic input level: > -38 dBu @ 1 kHz
  • Frequency response: 80 Hz ... 12 kHz, ± 3 dB
• Headphone Amplifier
  • Load impedance: 32 ... 600 Ω
  • Max. output level: 12 Vpp
  • Max. output power: 255 mW / 600 Ω
  • Frequency response: 20 Hz ... 12 kHz, ± 3 dB
  • Signal-to-noise-ratio :> 80 dB (A)
  • Headset connector: 1x XLR 4M
• Max. Distance / Cable Type
  • Cable type Partyline: XLR cable
  • Between any two Performer devices" up to 1000 ft (300 m)
  • Max. partyline length: up to 1.5 miles (2.5 km)
• Overall
  • Environmental Temperature: -5 °C to +40 °C
  • Power requirements: 36 ... 48 VDC
  • Power consumption: 2.5 W
  • Dimensions (w×h×d): 120 mm × 140 mm × 39 mm
  • Gross (Net) Weight: 0.45 kg
