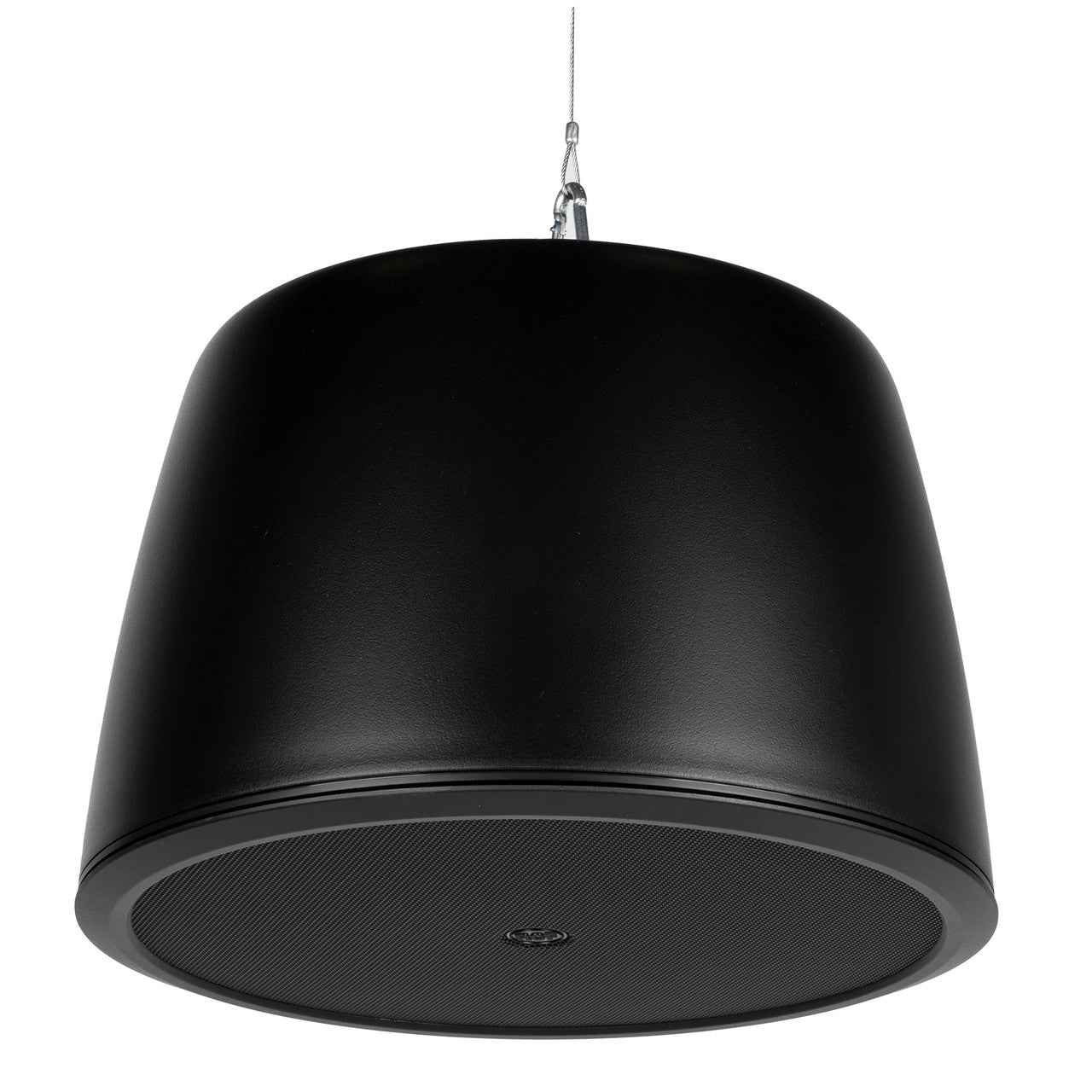

RCF PMR-60T Passive 320W 6.5" 2-Way Pendant Speaker w/ Transformer - 8 ?, 70/100V
RCF PMR-60T Passive 320W 6.5" 2-Way Pendant Speaker w/ Transformer - 8 ?, 70/100V
SKU: PMR-60T
Available options
Description
RCF PMR-60T Passive 320W 6.5" 2-Way Pendant Speaker w/ Transformer - 8 ?, 70/100V
PMR 60T is a two-way pendant monitor speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and refined finishes, it is suitable for all environmental and architectural conditions. Featuring a 6.5’’ woofer and 80 W RMS power, it is also equipped with a transformer for connection to constant voltage lines (70/100 V). The high quality of its transducers (arranged in a coaxial configuration) guarantees faithful and precise musical reproduction throughout the audio spectrum and allows to reach truly remarkable sound pressure levels for such compact products. The connection is simple and safe thanks to the removable four-pole screw terminals. The front grille is fixed by magnets and can therefore be easily removed to access the power rotary switch.
Features
- 80W RMS power handling
- 114 dB max SPL
- 70 ÷ 20000 Hz frequency range
- 130° constant directivity conical coverage angle
- 6.5" high power woofer
- 1" neodymium dome tweeter
- Self extinguishing plastic body
- Steel magnetic front grille
- 4 pole EUROBLOCK connector (audio input and parallel link output)

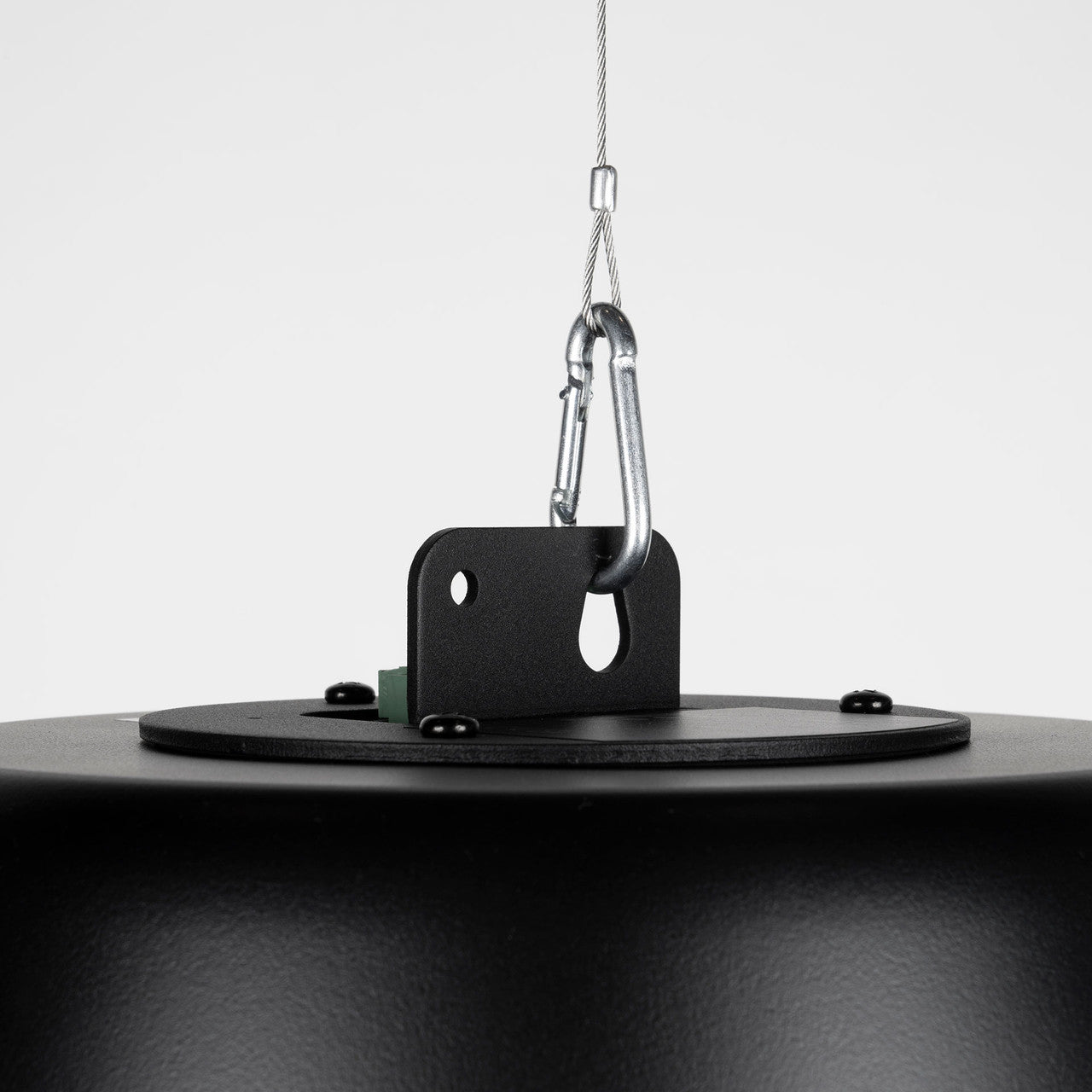

- 5 m hanging cable included
Specifications
Acoustical Specifications
- Frequency Response (-10 dB): 70 Hz – 20,000 Hz
- Max SPL @ 1 m: 114 dB
- Coverage Angle: 130°
- System Sensitivity: 89 dB
Power Section
- Amplification: Full Range
- Nominal Impedance: 8 Ω
- Power Handling: 80 W RMS
- Peak Power Handling: 320 W Peak
- Crossover Frequency: 2,500 Hz
- Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P
Transducers
- Dome Tweeter: 1 × 1.0" Neo, 1.0" Voice Coil
- Woofer: 1 × 6.5", 1.2" Voice Coil
Input / Output Section
- Input Connectors: Euroblock
- Output Connectors: Euroblock
- Constant Voltage Transformer: 70/100 V
Power Selection
- 80 W – 125 Ω
- 40 W – 250 Ω
- 20 W – 500 Ω
- 10 W – 1,000 Ω
- 5 W – 2,000 Ω
Standard Compliance
- Safety Agency: CE Compliant
Physical Specifications
- Cabinet / Case Material: ABS
- Grille: Steel
- Color: White – RAL 9003, Black – RAL 9005
Size / Weight
- Height: 236 mm (9.29")
- Diameter: 300 mm (11.81")
- Weight: 5.1 kg (11.24 lbs)
Shipping Information
- Package Height: 340 mm (13.39")
- Package Width: 362 mm (14.25")
- Package Depth: 362 mm (14.25")
- Package Weight: 6.5 kg (14.33 lbs)
