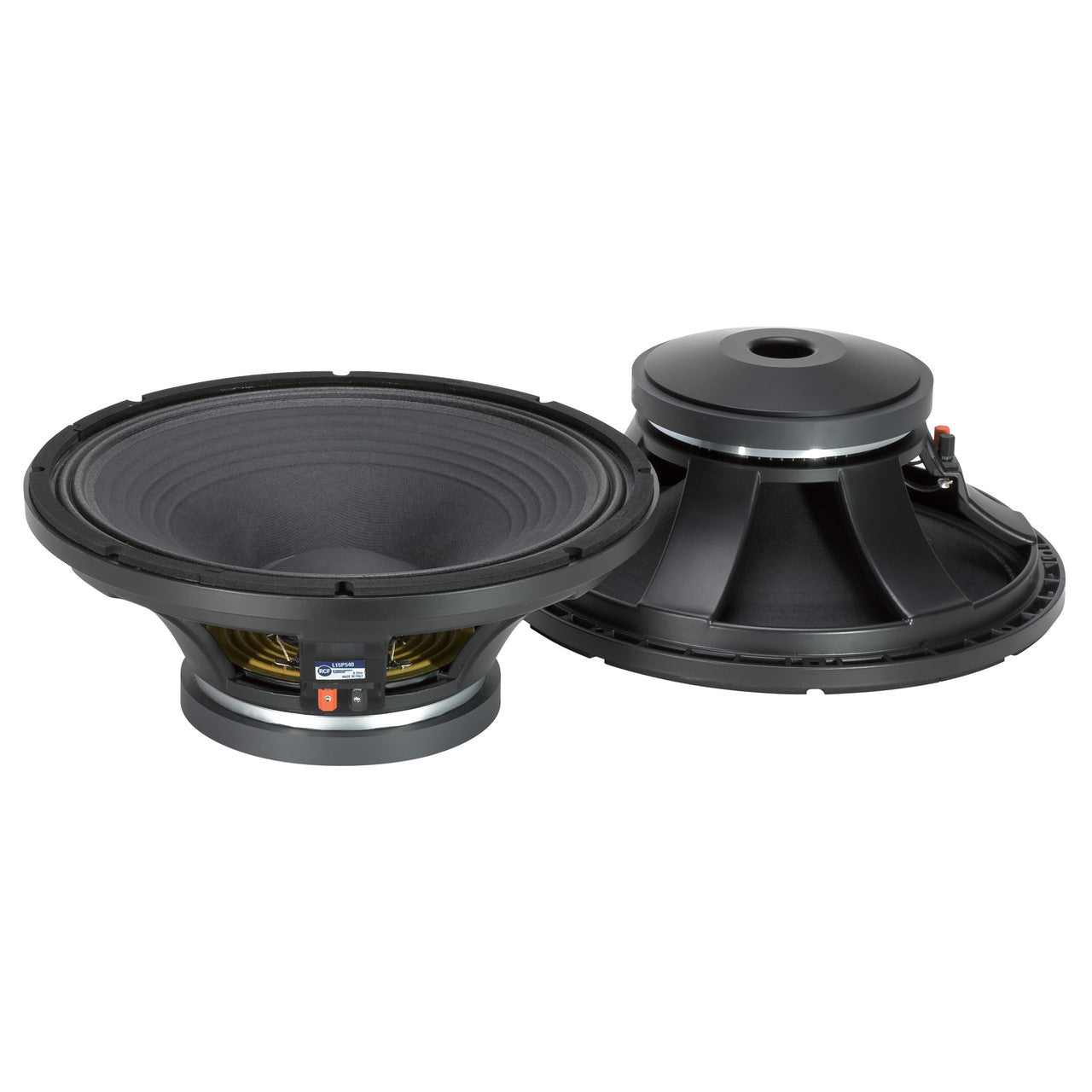

RCF L15P540 15" Power: 500W rms, 1000W prog. Sensitivity: 98 dB Freq. Range 40-2000 Hz

RCF L15P540 15" Power: 500W rms, 1000W prog. Sensitivity: 98 dB Freq. Range 40-2000 Hz

Write a review

SKU: L15P540

$509.00
$509.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

RCF L15P540 15" Power: 500W rms, 1000W prog. Sensitivity: 98 dB Freq. Range 40-2000 Hz

High power 15" woofer. Very good power handling, excellent linearity and very low distortion. Very efficient heat dissipation in ensured by a radiator that is part of the basket design. The air is forced in the radiator thanks to a dual sealed spider design.

Features
  • 3-inch, fiberglass inside/outside copper voice coil
  • 1000W continuous program power handling
  • 98 dB Sensitivity
  • 40 Hz – 2 kHz Frequency range
  • Dual spider design with silicon based dampening control
  • M-roll surround and exponential cone geometry
    • Specifications

    General Specifications

    • Nominal Diameter: 15 inch / 381 mm
    • Rated Impedance: 8 ohm
    • Program Power: 1000 W
    • Power Handling Capacity: 500 W
    • Sensitivity: 98.0 dB
    • Frequency Range: 40–2000 Hz
    • Effective Piston Diameter: 330 mm / 12.99 inch
    • Max. Excursion Before Damage: 36 mm / 1.42 inch
    • Minimum Impedance: 6.8 ohm
    • Voice Coil Diameter: 3.0 inch / 76 mm
    • Voice Coil Winding Material: Copper
    • Voice Coil Length: 18 mm / 0.71 inch
    • Number of Layers: 2
    • Kind of Layers: Inside/Outside
    • Top Plate Thickness: 10 mm / 0.39 inch
    • Cone Design: Curved
    • Surround Material: Polycotton
    • Surround Design: M-roll
    • Magnets: Ceramic
    • Spider: 03

    Thiele–Small Parameters

    • Resonance Frequency (Fs): 50 Hz
    • DC Resistance (Re): 5.60 ohm
    • Mechanical Factor (Qms): 9.70
    • Electrical Factor (Qes): 0.41
    • Total Factor (Qts): 0.39
    • BL Factor (Bl): 21.40 T × m
    • Effective Moving Mass (Mms): 106.0 g
    • Equivalent Cas Air Loaded (Vas): 100.0 liters
    • Effective Piston Area (Sd): 0.090 m²
    • Max. Linear Excursion (Xmax): 7 mm
    • Voice Coil Inductance @ 1 kHz (Le1k): 1.50 mH
    • Half-Space Efficiency (Eff): 2.94%

    Mounting Information

    • Overall Diameter: 387 mm / 15.24 inches
    • Bolt Circle Diameter: 371 mm / 14.61 inch
    • Bolt Hole Diameter: 7 mm / 0.28 inch
    • Front Mount Baffle Cut-Out: 352 mm / 13.86 inch
    • Rear Mount Baffle Cut-Out: 360 mm / 14.17 inch
    • Volume Occupied by the Driver: 3.8 liters / 0.15 ft³

    Standard Compliance

    • Safety Agency: CE Compliant

    Physical Specifications

    • Color: Black

    Size & Weight

    • Height: 184 mm / 7.24 inches
    • Diameter: 387 mm / 15.24 inches
    • Weight: 8.8 kg / 19.4 lbs

    Shipping Information

    • Package Height: 225 mm / 8.86 inches
    • Package Width: 435 mm / 17.13 inches
    • Package Depth: 435 mm / 17.13 inches
    • Package Weight: 10.2 kg / 22.49 lbs
