RCF L15P530 15" Power: 350W rms, 700W prog. Sensitivity: 100 dB Freq. Range 40-3000 Hz

RCF L15P530 15" Power: 350W rms, 700W prog. Sensitivity: 100 dB Freq. Range 40-3000 Hz

Write a review

SKU: L15P530

$509.00
$509.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

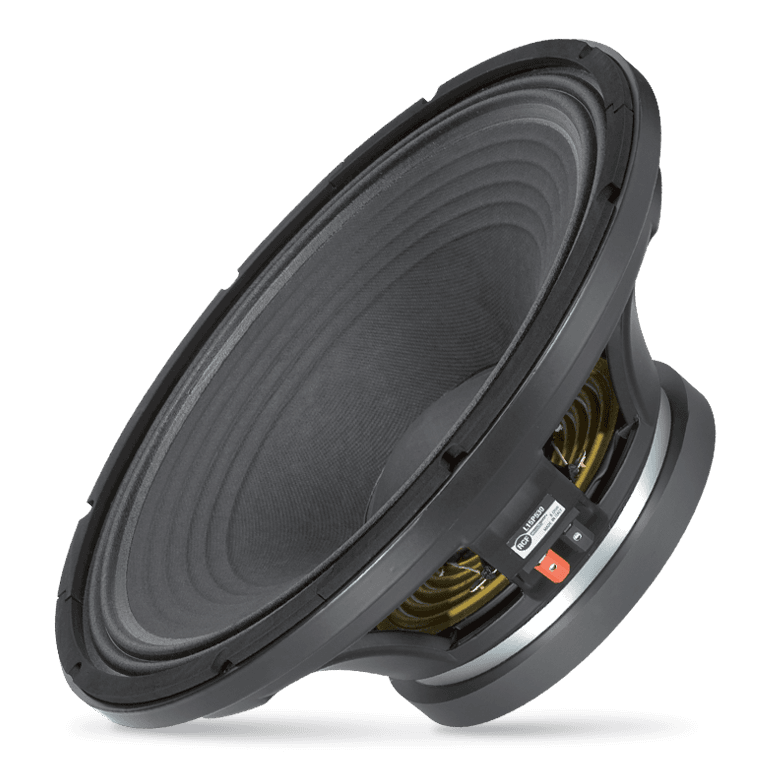

RCF L15P530 15" Power: 350W rms, 700W prog. Sensitivity: 100 dB Freq. Range 40-3000 Hz

High power 15" mid-bass. Very high sensitivity, excellent linearity and very low distortion. Very efficient heat dissipation in ensured by a radiator that is part of the basket design. The air is forced in the radiator thanks to a sealed spider design.

Features
  • 3-inch, edgewound aluminum voice coil
  • 700W continuous program power handling
  • 100 dB Sensitivity
  • 40 Hz – 3 kHz Frequency range
  • Spider dampening treatment
  • M-roll surround and exponential cone geometry
    • Specifications

    General Specifications

    • Nominal Diameter: 15 inch / 381 mm
    • Rated Impedance: 8 ohm
    • Program Power: 700 W
    • Power Handling Capacity: 350 W
    • Sensitivity: 100.0 dB
    • Frequency Range: 40–3000 Hz
    • Effective Piston Diameter: 330 mm / 12.99 inch
    • Max. Excursion Before Damage: 36 mm / 1.42 inch
    • Minimum Impedance: 5.9 ohm
    • Voice Coil Diameter: 3.0 inch / 76 mm
    • Voice Coil Winding Material: Aluminum
    • Voice Coil Length: 18 mm / 0.71 inch
    • Number of Layers: 1
    • Kind of Layers: Outside
    • Top Plate Thickness: 10 mm / 0.39 inch
    • Cone Design: Curved
    • Surround Material: Polycotton
    • Surround Design: M-roll
    • Magnets: Ceramic
    • Spider: 02

    Thiele–Small Parameters

    • Resonance Frequency (Fs): 45 Hz
    • DC Resistance (Re): 5.10 ohm
    • Mechanical Factor (Qms): 7.50
    • Electrical Factor (Qes): 0.51
    • Total Factor (Qts): 0.48
    • BL Factor (Bl): 15.30 T × m
    • Effective Moving Mass (Mms): 83.0 g
    • Equivalent Cas Air Loaded (Vas): 160.0 liters
    • Effective Piston Area (Sd): 0.090 m²
    • Max. Linear Excursion (Xmax): 7 mm
    • Voice Coil Inductance @ 1 kHz (Le1k): 0.40 mH
    • Half-Space Efficiency (Eff): 2.76%

    Mounting Information

    • Overall Diameter: 387 mm / 15.24 inch
    • Bolt Circle Diameter: 371 mm / 14.61 inch
    • Bolt Hole Diameter: 7 mm / 0.28 inch
    • Front Mount Baffle Cut-Out: 352 mm / 13.86 inch
    • Rear Mount Baffle Cut-Out: 360 mm / 14.17 inch
    • Volume Occupied by Driver: 3.8 liters / 0.15 ft³

    Standard Compliance

    • Safety Agency: CE Compliant

    Physical Specifications

    • Color: Black

    Size & Weight

    • Height: 165 mm / 6.5 inch
    • Diameter: 387 mm / 15.24 inch
    • Weight: 8.7 kg / 19.18 lbs

    Shipping Information

    • Package Height: 215 mm / 8.46 inch
    • Package Width: 430 mm / 16.93 inch
    • Package Depth: 435 mm / 17.13 inch
    • Package Weight: 10.2 kg / 22.49 lbs
