Radial ProAV2 Passive 2-Channel Multimedia DI
Stereo Passive Multimedia Direct BoxThe ProAV2 is a stereo passive direct box designed for audio-video integrators and technicians, with an array of input connector options to easily interface with a wide range of audio equipment.
Connect any device to the PA systemThe ProAV2 is an indispensable device for live sound engineers and audio-video technicians alike, with the ability to seamlessly interface nearly any device with a pro audio system. A 3.5mm stereo input jack and dual 1/4" and RCA connectors ensure that you won't ever be hunting around for adaptor cables, while ultra-quiet performance with transformer isolation helps eliminate hum and buzz from ground loops. The ProAV2 maintains stereo separation and exhibits linear frequency response from 20Hz to 20kHz, with balanced mic-level XLR outputs that allow you to send signals through a multichannel audio snake on stage or into two channels of a mixing console.
ProAV2: Stereo In ~ Stereo OutThe ProAV2 operates in true stereo (dual mono) making it ideal for stereo devices like laptops and DVD players. Just like the ProAV1 you can connect with phone, RCA and 3.5mm jacks, quick and adapter-free.
Versatile stereo direct box for multimedia applications.
Easy to use, ultra-quiet passive design.
Transformer isolation eliminates hum and buzz.
Handles huge transients without distortion.
Features:
- 1/4" Input: Instrument input connection to the ProAV2.
- RCA Input: Stereo input can be used with CD players, tape decks, VCRs, etc. A second set of RCA jacks can be used as a thru-put.
- 3.5mm TRS: -10dB stereo input connects PC sound cards and headphone jacks.
- -10dB Pad: Reduces input level from high output devices like CD Players and headphone outputs.
- Ground Lift: Disconnects the ground path at the input.

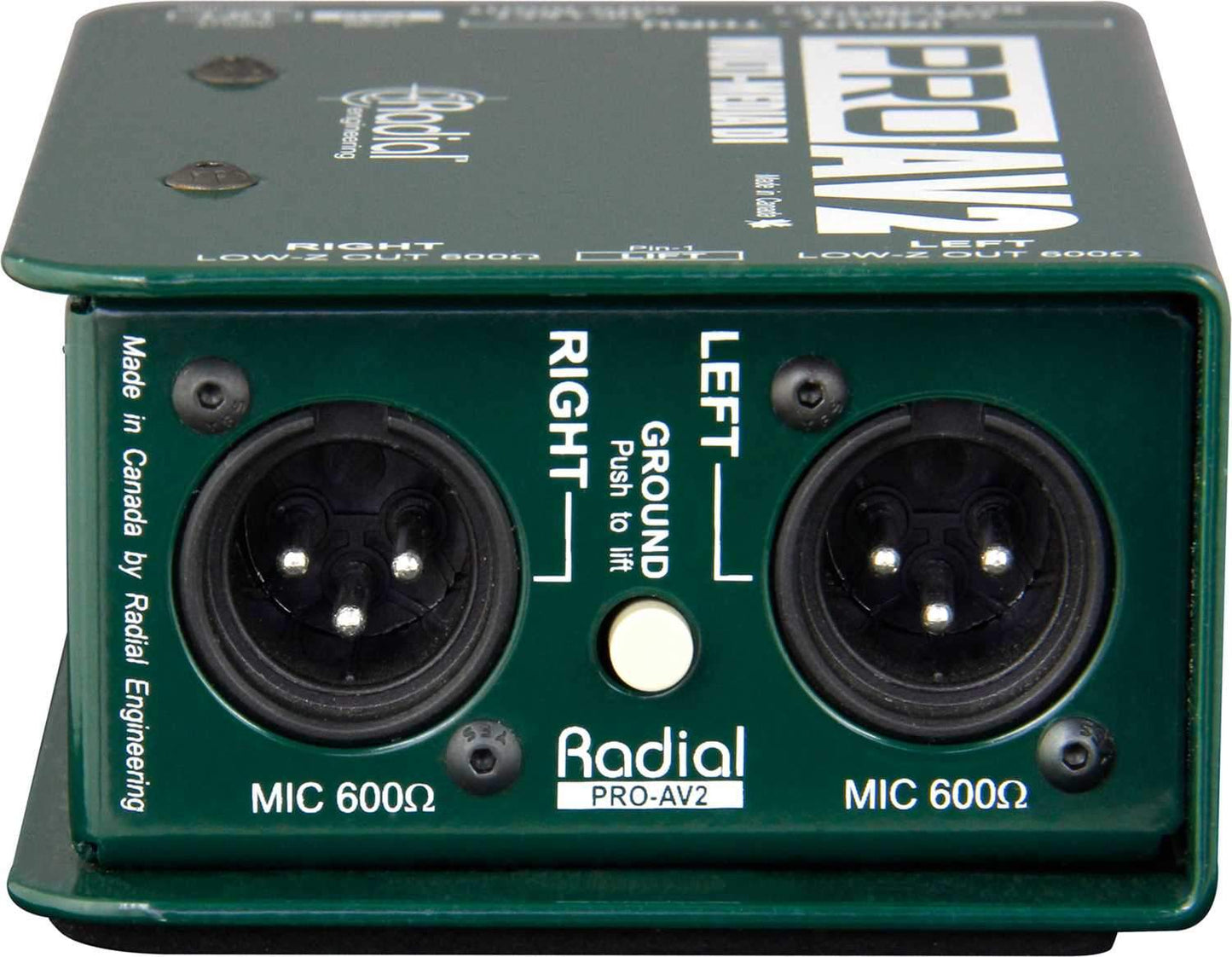

- XLR Outoput: Balanced 600O mic level output, feeds mixer or mic preamp.
- Ground Lift: Disconnects the ground path at the XLR output.
Specifications:
- Audio circuit type: Passive, transformer based
- Transformer: Eclipse ET-DB2, 12:1 ratio
- Number of channels: Dual channel (stereo)
- Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
- Dynamic range: 128dB
- Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
- Phase Deviation: 1? @ 100Hz; 8? @ 20Hz
- Input Impedance: 140k Ohms, unbalanced
- Output Impedance: 150 Ohms, balanced
- Maximum Input: +18dB @ 20Hz
- Ground lift
- Input Connectors: 1/4", RCA, 3.5mm TRS
- Output Connectors: XLR
- Construction: 14-gauge steel chassis & sshell
- Size (L x W x D): 3.25î x 5î x 1.875î
- Weight:0.82kg / (1.8lbs)
- Shipping size (L x W x D): 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
- Shipping weight: 1.2 kg (2.60 lbs)
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5?C and 40?C
- Warranty: Radial 3-year, transferable
