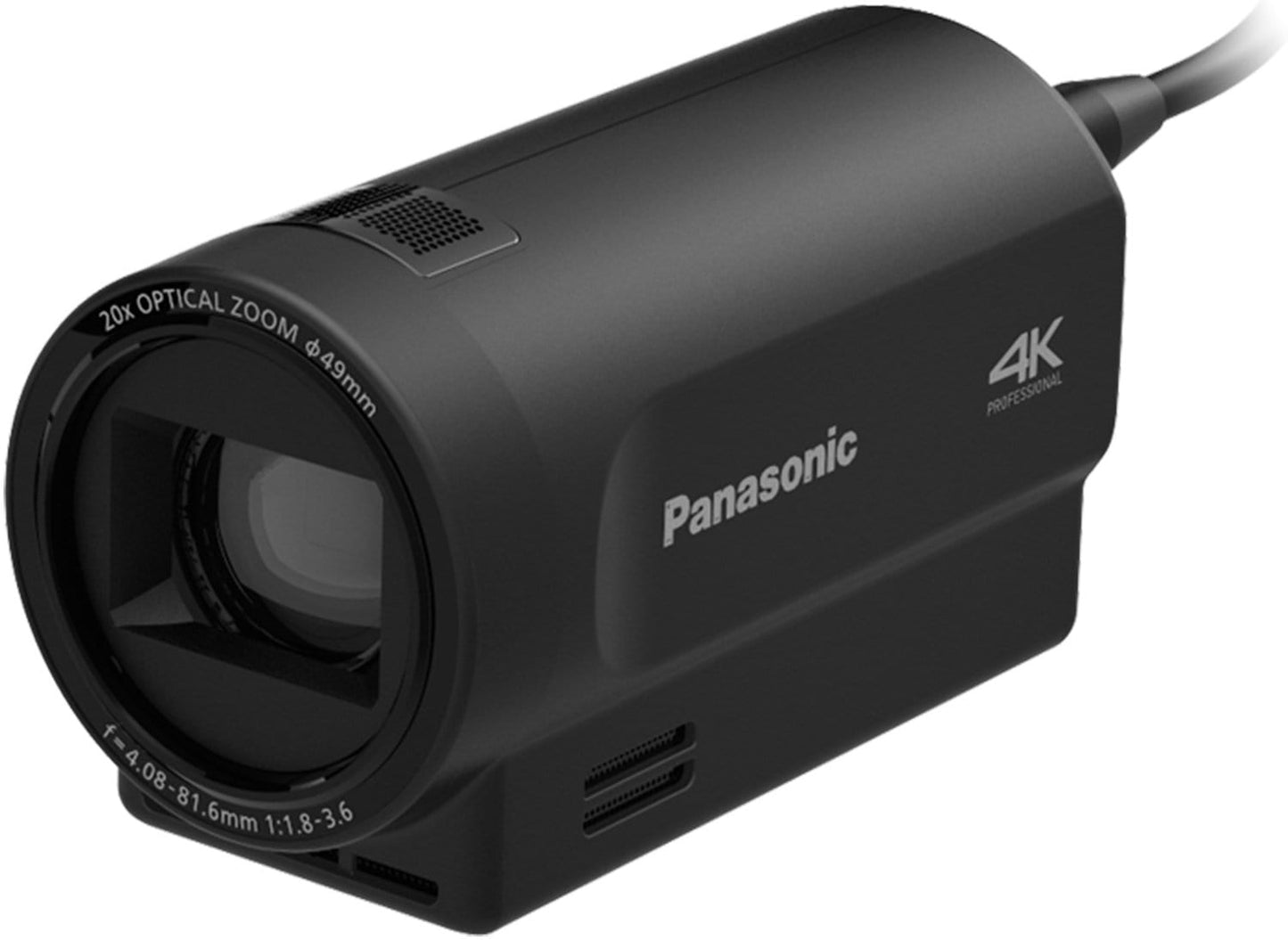

Panasonic AG-UCK20GJ 4K POV Camera
A Compact, Lightweight, Free-Style Shooting Inheriting the features of the first-generation POVCAM plus the operating ease of a touch panel. Network Operation for IP Control and IP Streaming LAN connection enables zooming and real-time video monitoring with a PC or tablet. Double SDXC Memory Card Slots Extended recording capability with large-capacity SDXC Memory Cards and Relay Recording. High-Quality, Newly Designed 4K* (UHD) Camera Head Featuring a high-resolution, progressive MOS sensor and 29.5mm (35 mm equivalent) wide-angle optical 20x zoom lens.
Features:
- Free-Style Shooting
- Compact Camera Head for Flexible Installation
- Compact, Lightweight, Battery-Drive Recorder
- Touch-Panel LCD Monitor
- IP Network Operation
- LAN Terminal for IP Streaming and IP Control
- A REMOTE Terminal that also controls Focus and Iris
- Simultaneous Output of 3G-SDI Input/Output and HDMI Output
- Versatile Interfaces
- Memory Card Slots
- AVCHD Acquisition with High-Quality PS/PH Modes
- Double SD Memory Card Slots (SDXC Memory Card)
- Versatile Recording Functions for Professional Use
- Playback Functions Convenient for Presentations
- 4K (UHD) Camera Head
- High-Resolution, Progressive MOS Sensor
- 29.5 mm Wide-Angle Optical 20x Zoom Lens
- Stable Images with the Five-Axis Hybrid Image Stabilizer
- Picture Adjustments like a High-End Cameras
- Versatile Camera Functions
Specifications:
- General
- Power: DC 9 V (supplied from the AG-UMR20)
- Power consumption: 0.6 A
- Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Operating humidity: 10 % to 80 % (no condensation)
- Weight: Approx. 325 g (0.717 lbs)
- Dimensions(W x H x D): 64 mm x 72 mm x 131 mm (excluding protrusion)(2-17/32 inches x 2-27/32 inches x 5-5/32 inches)
- Camera
- Pickup device: 1/2.3-type MOS MOS solid state image sensor (Total pixels: approx. 12.76 megapixels)
- Lens:
- Zoom: optical 20x motorized zoom
- Fvalue: F1.8 to F3.6, Focal length: f= 4.08 mm to 81.6 mm
- 35 mm conversion: 29.5 mm to 612.0 mm
- (Hybrid O.I.S mode “OFF”)
- Filter diameter : 49 mm, ND filter: CLEAR, 1/4, 1/16, 1/64 (built-in)
- Shortest shooting distance: 1.5 m (4.9 ft) at zoom range, 3 cm (0.1 ft) at wide angle
- IR cut filter： incorporates the ON/OFF control function
- Zoom:
- i. Zoom: x30 (HD), x22 (4K)
- Digital zoom: x1.4, x2, x4, x6, x8
- Image stabilizer:
- Optical image stabilizer (HD/4K)
- 5-Axis hybrid image stabilizer (HD)
- Gain setting: Automatic, manual 0 dB to 30 dB(1 dB step), Super Gain 33 dB, 36 dB *At auto mode, 3 dB to 30 dB (3 dB steps) can be selected with AGC limit setting.
- White balance: ATW, ATW LOCK, AWB A, AWB B, P3200K, P5600K, VAR (2000 K to 15000 K)
- Shutter speed: 59.94i/59.94p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 29.97p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec. to 1/8000 sec. (same as above) 23.98p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec. to 1/8000 sec. (same as above) 50i/50p mode: 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec. to 1/8000 sec. (same as above) 25.00p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec. to 1/8000 sec. (same as above)
- Slow shutter: 59.94i/59.94p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec. 29.97p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec. 23.98p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec. 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec., 25.00p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
- Synchro scan: 59.94i/59.94p mode: 1/60.0 sec. to 1/285.6 sec. 29.97p mode: 1/30.0 sec. to 1/206.5 sec. 23.98p mode: 1/24.0 sec. to 1/280.1 sec. 50i/50p mode: 1/50.0 sec. to 1/209.2 sec. 25p mode: 1/25.0 sec. to 1/224.3 sec.
- Minimum illumination: 0.2 lx (slow shutter: 1/2 sec., gain: +36 dB)
- Horizontal resolution:
- 1,300 TV (HDMI output 2160/29.97p, when 25.00p playback)
- (Typ, Center) 1,000 TV (HDMI output 1080/59.94p, when 50.00p playback)
- Input/Output
- AUDIO IN: Built-in microphone (2 CH stereo)
- Connecter: 20 pin dedicated interface (to the AG-UMR20)
