Description

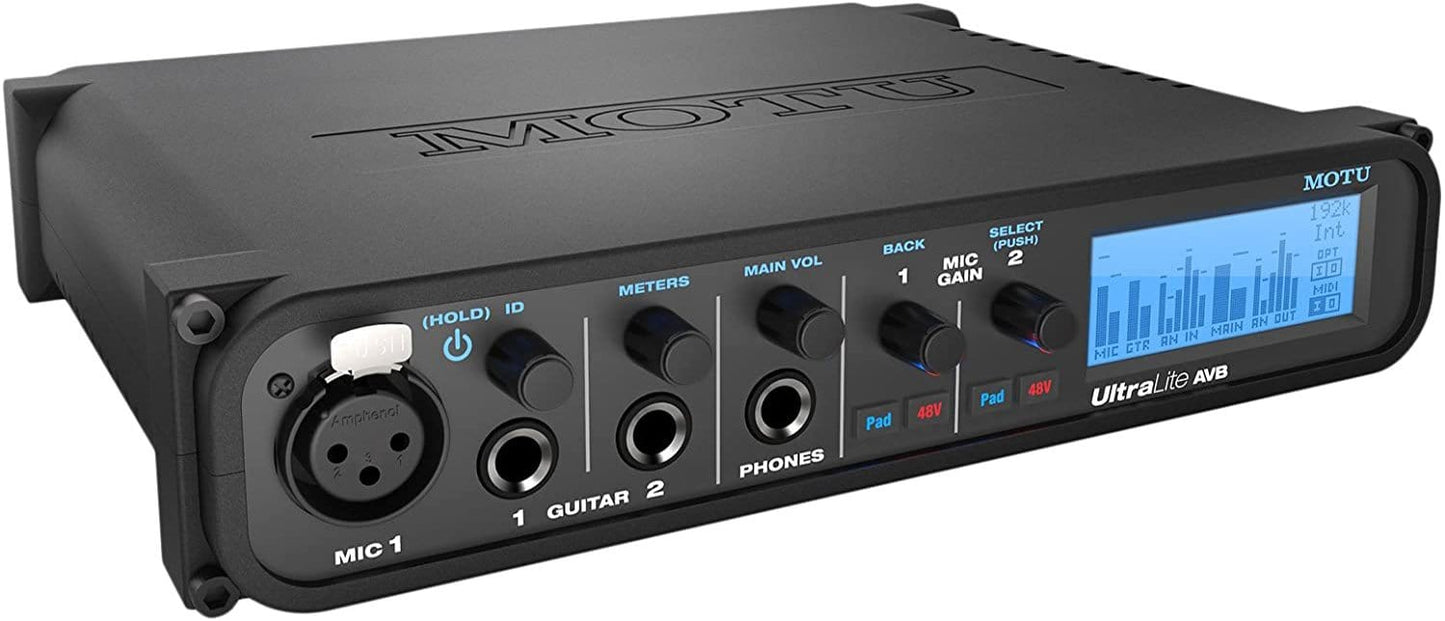

MOTU MOTUULAVB USB AVB IOS UltraLite Interface

The latest in MOTU's popular, award-winning UltraLite interface series, the UltraLite AVB is an 18-input, 18-output audio interface with DSP mixing, wi-fi control, AVB audio networking and best-in-class analog audio quality for on-the-go mobile audio recording.

Features:

  • 18 x 18 USB/AVB audio interface with 36 simultaneous audio channels - 2 mic inputs, 2 guitar inputs, 6 line inputs, 8 line outputs, headphone out and 8-channel optical I/O for 18 inputs and 18 outputs.
  • Best-in-class audio quality - 117 dB dynamic range on analog outputs represents best-in-class analog audio performance for mobile recording.
  • DSP mixing and effects processing - Flexible 48-input digital mixer with 7 stereo aux busses, 3 group sends, access to eight network inputs, and DSP effects, including reverb, 4-band EQ, gate, and compression.
  • Modeled vintage effects processing - Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.
  • Flexible matrix routing and splitting - Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.
  • Stand-alone operation with wireless control - Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.
  • Universal connectivity - Connects to your computer with standard AVB Ethernet or audio class compliant hi-speed USB 2.0 (compatible with USB 3.0 and iOS). Compatible with all audio software.
  • Web app control from any device - Control everything from your favorite web browser on a laptop, tablet and smartphone connected to your local Wi-Fi network.
  • System expansion - Add a 2nd MOTU AVB interface (1248, 8M, 16A, 24Ai, 24Ao, etc.) with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).
  • AVB audio networking - Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
  • Comprehensive metering - The large backlit LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
  • AudioDesk - Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.

Specifications:

  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Mic inputs:
    • 2 x XLR mic inputs
    • Preamp gain: 0 to +60 dB (digitally controlled)
  • Analog inputs:
    • 2 x 1/4" hi-Z guitar inputs (front panel)
    • 6 x 1/4" TRS line inputs (balanced/unbalanced)
    • Max level: +24 dBu (digitally adjustable -96 to +22)
  • Analog outputs:
    • 8 x 1/4" TRS line out (balanced, DC coupled)
    • Max level: +20 dBu (digitally adjustable -4 to +20)
    • 1 x 1/4" TRS stereo headphone
  • Digital:
    • I/O 1 bank (8 ch) of ADAT optical at 1x sample rates
    • 1 bank (4 ch) of SMUX optical at 2x sample rates
    • Switchable to stereo TOSLink (optical S/PDIF)
  • Total:
    • I/O 18 inputs and 18 outputs (36 total) at 1x sample rates
    • 14 inputs and 14 outputs (28 total) at 2x sample rates
    • 10 inputs and 10 outputs (20 total) at 4x sample rates
  • Computer I/O:
    • 1 x USB 2.0 audio class compliant
    • USB 3.0 and iOS compatible
    • 1 x AVB Ethernet (requires OS X Yosemite)
  • Computer I/O channels:
    • USB 2.0 (44.1 to 48 kHz): 64 in/out
    • USB 2.0 (88.2 to 96 kHz): 32 in/out
    • USB 2.0 (176.4 to 192 kHz): 24 in/out
    • AVB Ethernet: 16 to 128 in/out, depending on host computer speed
  • MIDI I/O:
    • 1 x MIDI IN
    • 1 x MIDI OUT
    • 16 MIDI channels to/from computer host
  • Headphone: 1 x 1/4" TRS stereo phone (assignable)
  • Phantom power: 2 x individual +48V
  • Network: I/O 1 x RJ45 AVB/TSN Ethernet (100 Mbps)
  • AVB streams (8 channels per stream):
    • 3 in / 3 out @ 44.1 or 48 kHz
    • 2 in / 2 out @ 88.2 or 96 kHz
    • 1 in / 1 out @ 176.4 or 192 kHz
  • Front panel:
    • 1 x 1/4" TRS headphone output
    • 2 x TRS hi-Z guitar input
    • 1 x digital rotary encoders • main/phone volume
    • 2 x digital rotary encoders • guitar input gain/power
    • 2 x digital rotary encoders • mic preamp gain
    • 4 x switches • (2) Pad and (2) 48V Phantom switch
    • 128 x 48 pixel LCD for level meters / menu nav
  • Power:
    • External 12-18V DC power supply
    • 1.0A max • tip pos or neg
  • Dimensions and weight:
    • (width x depth x height, enclosure only)
    • 8.6 x 7 x 1.75 inches
    • 22 x 17.75 x 4.5 cm
    • 2.5 lbs. / 1.13 kg
