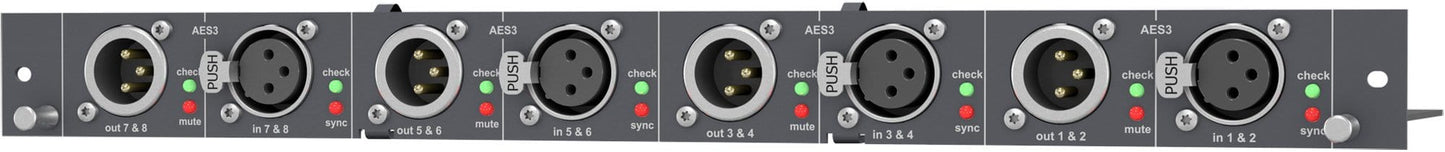

Midas MIDASDL452 8x8 AES3 Card for Pro Series

DL452 is a modular 8 channel digital AES3 (AES/EBU) input and output card for MIDAS PRO Series control centers and modular I/O boxes. DL452 features sample rate conversion for both inputs and outputs and can interface to equipment operating at 48 kHz and 96 kHz. Additionally, DL452 features external clock synchronization for input channels and word length and clock source options (internal 96 kHz, 48 kHz or external sync) for output channels. DL452 features an automatic output mute facility if the audio signal path is muted via the PRO Series control center.

Features:

• 4 AES3 (AES/EBU) input and 4 AES3 outputs on Neutrik* XLR connectors
• 8 input channels and 8 output channels with sample rate conversion
• External clock synchronization for input channels
• Word length and clock source options for outputs
• Supports 96 kHz or 48 kHz external sample rate operation
• External sync and channel check LEDs per input channel
• Output Mute and channel check LEDs per output channel
• Compatible with Midas XL8, PRO3, PRO6, PRO9, PRO X, DL351, and DL451

Specifications:

• Sample rate: 32 kHz -96 kHz (via SRC)
• Digital inputs: 4 (8 channels)
• Connector: 3-pin XLR Balanced
• Output impedance: 110 ohm
• Digital interface: Conforms to AES3-2009
• Digital outputs: 4 (8 channels)
