MARTIN ELP PAR STATIC RGBW LED Par Fixture with Zoom

MARTIN ELP PAR STATIC RGBW LED Par Fixture with Zoom

The Martin ELP PAR static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features.

The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that allows RGB color mixing around your desired white point.

Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

Features:

• Light engine: 7 x 40W RGBW
• Full-gamut color-calibration system
• CTC control: 1,800–12,850 K
• Lumen output: 3,500 lm
• Intensity: 390,000 cd
• Zoom: 4.2 - 58°
• Quick Focus mode allows installation and focusing without the need for a console operator
• Clear of projection indicators allow quick installation
• Angled power and data connections support a clean cable run that does not impede the fixture or installation
• Included truss and floor-mounting yoke with omega bracket connectivity
• Low-noise 33 dB Theatre mode operation
• IP20 rating
• Dimensions: 312 x 287 x 401 mm (12.3 x 11.3 x 15.8 in) (inc. bracket)
• Weight: 7.8 kg (17.2 lbs.)

Specifications:

• Physical:
  • Length: 312 mm (12.3 in.)
  • Width: 287 mm (11.3 in.)
  • Height: 401 mm (15.8 in.) with bracket
  • Weight: 7.8 kg (17.2 lbs.)
• Dynamic Effects:
  • Color mixing: RGBW
  • Color presets: 48 color presets, virtual color wheel effects
  • Color temperature control: Variable 1,800 – 12,850K
  • Electronic dimming: 0 - 100%, four dimming curve options
  • Strobe and pulse effects: Variable speed and action, random strobe
  • Electronic shutter effect: Instant open and blackout
  • Zoom: Motorized
• Control and Programming:
  • Control options: DMX, RDM
  • DMX channels: 14
  • 16-bit fine control: Dimming, RGB, zoom
  • LED color management modes: Raw, extended and calibrated
  • DMX address setting: Control panel with OLED display
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Firmware update: via DMX using Martin Companion
• Optics:
  • Light source: 7 x 40 W RGBW Osram LEDs
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)
  • Beam angle (half-peak): 4.2° - 38.7°
  • Field angle (one-tenth peak): 5.1° - 58.6°
  • Cutoff angle (3%): 5.7° - 69.6°
  • Binning: Tight color and flux binning
  • Calibration: Full Gamut Color Calibration
• Photometric Data
  • Wide beam: 3525 lumens
  • Narrow beam: 1445 lumens
  • Fixture Center Intensity Narrow Beam: 390083 cd
  • Fixture Center Intensity Wide beam: 9957 cd
  • CRI (Color Rendering Index) : >70
  • CQS (Color Quality Scale): 83
  • TM-30 Rf (IES TM-30-15 Fidelity Index): 77
  • TM-30 Rg (IES TM-30-15 Gamut Index): 117
  • TLCI (Television Lighting Consistency Index): 61
  • CCT: 6500 Kelvin
  • LED refresh rate - Standard Mode: 3600 Hz
  • LED refresh rate - Theatre Mode: 19200 Hz
• Construction:
  • Housing: Aluminum and composite
  • Filter mount: 191 x 191 mm (7.5 x 7.5 in.)
  • Color: Black
  • Protection rating: IP 20
• Installation:
  • Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
  • Location: Not for household use, indoor use in dry location only
  • Orientation: Any
  • Minimum distance to combustible materials: 0.5 m (1.7 ft.)
  • Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
  • Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)

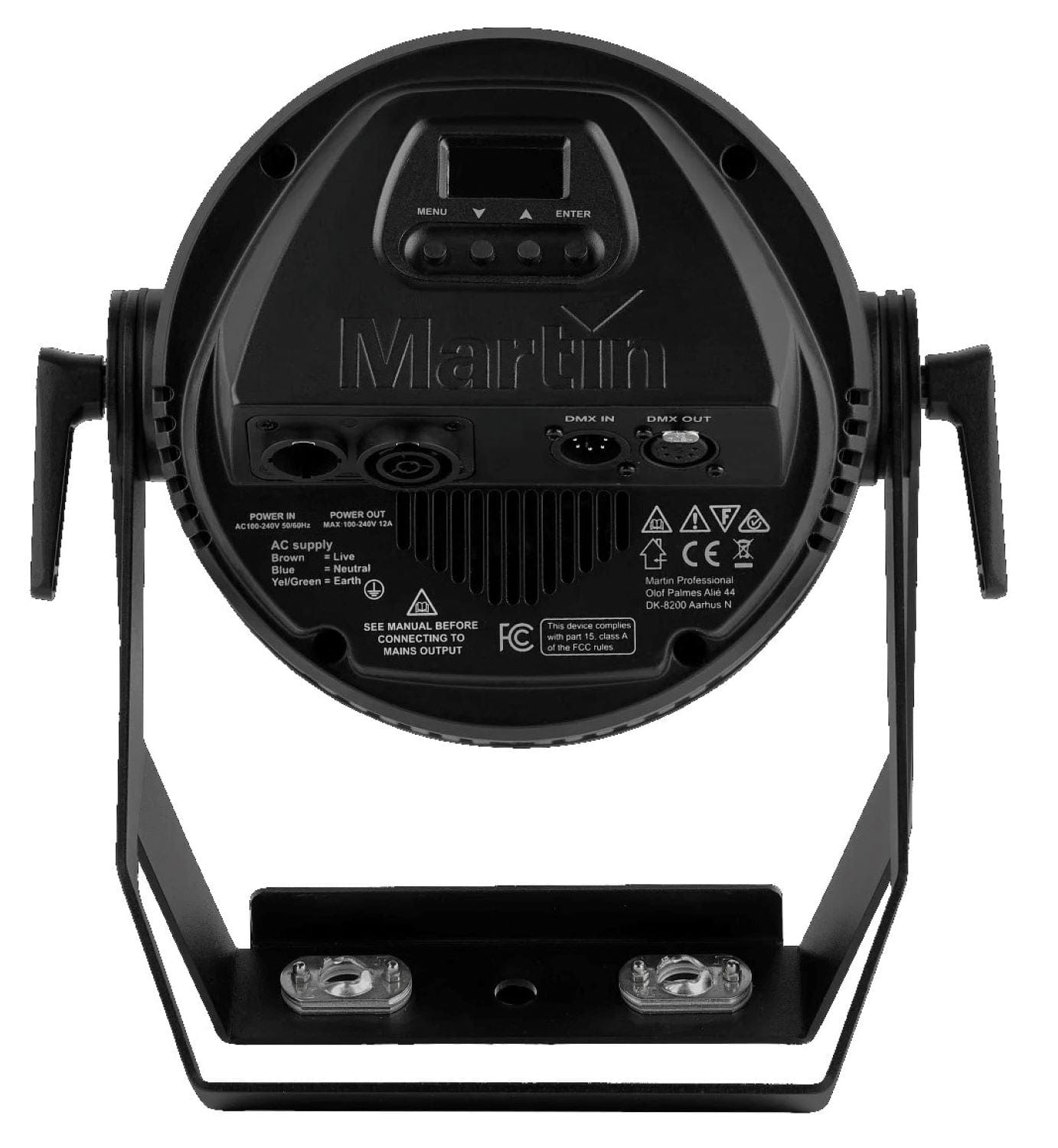

• Connections:
  • AC power input/output: Neutrik PowerCON TRUE1 TOP
  • DMX and RDM data in/out: Neutrik 5-pin locking XLR
• Electrical:
  • AC power: 100-240 V nominal, 50/60 Hz
  • Typical power consumption: 300 W
  • Typical half-cycle RMS inrush current at 240 VAC: 8.7 A
  • Power supply unit: Auto-ranging electronic switch mode
• Maximum Power and Current:
  • 100-120 V, 60 Hz : 3.0 A, 320 W, Power factor 0.991
  • 220-240 V, 50 Hz: 1.7 A, 320 W, Power factor 0.941
• Thermal:
  • Maximum surface temperature: 65° C (149° F)
  • Cooling: Forced air (temperature regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)
  • Total heat dissipation (calculated): 1170 BTU/hr
• Environmental:
  • RoHS: Compliant
  • REACH: Compliant
  • WEEE: Compliant
  • Proposition 65: Compliant
  • Efficacy (max output): 14.9 lm/W
  • LWR*: 449 lm/kg (204 lm/lb)
  • LWR = Lumen-to-Weight Ratio
• Approvals:
  • Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573
  • US EMC: FCC Part 15 Class B
  • Canadian safety: CSA C22.2 No. 166
  • Canadian EMC: ICES-003 Class B, ICES-005 Class B
  • Australia/NZ: RCM
  • United Kingdom: UKCA
• Acoustic Data:
  • Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.1 dB(A)
  • Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 33.0 dB(A)
