Martin 1M x 1M EvenLED RGB DMX Panel

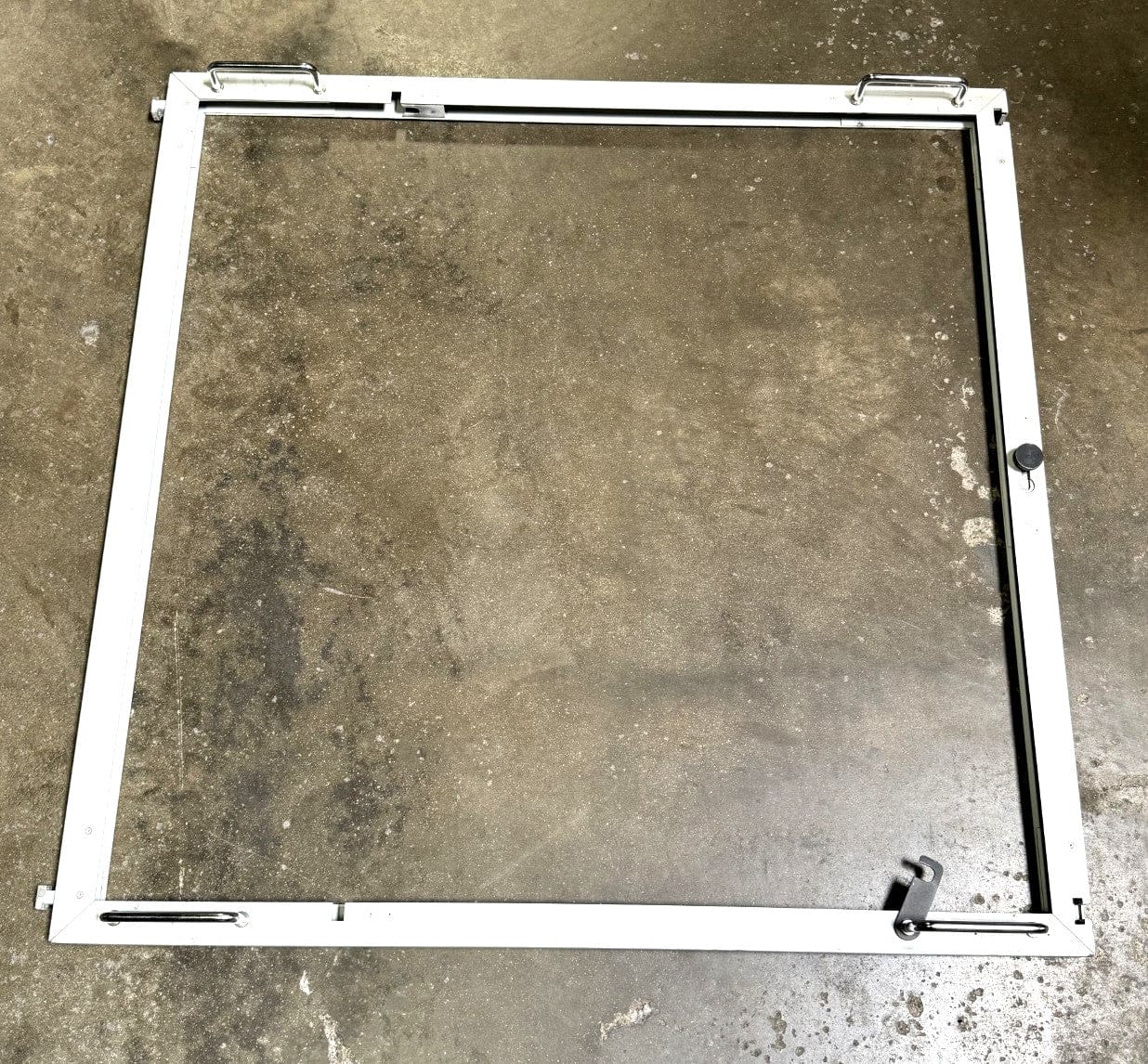

Mounting Frame Included
EvenLED is a high-brightness modular system of RGB LED panels used together with a rear-projection material to create a completely even and flicker-free field of light over cycloramas and other semi-transparent projection surfaces.
Features:
- Optical Clarity: Evenly spaced, individually controlled 6 W RGB LEDs
- Optical Clarity: Totally smooth, even, and flicker-free illumination
- Extremely smooth dimming
- DMX control
- Cabling: Daisy-chained power and data
- Easy to assemble and rig; very service friendly
- Needs less than .5 m of stage depth
- Up to 10 m high, unlimited width
- Construction: Light-weight modules, easy to handle, cutting cost and time
- High efficiency, low power consumption, long lifetime
- Silent operation, little heat generated (no fans)
- 16 pixels per m2 enables easy creation of static and dynamic looks
Specifications:
- PHYSICAL
- Height: 1014 mm
- Width: 995 mm
- Depth: 71 mm
- Weight: 10 kg
- CONTROL AND PROGRAMMING
- Control: DMX
- DMX channels: 96 per independently controlled panel
- Control resolution: 16-bit control of each color
- Protocol: USITT DMX512/1990
- PHOTOMETRIC DATA
- Light source: Proprietary 6 W RGB LED array
- Resolution, one fixture: 4 x 4 pixels
- Pitch (pixel center-to-center): 250 mm
- Pixels per m2: 16
- Color resolution: 16 bits per color
- Viewing angle: 112° (+56°, -56°)
- Minimum LED source lifetime (to 70% of initial output level): 40 000 hours at full intensity
- CONSTRUCTION
- Panels: Aluminum
- Color: White
- Protection rating: IP20
- INSTALLATION
- Orientation: Vertical
- Mounting: Suspended using mounting rail and clamps only; max. 10 panels per suspended column
- CONNECTIONS
- Power in/out: Neutrik PowerCon
- Data input: 5-pin locking XLR
- Data output: 5-pin locking XLR
- Data through: 5-pin locking XLR
- ELECTRICAL
- AC power: 100-120/200-240 V nominal, 50/60 Hz
- Power supply unit: Integrated, auto-sensing multi-voltage with integral current overload protection
- Standby power: 24 W
- Main fuse (not user-replaceable): F 6.3 A
- TYPICAL POWER AND CURRENT
- 100 V, 50 Hz: 151 W, 1.6 A, PF 0.978
- 100 V, 60 Hz: 151 W, 1.6 A, PF 0.988
- 110 V, 60 Hz: 151 W, 1.4 A, PF 0.985
- 120 V, 60 Hz: 151 W, 1.3 A, PF 0.981
- 208 V, 60 Hz: 151 W, 0.8 A, PF 0.915
- 230 V, 50 Hz: 152 W, 0.8 A, PF 0.892
- 240 V, 50 Hz: 152 W, 0.7 A, PF 0.887
- THERMAL
- Cooling: Convection
- Maximum ambient temperature (Ta max.): 40° C
- Minimum ambient temperature (Ta min.): 5° C
- Maximum surface temperature, steady state, Ta=40° C: 80° C
- Total heat dissipation (calculated, +/- 10%): 530 BTU/hr.
