Description

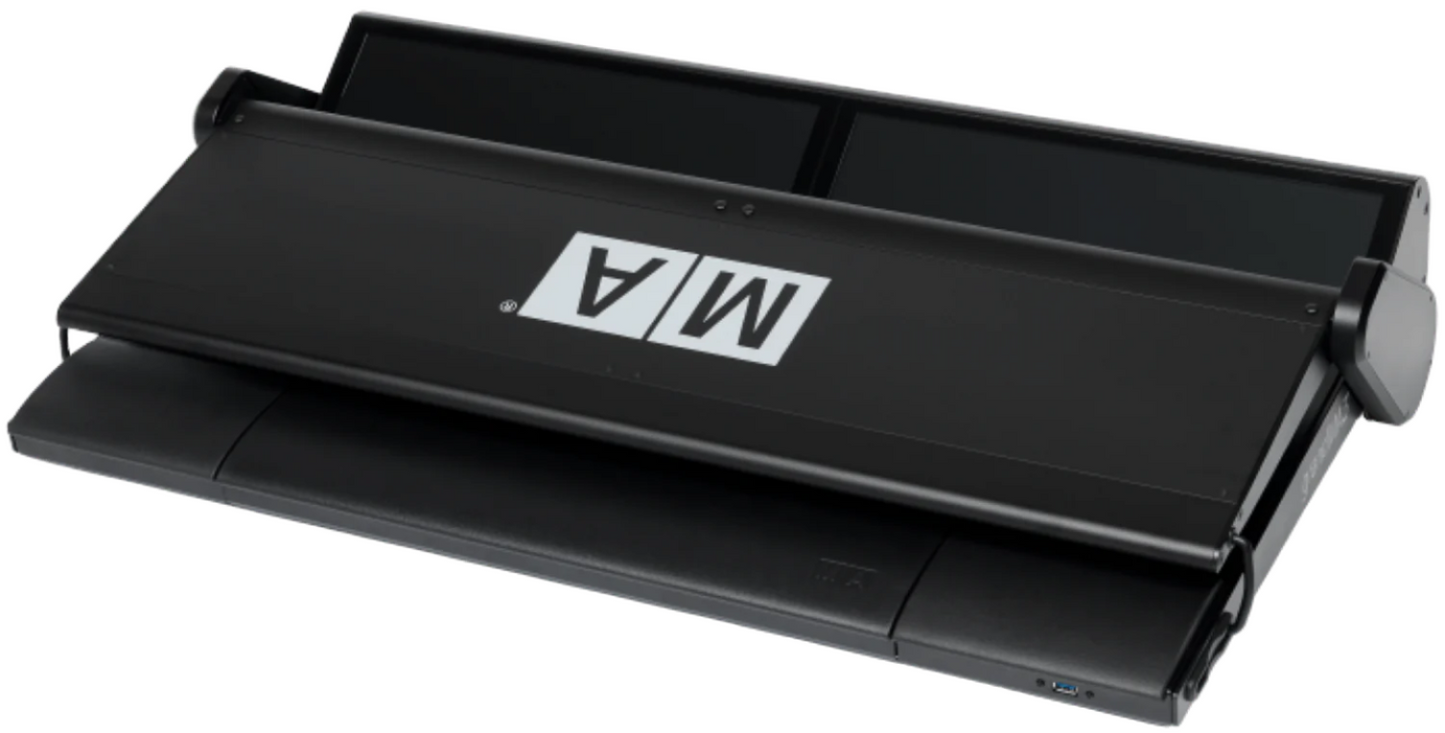

MA Lighting grandMA3 Light Lighting Console

The grandMA3 light console is the work-horse of the range. It provides the perfect combination of power and physical size. The grandMA3 light console is suitable for all but the most demanding productions, making it probably the most versatile lighting console available.

Features:

  • Real-time control for up to 250000 parameters per session in connection with grandMA3 processing units
  • 6 DMX outputs, 1 DMX input
  • 2 internal foldable monitor multi-touch screens
  • 2 internal letterbox multi-touch screens
  • 2 internal multi-touch command screens
  • 2 external multi-touch screens can be connected
  • 41 rotary RGB backlit encoder
  • 5 backlit dual encoders
  • 15 backlit motorized 60 mm faders
  • 60 separate playbacks
  • 16 assignable x-keys
  • Integrated keyboard drawer
  • Built-in uninterruptible power supply (UPS)
  • 3 etherCON connectors, 6 USB connectors
  • 2 backlit motorized A/B faders 100 mm
  • Individually backlit and dimmable silent (clickless) keys

Specifications:

  • Parameters: 8 192 (HTP/LTP)
  • Parameters Mode2: 4 096 (HTP/LTP)
  • Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz
  • Power: max. 300 VA
  • Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
  • Dimensions:
    • 854 x 539 x 181 mm / 34 x 22 x 8 in (width x depth x height, folded and drawer closed)
    • 854 x 584 x 409 (max. 450) mm / 34 x 23 x 17 (max. 18) in (width x depth x height, unfolded for operation)
    • 854 x 871 x 255 mm / 34 x 35 x 10 in (width x depth x height, maximally unfolded and drawer opened)
  • Net weight: 33 kg / 73 lbs
  • Connectors:
    • 1 x powerCON TRUE1
    • 3 x etherCON/RJ45
    • 6 x DMX512-A Out (5pin XLR female)
    • 1 x DMX512-A In (5pin XLR male)
    • 1 x MIDI In (5pin DIN female)
    • 1 x MIDI Out (5pin DIN female)
    • 1 x Linear Timecode (3pin XLR female)
    • 1 x Audio In (3pin XLR female)
    • 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
    • 2 x DisplayPort 1.2 for external screens
    • 2 x S/PDIF In and Out
    • 3 x USB 2.0 (type A)
    • 3 x USB 3.0 (type A)
    • 2 x LED desk light (4pin XLR female)
  • MA4010502
