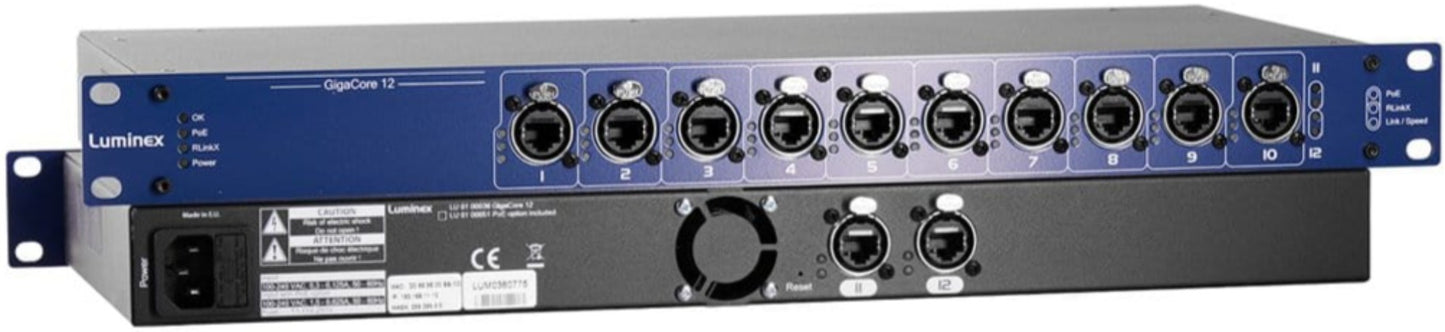

Luminex GigaCore 12 PoE+ Network Switch
The GigaCore 12 is a managed Gigabit Ethernet switch designed to setup professional lighting and AV networks, but in a truly user-friendly way. The unit offers 12 Gigabit ports on shielded Neutrik Ethercon ports, making the product a hard environment friendly device. All configurations are done through the industry oriented web interface.
Features:
- Most suitable applications: Touring and live events
- RLinkX (Link redundancy): Yes
- Groups (VLAN segmentation): Yes
- MultiLinkX (Link aggregation): Yes
- Profile manager: Yes
- Memory: 4Mb
- MAC address table:
- Address learning / Aging: Self learning, Auto aging
- Switching throughput: 32Gbps
- Jumbo frames: MTU up to 9600
- IGMP support: Yes (V1/V2/V3)
- IGMP snooping: Yes, enabled by default
- Port sensing: Auto negotiation
- Auto crossover: MDI / MDIX
- Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
Specifications:
- Connectivity
- Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
- Fiber connectivity: None
- Ethernet port speed: 1Gbps
- Serial: None
- Power
- Power connectivity: 1 x IEC inlet with fuse holder
- Power input: 100-240VAC, 50-60Hz
- Power consumption: Maximum 30W (maximum 180W with PoE Supply Unit)
- Fuse: 3.15A 250V Slow Blow
- Backup power input: None
- Backup PoE power input: None
- PoE supply: Optional on front ports only (up to 160W)
- Protocols
- Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
- Sound protocol compliance: Yes (low jitter)
- Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
- Configuration
- Display and jog: None
- Configuration: Through the built-in web server
- Status LEDs:
- Global status LEDs: Device, power, PoE power, RLinkX
- Port status LEDs: PoE, RLinkX, link/activity and port speed
- Colored RGB LEDs: No
- Physical
- Mounting: Rack
- Enclosure: Robust metal housing
- Dimensions (W x D x H): 482 x 204,3 x 44 mm (19″ x 8.04″ x 1.73″)
- Weight: 2.8 kg
- Packaging: 545 x 335 x 80 mm (21,5" x 13,2" x 3,15")
- Environment:
- Operating temperature: 0 to +50 °C
- Storage temperature: -10 to +70 °C
- Humidity (non condensing): 5 to 95% RH
- Noise level @1m:
- Max 30dBA (PoE or Non PoE, Ambient: 0 – 35°C)
- Max 39dBA (PoE or Non PoE, Ambient: 35 – 50°C)
- Certificates/Approvals: CE, RoHS
- Standards: EN 60950-1, EN 55022, EN 55024
- Product Codes
- Product codes:
- LU 01 00036 (GigaCore 12)
- LU 01 00036-POE (GigaCore 12 with PoE supply)
