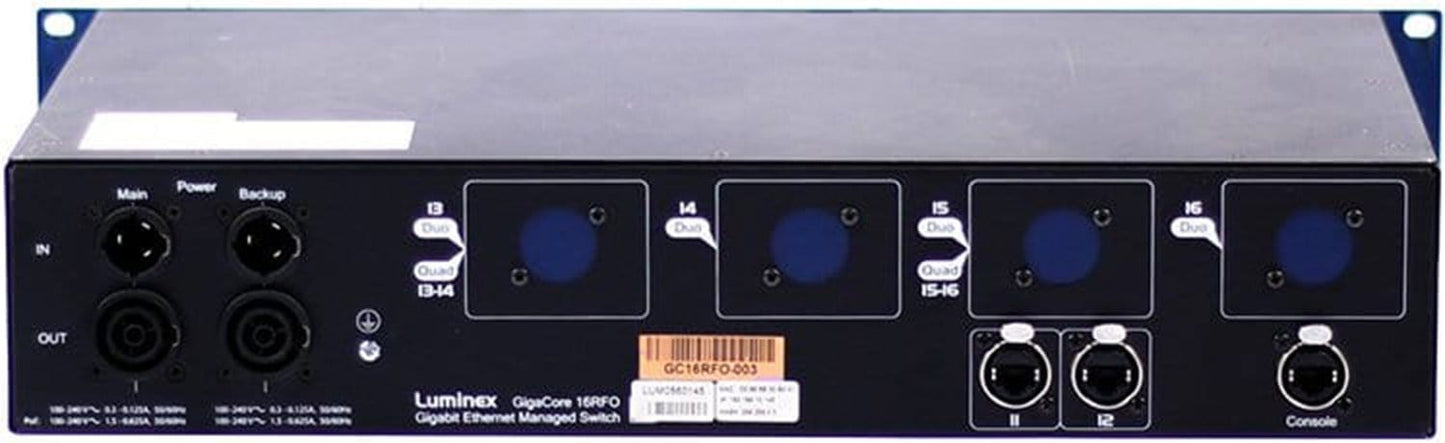

Luminex GC16RFO Network Switch

Luminex GC16RFO Network Switch

The GigaCore 16RFO is a unit designed without compromises, specifically with touring application in mind and with the feedback of key industry players. The unit comes with all the advanced functionalities of the GigaCore Ethernet switches range, in a fully touring oriented package. The 2U high device offers rugged optical connectors options such as OpticalCon, installable at the front or the rear of the unit, making a very flexible solution. Full backup on power supply is available, bringing 1 redundancy at power level. Front-end display, rugged connectors, and the easiest managed switch interface available on the market, make this product the ideal companion for a stressless tour.

Specifications:

• Weight: 4.9 kg
• Dimensions: 48.2 × 29.415 × 8.845 cm
• Most suitable applications: Touring and live events
• Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
• Fiber connectivity: 4 x slot for rugged fiber connectors
• Power connectivity: 2x Neutrik powerCON TRUE1 In/Out
• Serial: 1 x serial RJ45 console port
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes
• PoE supply: Optional on front ports only (up to 160W)
• Fan: 2
• Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
• Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
• Sound protocol compliance: Yes (low jitter)
• Memory: 4Mb
• MAC adress table: 8192 Entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput: 32Gbps
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
• Display and jog: Yes
• Status LEDs: Global status LEDs: Device, power, PoE power, RLinkX, Port status LEDs: PoE, RLinkX, link/activity and port speed
• Colored RGB LEDs: No
• Configuration: Through the built-in web server or with the front end display menu
• Profile manager: Yes
• Power input: 100-240VAC, 50-60Hz
• Backup power input: 100 – 240VAC
• Backup PoE power input: 100 – 240VAC (same connector as backup power input)
• Power consumption: Maximum 30W (maximum 180W with PoE Supply Unit)
• Fuse: 3.15A 250V Slow Blow
• Environment: Operating temperature: 0 to +50 °C, Storage temperature: -10 to +70 °C, Humidity (non condensing): 5 to 95% RH
• Enclosure: Robust metal housing
• Packaging: 545 x 420 x 140 mm (21,5" x 16,5" x 5,5")
• Certificates/Approvals: CE, RoHS
• Mounting: Rack
• Product codes: LU 01 00056-02 (GigaCore 16RFO Neutrik DUO MMF), LU 01 00056-03 (GigaCore 16RFO Neutrik DUO MMF + PoE), LU 01 00056-04 (GigaCore 16RFO Neutrik QUAD MMF), LU 01 00056-05 (GigaCore 16RFO Neutrik QUAD MMF + PoE), LU 01 00056-06 (GigaCore 16RFO Neutrik DUO SMF), LU 01 00056-07 (GigaCore 16RFO Neutrik DUO SMF + PoE), LU 01 00056-08 (GigaCore 16RFO Neutrik QUAD SMF), LU 01 00056-09 (GigaCore 16RFO Neutrik QUAD SMF + PoE), LU 01 00056-10 (GigaCore 16RFO Fibreco Junior 2 ch MMF), LU 01 00056-11 (GigaCore 16RFO Fibreco Junior 2 ch MMF + PoE), LU 01 00056-12 (GigaCore 16RFO Fibreco Junior 4 ch MMF), LU 01 00056-13 GigaCore 16RFO (FibreCo Junior 4 ch MMF + PoE), LU 01 00056-14 GigaCore 16RFO (FibreCo Junior 2 ch SMF), LU 01 00056-15 GigaCore 16RFO (FibreCo Junior 2 ch SMF + PoE), LU 01 00056-16 GigaCore 16RFO (FibreCo Junior 4 ch SMF), LU 01 00056-17 GigaCore 16RFO (FibreCo Junior 4 ch SMF + PoE), LU 01 00056-18 GigaCore 16RFO (Fiberfox 2 ch MMF), LU 01 00056-19 GigaCore 16RFO (Fiberfox 2 ch MMF + PoE), LU 01 00056-20 GigaCore 16RFO (Fiberfox 4 ch MMF), LU 01 00056-21 GigaCore 16RFO (Fiberfox 4 ch MMF + PoE), LU 01 00056-24 GigaCore 16RFO (Fiberfox 4 ch SMF), LU 01 00056-25 GigaCore 16RFO (Fiberfox 4 ch SMF + PoE)
• Dimensions (W X D X H): 482 x 294,15 x 88,45 mm (19" x 11.5" x 3,5")
• Weight: 6,1 kg
• Ethernet port speed: 1Gbps
• Position: 2
• Standards: EN 60950-1, EN 55022, EN 55024
• Jumbo frames: MTU up to 9600
