Lightware DVI HDCP 8 Inputs Card for Modular Matrix Switcher

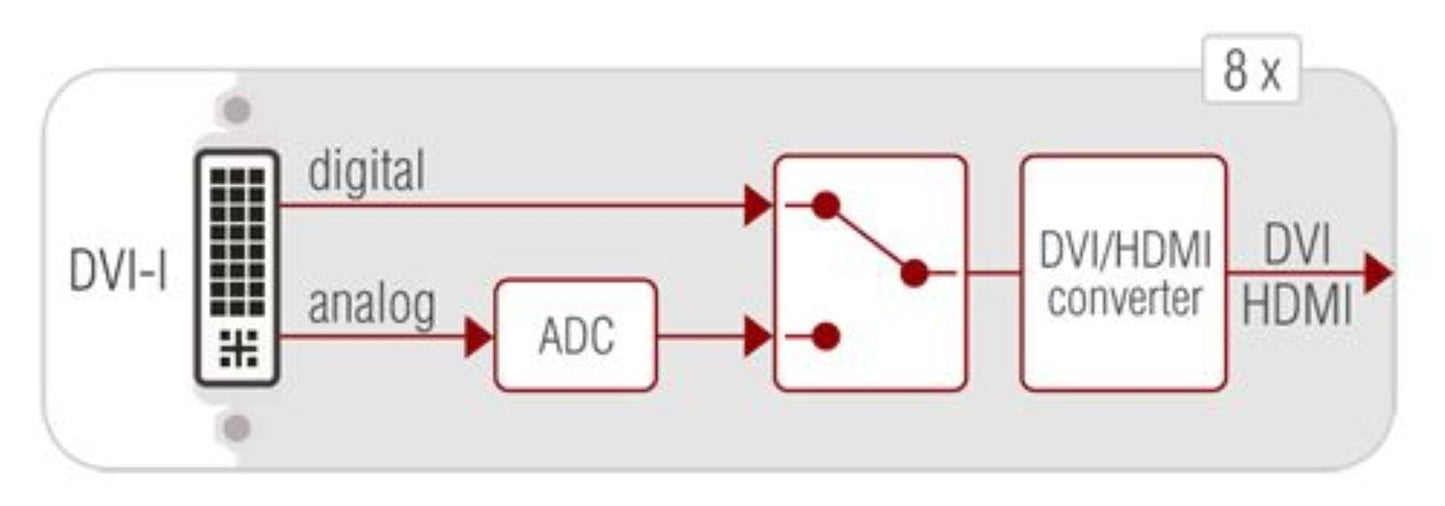

MX-DVII-HDCP-IB is an all-around Input Board which was designed to handle analog VGA, YUV, digital DVI and HDMI 1.3 video signals with HDCP compliancy.

Features:

• DVI-I (analog+digital) input board
• Digitizes VGA, YUV analog input formats and converts to HDMI or DVI
• 10-bit HD and SD; interlaced and progressive A/D conversion
• Accepts DVI and HDMI 1.3 digital signals with embedded audio
• HDCP compliant
• Autodetects input signal
• Deep color support
• Picture adjustments per input port, contrast, black level, color etc.
• Pixel Accurate Reclocking
• Advanced digital and analog EDID Management
• Adaptive DVI and HDMI cable equalization for up to 20 meters
