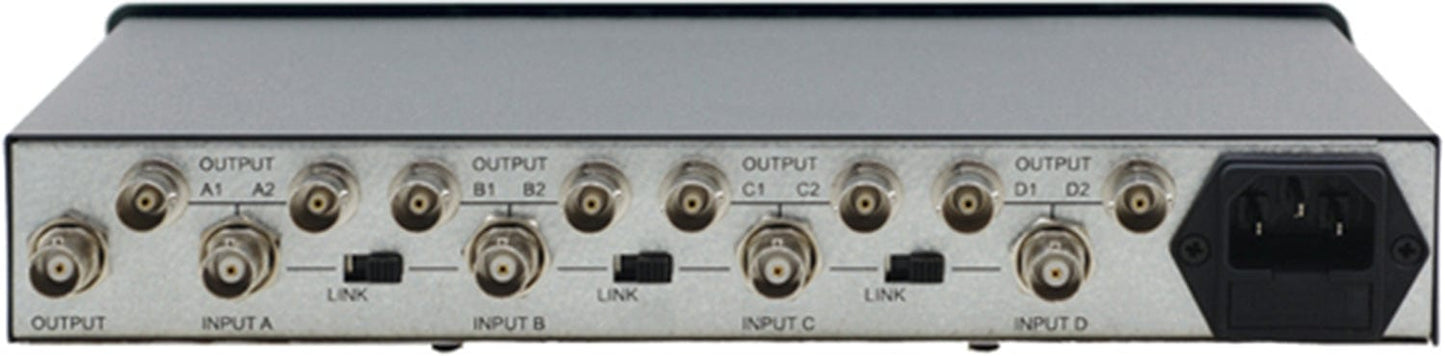

KRAMER VM42 Composite Video Switcher/Distribution Amplifier 4:2
The VM-42 is a high-performance distribution amplifier and switcher for composite video signals. It can be used as a 4x1 vertical interval switcher with each input becoming a 1:2 DA or it can take one input, provide correct buffering and isolation, and distribute the signal to eight identical outputs. It can also be configured as 2 1:4 DAs or as a 1:6 DA plus a 1:2 DA.
Features:
- Bandwidth - 200MHz (−3dB).
- Multi-Mode - Configure as a 1:8 DA, 4x1 switcher, & more.
- Vertical Interval Switching.
Specifications:
- Inputs: 4 composite video, 1Vpp/75Ω, on BNC connectors.
- Outputs: 4x2 + 1 composite video, 1Vpp/75Ω on BNC connectors.
- MAX. Video Output: 2Vpp.
- Video Bandwidth (-3DB): 200MHz.
- Diff. Gain: 0.12%.
- Diff. Phase: 0.11Deg.
- K-Factor: <0.05%.
- S/N Ratio: 73dB.
- Crosstalk: −40dB @10MHz.
- Coupling: DC.
- Power Consumption: 230V AC, 50/60Hz (115V AC USA) 4.6VA.
- Included Accessories: Power cord.
- Inputs: 4 composite video, 1Vpp/75Ω, on BNC connectors.
- Outputs: 4x2 + 1 composite video, 1Vpp/75Ω on BNC connectors.
- MAX. Video Output: 2Vpp.
- Video Bandwidth (-3DB): 200MHz.
- Diff. Gain: 0.12%.
- Diff. Phase: 0.11Deg.
- K-Factor: <0.05%.
- S/N Ratio: 73dB.
- Crosstalk: −40dB @10MHz.
- Coupling: DC.
- Power Consumption: 230V AC, 50/60Hz (115V AC USA) 4.6VA.
- Included Accessories: Power cord.
