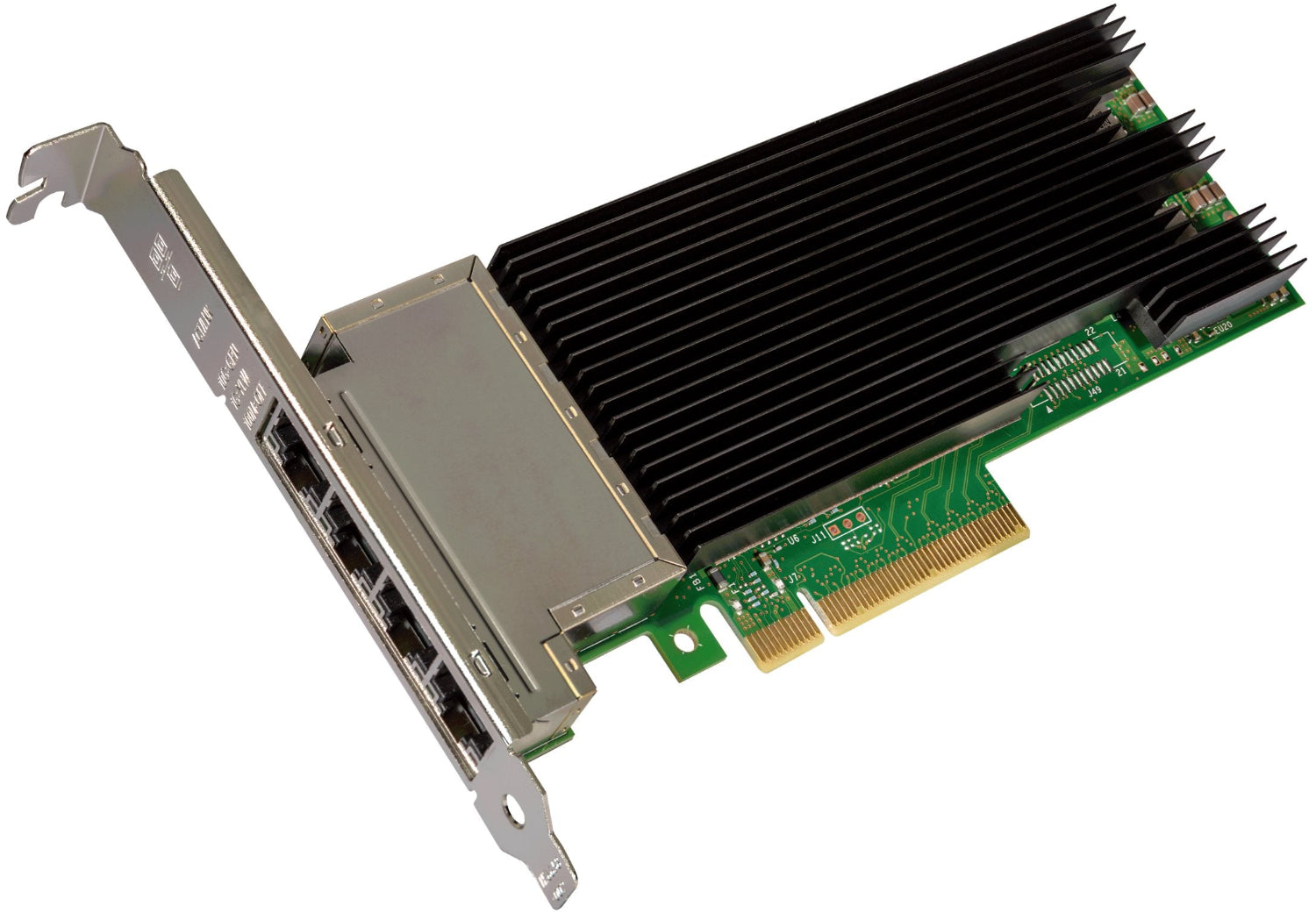

Intel Ethernet Converged Network Adapter X710-T4
Intel Ethernet Converged Network Adapter X710-T4
SKU: X710-T4 | Solotech ID#: 100839403
Shipping calculated at checkout.
Available options
Description
Intel Ethernet Converged Network Adapter X710-T4
- Network adapter
- PCIe 3.0 x8 low profile
- 10Gb Ethernet x 4
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Intel Ethernet Converged Network Adapter X710-T4 - Network adapter - PCIe 3.0 x8 low profile - 10Gb Ethernet x 4 |
| Manufacturer | Intel |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.7 cm |
| Dimensions & Weight / Height | 6.87 cm |
| Header / Brand | Intel |
| Miscellaneous / Product Color | Green |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 16.7 cm |
| Height | 6.87 cm |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 4 x 10GBase-T - RJ-45 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS, KCC, Directive 2011/65/EU, MSA SFF-8431 |
| Package Type | Bulk |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | Flow control, VLAN support, packet filtering, IPv6 support, TCP/IP offloading, QoS, VMDq, IPv4 support, teaming support, PXE support, LSO, GSO, RSS, SR-IOV, DCB, ALB, TSO, checksum offload support, UDP/IP offloading, WDT, iSCSI boot |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, SMB, NFS |
| Ports | 10Gb Ethernet x 4 |
| Remote Management Protocol | SNMP, RMON |
| Status Indicators | Port transmission speed, link/activity |
| Software / System Requirements | |
| OS Required | Linux Kernel 2.6, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Linux Kernel 3.x, Microsoft Windows Server 2012 R2 x64 Edition, VMware ESXi 5.5, SuSE Linux Enterprise Server 11 SP4, VMware ESXi 6.0, SuSE Linux Enterprise Server 12 SP1, Linux Kernel 4.x, Red Hat Enterprise Linux 6.8 (64-bit), Red Hat Enterprise Linux 7.3, FreeBSD 11, Microsoft Windows Server 2016 (64-bit) |
