Extron MDA4VEQ 4-Out Video Distribution Amplifier

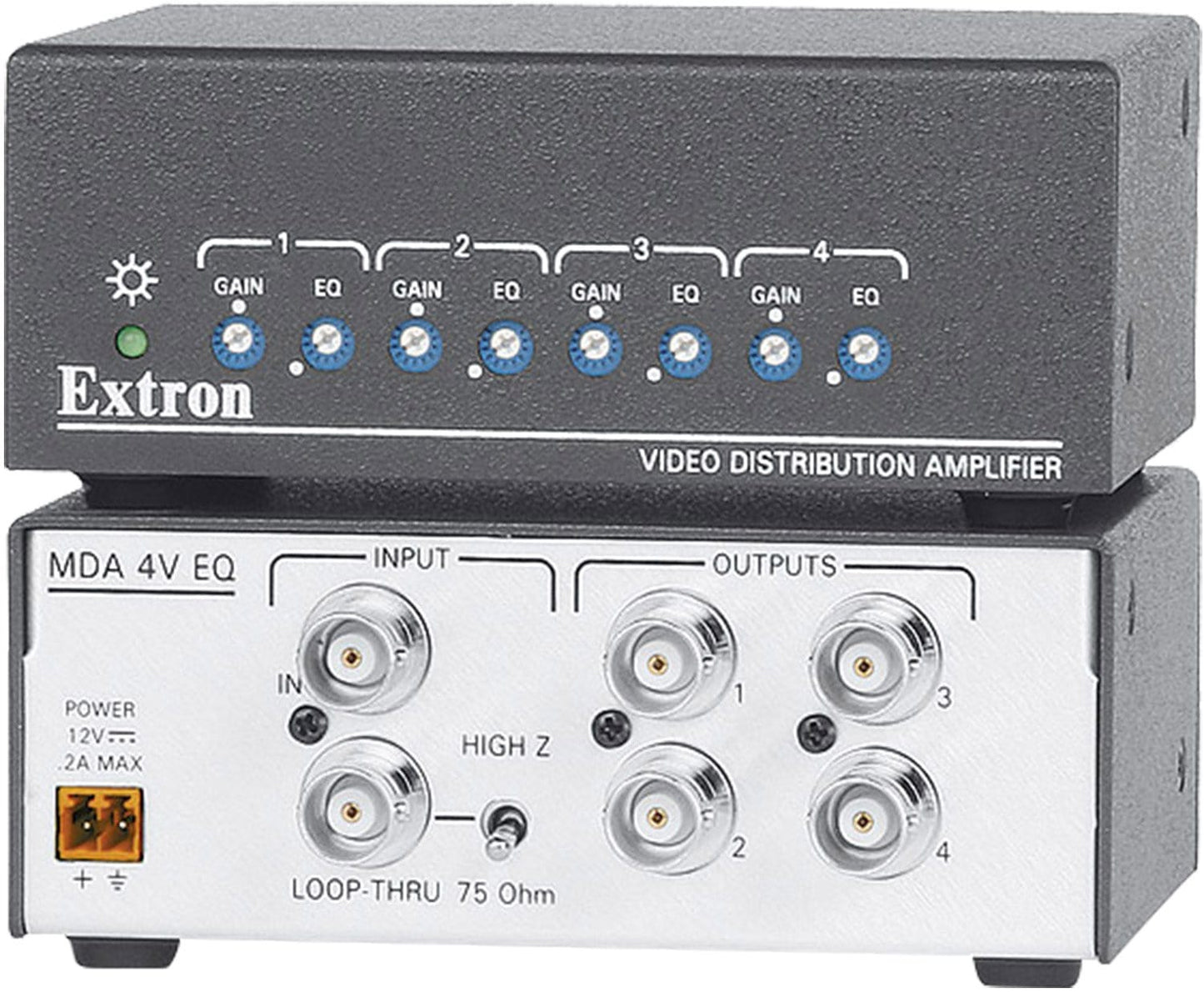

The Extron MDA 4V EQ is a compact, one input, four output composite video distribution amplifier. It provides 150 MHz (-3dB) video bandwidth with gain adjustments to allow for compensation of signal level loss that occurs over long cable runs, while EQ adjustments compensates for high frequency loss. The MDA 4V EQ is compatible with NTSC, PAL, and SECAM video signals, and allows for cable runs of 600 feet (180 meters) to 1,000 feet (300 meters) or more, depending on the quality of the coax cable. It also features passive loop-through capabilities, which provides the ability to add more amplifiers and create a larger DA system or drive a local monitor.

Features:

• Input: One female BNC connector
• Output: Four female BNC connectors and a passive loop-through
• 150 MHz (-3 dB) video bandwidth, fully loaded
• Variable gain and EQ adjustments
• Independent gain and EQ control per output
• Video loop-through
• 1U, quarter rack width metal enclosure
• External Extron Everlast™ power supply included, replacement part #70-1175-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption

Specifications:

• Video:
  • Gain: -1 dB to +3 dB (x 0.9 to x 1.4), adjustable per output
  • Equalization: 0 dB to +6 dB (x 1 to x 2) at 5 MHz, adjustable per output
  • Bandwidth: 150 MHz (-3 dB)
  • Output cable driving distance: Up to 1000 feet with Mini HR cable; up to 1500 feet with RG6 or RG59 cables
• Video input and loop through:
  • Number/signal type: 1 composite video input, 1 passive composite video passive loop-through
  • Connectors: 1 female BNC (input), 1 female BNC (loop-through)
  • Nominal level: 1 Vp-p
  • Minimum/maximum levels: 0.4 V to 2 Vp-p with no offset at unity gain
  • Impedance: 75 ohms
  • Return loss:
  • DC offset (max. allowable): 4.0 V, AC coupled
• Video output:
  • Number/signal type: 4 composite video
  • Connectors: 4 female BNC
  • Nominal level: 1 Vp-p
  • Minimum/maximum levels: 0.4 V to 2 Vp-p
  • Impedance: 75 ohms
  • Return loss:
• Sync:
  • Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM
• General:
  • External power supply: 100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 0.5 A, regulated
  • Power input requirements: 12 VDC, 0.2 A
  • Temperature/humidity:
    • Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
    • Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
  • Cooling: Convection, no vents
  • Mounting:
    • Rack mount: Yes, with optional 1U rack shelf
    • Furniture mount: Yes, with optional under-desk mounting kit
    • Pole mount: Yes, with optional mini projector mounting kit or multi-product projector mounting kit
  • Enclosure type: Metal
  • Enclosure dimensions:
    • 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
    • (4.3 cm H x 10.9 cm W x 7.6 cm D)
    • (Depth excludes connectors.)
  • Product weight: 0.7 lbs. (0.3 kg)
