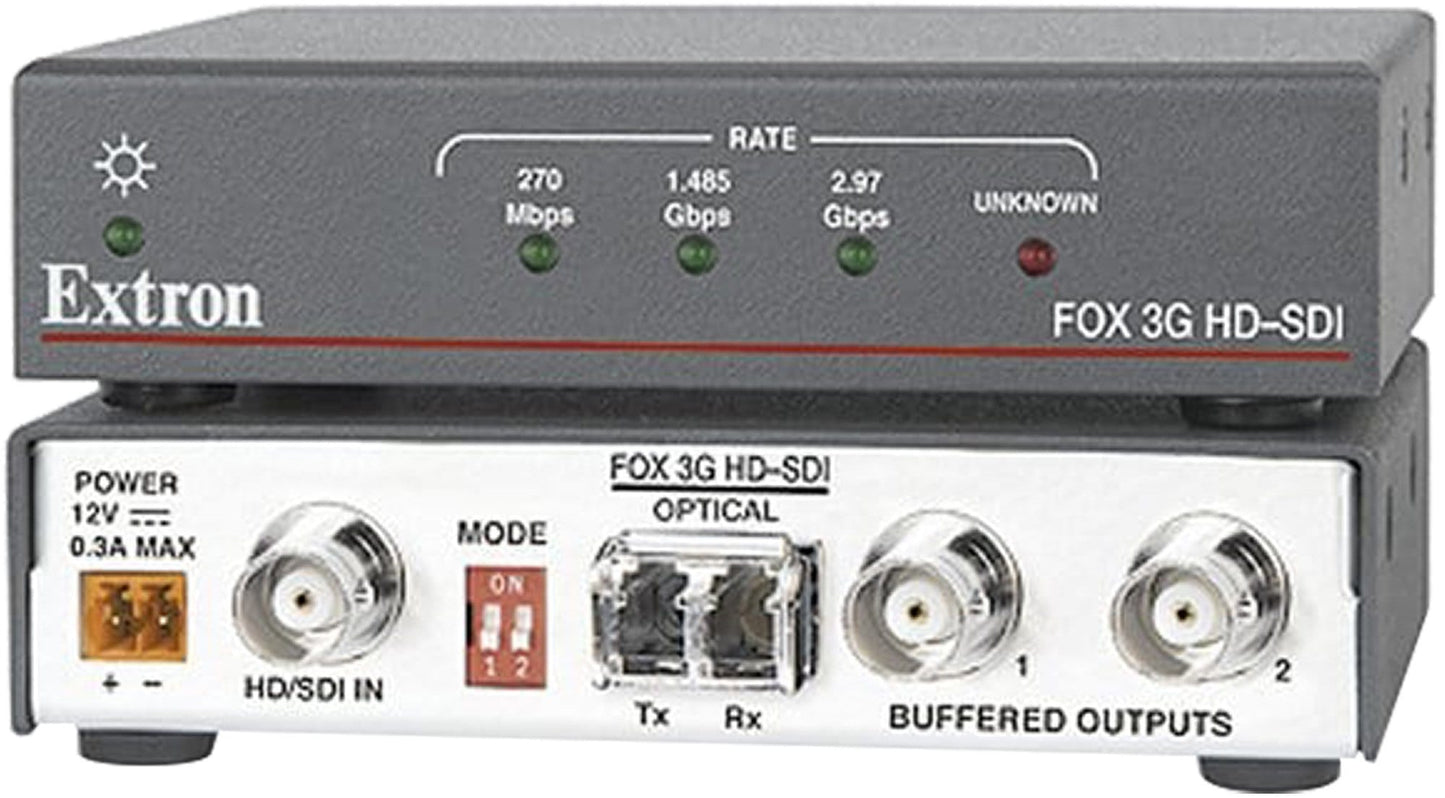

Extron FOX HD-SDI-SM 3G-SDI over Fiber Extender
The Extron FOX 3G HD-SDI Fiber Optic Extender enables long haul transmission of 3G-SDI video, with embedded audio and metadata, over a single fiber. Engineered for reliability and exceptional high-resolution image performance, it uses Extron all-digital technology to transmit signals up to 2.97 Gbps including 3G-SDI, HD-SDI, and SDI. To optimize SDI signal transmission to and from the FOX 3G HD-SDI, input signals are automatically equalized and output signals are reclocked. The FOX 3G HD-SDI can function as a transmitter and a receiver in various user-configurable modes. It is ideally suited for use in digital signage, broadcast and production, rental and staging, and medical applications.
Features:
-
Extends 3G-SDI, HD-SDI, and SDI signals very long distances over a single fiber — The FOX 3G HD-SDI supports data rates up to 2.97 Gbps, and complies with SMPTE 259M, 292M, 424M, and ITU digital video standards. The FOX 3G HD-SDI P SM also complies with SMPTE 297-2006.
- Input: BNC connector
- Outputs: Two BNC connectors
-
Passes embedded audio, ancillary ID and metadata information, and SD/HD-SDTI digital video signals — Passes all data allowed within published SMPTE and ITU digital video standards, including embedded audio, ancillary ID and metadata information, and SDTI, SMPTE 305M, and HD-SDTI, SMPTE 348M, digital video signals.
- Supports data rates from 270 Mbps to 2.97 Gbps
-
Input equalization and reclocking on buffered outputs — The FOX 3G HD-SDI automatically equalizes incoming signals, and reshapes and restores signals on its buffered outputs.
-
Immunity to pathological signal patterns -
FOX 3G HD-SDI P SM — The FOX 3G HD-SDI P SM is immune to pathological signals, including test patterns defined by SMPTE RP 178 and SMPTE RP 198 for 3G-SDI, HD-SDI and SDI.
-
Dual buffered outputs — Provide additional system capability. When the FOX 3G HD-SDI is configured as a dedicated transmitter, the outputs can also be used for previewing on a local monitor.
-
Daisy-chain capability — When configured as a dedicated receiver, multiple FOX 3G HD-SDI units can be daisy-chained so that displays in multiple locations can be served from a single transmitter location.
- 3G-SDI transceiver sends to and receives from a second FOX 3G HD‑SDI unit over fiber in bidirectional transceiver mode
- Available as an 850 nm multimode model for moderate-range transmissions up to 2 km (1.25 miles) and a 1310 nm singlemode model for extreme distances up to 30 km (18.75 miles)
- Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment
- Real-time status LED indicators for troubleshooting and monitoring
- Compatible with Extron FOX Matrix Switchers for signal distribution systems up to 1000x1000 and larger
- Compatible with Extron FOX Series distribution amplifiers
-
JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
-
1" (2.5 cm) high, quarter rack width metal enclosure — With a low profile enclosure, the FOX 3G HD-SDI can be conveniently and discreetly installed in a variety of locations.
-
External Extron Everlast™ power supply included, replacement part #70-1175-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
- Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
Specifications:
- Optical fiber interconnection between transmitter and receiver
- Number/type: 1 fiber optic
- Connectors: 1 LC connector
- Operating distance:
- Singlemode: 30 km (18.75 miles) with singlemode (SM) cables with an SM unit
- Multimode:
- 500 m (1640') with 62.5 µm OM1 multimode (MM) cables with an MM unit
- 1 km (3280') with 50 µm OM2 multimode (MM) cables with an MM unit
- 2 km (6561') with 50 µm OM3/OM4 2000 MHz bandwidth laser optimized multimode (MM) cables with an MM unit
- Nominal peak wavelength: 850 nm for MM units; 1310 nm for SM units
- Transmission power:
- Singlemode: -5 dBm, typical
- Multimode: -5 dBm, typical
- Maximum receiver sensitivity:
- Singlemode: -18 dBm, typical
- Multimode: -12 dBm, typical
- Optical loss budget:
- Singlemode: 13 dB, maximum
- Multimode: 7 dB, maximum
- Video
- Signal type: HD-SDI, SDI, and 3G-SDI digital video signals
- Gain: Unity
- Resolution: 8 or 10 bits, automatic
- Data rates: 270 Mbps, 1.485 Gbps, 2.970 Gbps
- Operation standards:
- All models: SMPTE 259M-C, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120
- FOX 3G HD-SDI P: SMPTE 297-2006, SMPTE RP 178, SMPTE RP 198
- Auto data rate lock: Yes
- Video input — transmitter
- Number/signal type: 1 single link SDI, HD-SDI, or 3G-SDI digital component video
- Connectors: 1 female BNC
- Data rates: 19 Mbps to 2.97 Gbps
- Nominal level: 0.8 Vp-p
- Minimum/maximum levels: 0.5 V to 1 Vp-p with no offset
- Impedance: 75 ohms
- Return loss: ≥15 dB @ 5 MHz to 1.5 GHz
- DC offset (max. allowable): 5 V
- Input coupling: AC
- Input cable equalization: Automatic for up to -30 dB of cable loss
- 3G-SDI:
- 60 m (200') using Extron RG6 cable
- 45 m (150') using Extron RG59 cable
- HD-SDI:
- 120 m (400') using Extron RG6 cable
- 90 m (300') using Extron RG59 cable
- SDI:
- 150 m (500') using Extron RG6 cable
- 120 m (400') using Extron RG59 cable
- Video output — receiver
- Number/signal type: 2 single link SDI, HD-SDI, or 3G-SDI digital component video
- Connectors: 2 female BNC
- Re-clocking: Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, or bypassed for unrecognized rates
- Nominal level: 0.8 Vp-p
- Minimum/maximum levels: 0.5 V to 1.0 Vp-p
- Impedance: 75 ohms
- Return loss: >25 dB @ 100 MHz
- DC offset: ±5 mV with input at 0 offset
- General
- Power supply:
- External
- Input: 100-240 VAC, 50-60 Hz
- Output: 12 VDC, 0.5 A, 6 watts
- Power input requirements: 12 VDC, 0.3 A
- Temperature/humidity:
- Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
- Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
- Cooling: Convection, no vents
- Mounting:
- Rack mount: Yes, with optional rack shelf kit
- Furniture mount: Yes with optional through-desk or under-desk mounting kit
- Pole mount: Yes, with optional pole mounting kit
- Enclosure type: Metal
- Enclosure dimensions:
- 1.0" H x 4.3" W x 3.0" D (quarter rack wide)
- (2.5 cm H x 10.9 cm W x 7.6 cm D)
- (Depth excludes connectors.)
- Product weight: 0.5 lb (0.3 kg) per each unit
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Regulatory compliance
- Safety: CE, c-UL, UL
- EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI
- Product warranty: 3 years parts and labor
