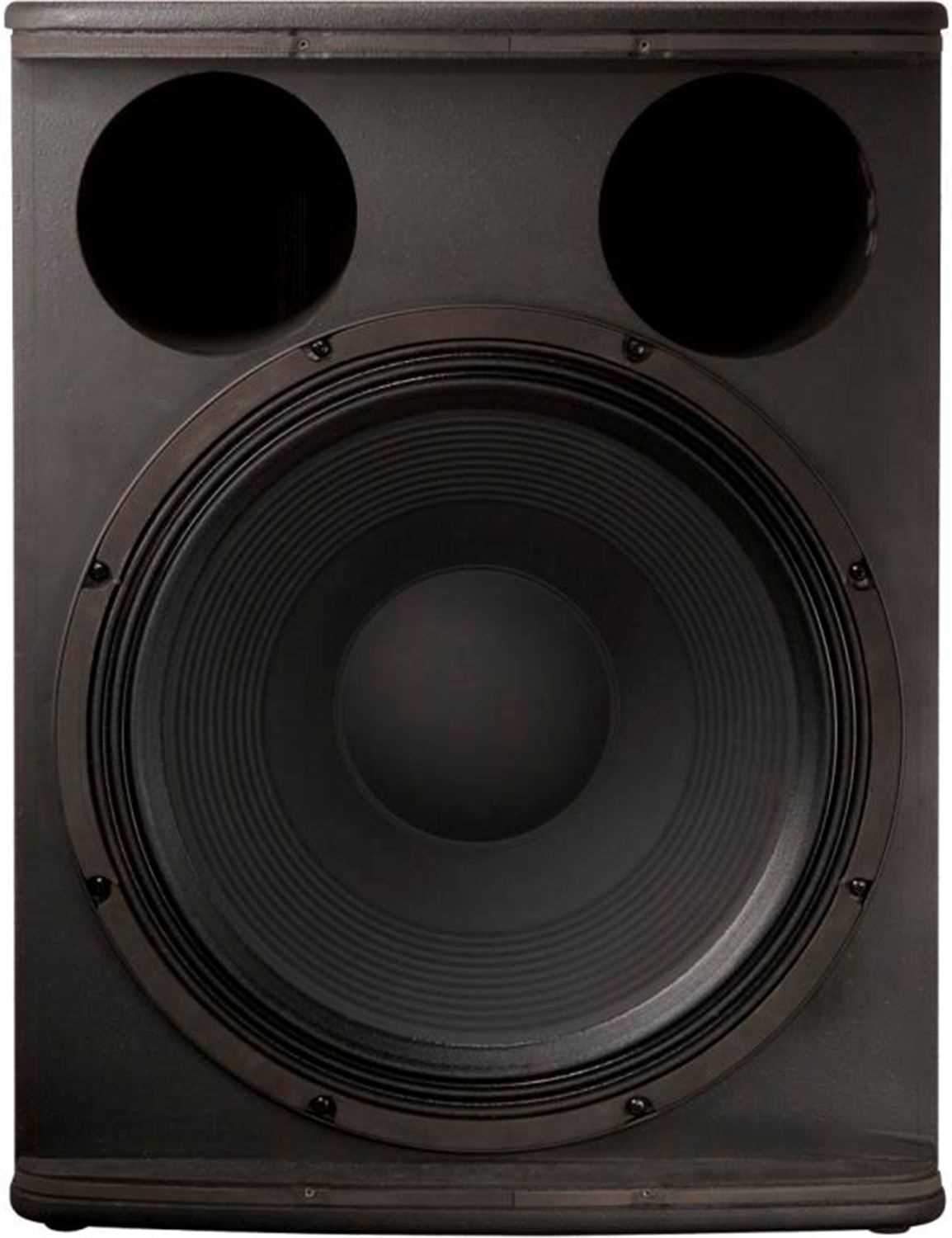

Electro-Voice ELX118 18-Inch Passive Subwoofer

More Electro Voice products

Write a review Q&A SKU: ELX118 Solotech ID#: 59056
1 of 3
Available options

Product attributes

  • Free shipping

More options

    Need help? Contact our product specialists.

    View full details

    Need help? Contact our product specialists.

    Description

    Electro-Voice ELX118 18-Inch Live X Passive Subwoofer

    Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.

    Features:
    • Designed for House of Worship, Pro Music, and other applications.
    • 18" woofer provides extended low-frequency output
    • 32 Hz – 200 kHz frequency range 96 dB SPL sensitivity; 134 dB max SPL
    • 400 W continuous and 1600 W peak power handling
    • Rugged wood cabinet—supports pole-mounted or stacked Live Loudspeakers
    Specifications:
    • Axial Sensitivity: 96 dB
    • Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
    • Frequency Response (-3 dB): 50 Hz - 100 Hz Hz
    • Frequency Response (-10 dB): 35 Hz - 200 Hz Hz
    • Recommended High-Pass Frequency: 30 Hz
    • Max. SPL/1m (calc): 134 dB
    • Coverage: (Nominal -6 dB) H° Omnidirectional °
    • Coverage: (Nominal -6 dB) V° Omnidirectional °
    • LF Transducer: (1) EVS-18K, 457mm (18") Woofer
    • HF Transducer: N/A
    • Crossover Frequency: N/A Hz
    • Nominal Impedance (Passive): 8 Ohms
    • Minimum Impedance: 6.7 Ohms
    • Connector Type: Dual NL4
    • Grill: 18GA Steel with Black Powdercoat
    • Height: 661 mm (26.02")
    • Width: 507 mm (19.96")
    • Depth: 574 mm (22.6")
    • Weight Net: 31.8 kg (70.11 lbs)
    • Shipping Weight: 35.4 kg (78.04 lbs)
