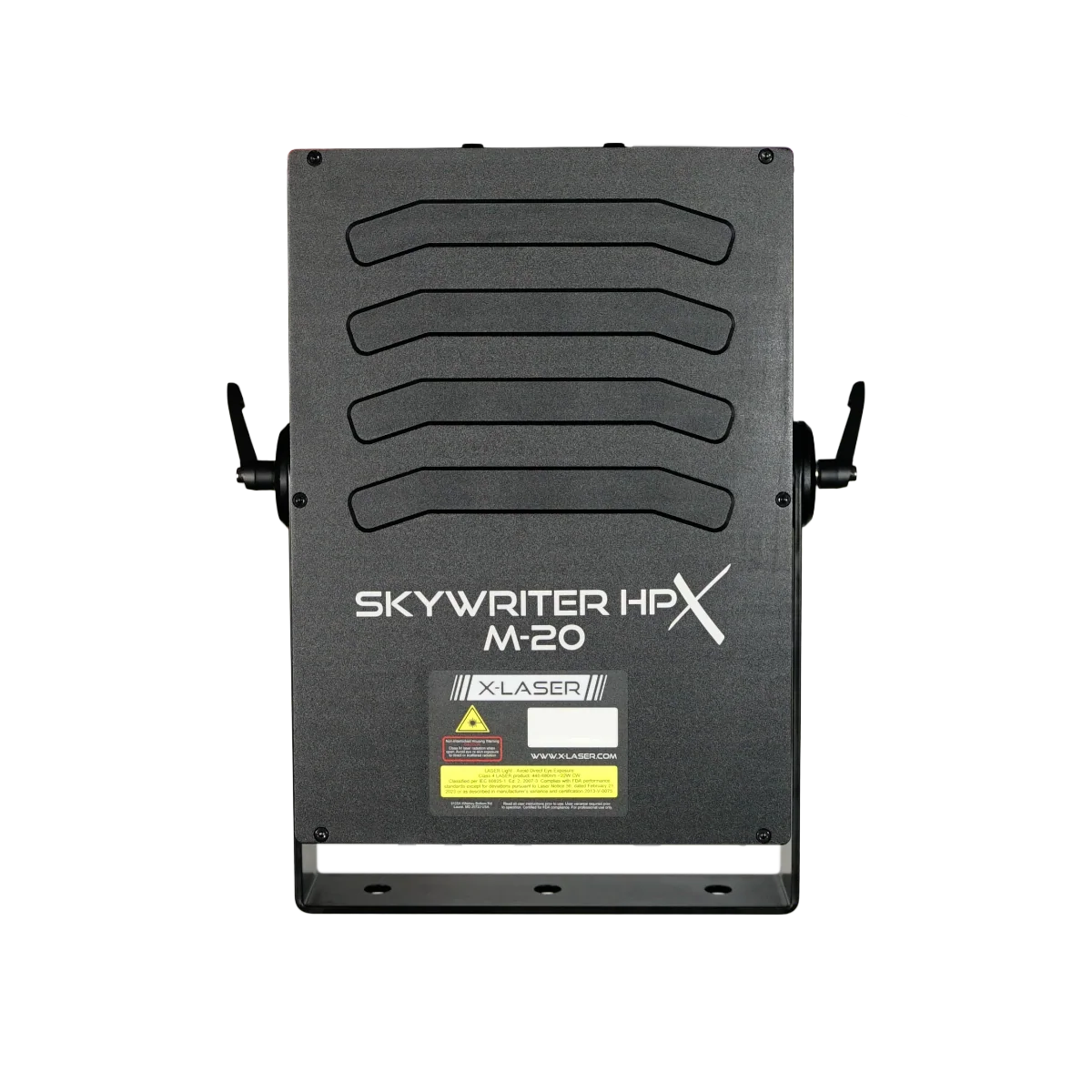

Elation SKYWRITER HPX M-20 SKYWRITER 20W PRO LASER FIXTURE W MERCURY
The X-Laser Skywriter HPX M-20 strikes an ideal balance between power and efficiency, delivering 20 watts of full-color RGB output for high-impact laser shows. Designed for production professionals, this fixture offers excellent value for mid-range applications—from medium-sized indoor venues and larger performance spaces to outdoor events and festival stages.
Thanks to its integrated Mercury Laser Control System, the M-20 is fully compatible with lighting consoles using DMX, Art-Net, or sACN. It features over 450 gobos, 11 digital prisms, 50 color macros, and 60 motion macros with adjustable speed and amplitude, giving you the creative flexibility you'd expect from any other top-brand programmable lighting fixture. With over 1,000 analog-mixed RGB colors available, you’ll have a rich palette for show design.
Built for durability and reliability, the M-20 has a sealed optical deck that shields internal optics from wind, dust, and moisture. Cooling is handled by an array of external fans and massive heat-sink surfaces, maintaining stable operation even during long or demanding shows.
Despite its 20W output, the Skywriter HPX M-20 is relatively efficient: it draws around 280W typical power (with up to 400W peak), which makes for a solid power-to-performance ratio.
Every unit is double-quality checked in a 26-point inspection to ensure reliability, and it comes backed by X-Laser’s 2-year “no-hassle” warranty. As a Class 4 high-powered laser, it requires an FDA variance—but the free EZ Variance Kit and X-Laser's industry-leading variance support can help simplify that process.
Whether you're a production company, touring act, or rental house, the Skywriter HPX M-20 delivers pro-level brightness, control, and dependability, while maintaining a smart power draw and a strong value proposition.
Specifications
-
Source
- 20W Balanced RGB Laser Engine
- Direct-Injection Diode Modules
- Red: 638 nm
- Green: 520 nm
- Blue: 450 nm
- 6.5W red, 6.5W green, 8.0W blue
-
Photometrics / Optics
- High-Speed Closed-Loop Galvanometers
- Max Scan Angle 45º
- 30,000 PPS Scanner Speed at 8º Scan Angle
- Beam Divergence: <1.2 mRad
- Fully Sealed Optical Deck
-
Electrical / Thermal
- 90-246V AC Auto-Switching
- Power draw: 400W peak
- Neutrik PowerCON TRUE1
- Operating range: 30º F to 105º F (-1º C to 41º C)
-
Other
- FDA / IEC Hazard Class IV
- U.S. FDA Variance Required
-
Control and Interface
- X-Laser Mercury integrated, 2.25" LCD
- Fixture profiles for all major console brands
- EtherStop combined remote stop and control data in / thru
- ILDA in / thru
- PowerCON TRUE1 in / thru
- 5-pin DMX in / thru
-
Color and Effects
- Additive RGB Analog Color Mixing
- 1,000+ Colors
- 50 Color Macros
- 11 Digital Prisms
- 450+ “Gobos” / Digital Patterns Built-In
- 60 Motion Macros with variable speed and amplitude
-
Dimensions / Physical / Materials
- 14.0” L x 13.4” W x 7.7” H (12.4” H w/ yoke up)
- (355 mm x 340 mm x 195 mm; 314 mm yoke up)
- Weight: 23lbs (10.4 kg)
- Rugged 6061 Aluminum Enclosure
- IP Rating: IP53
