Description

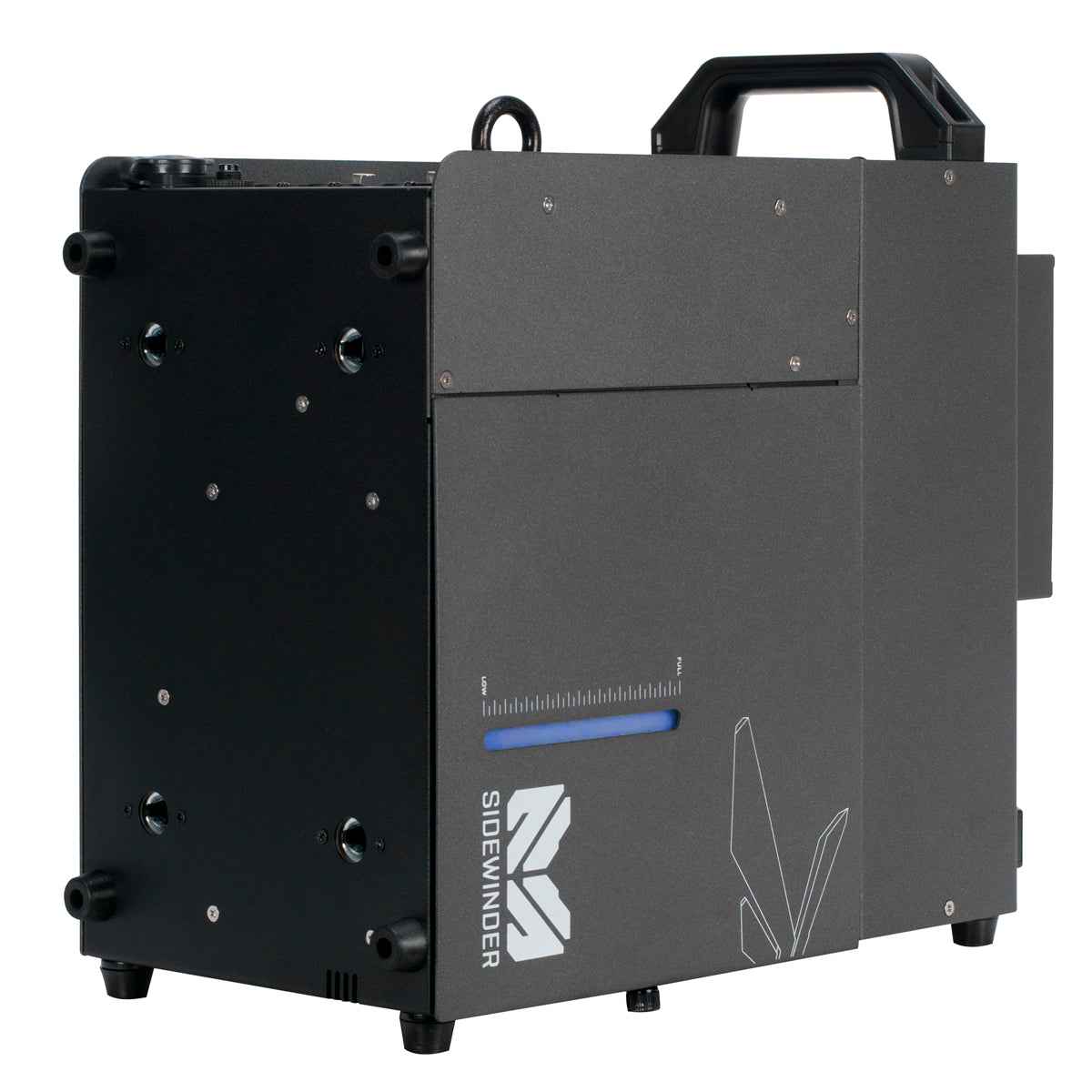

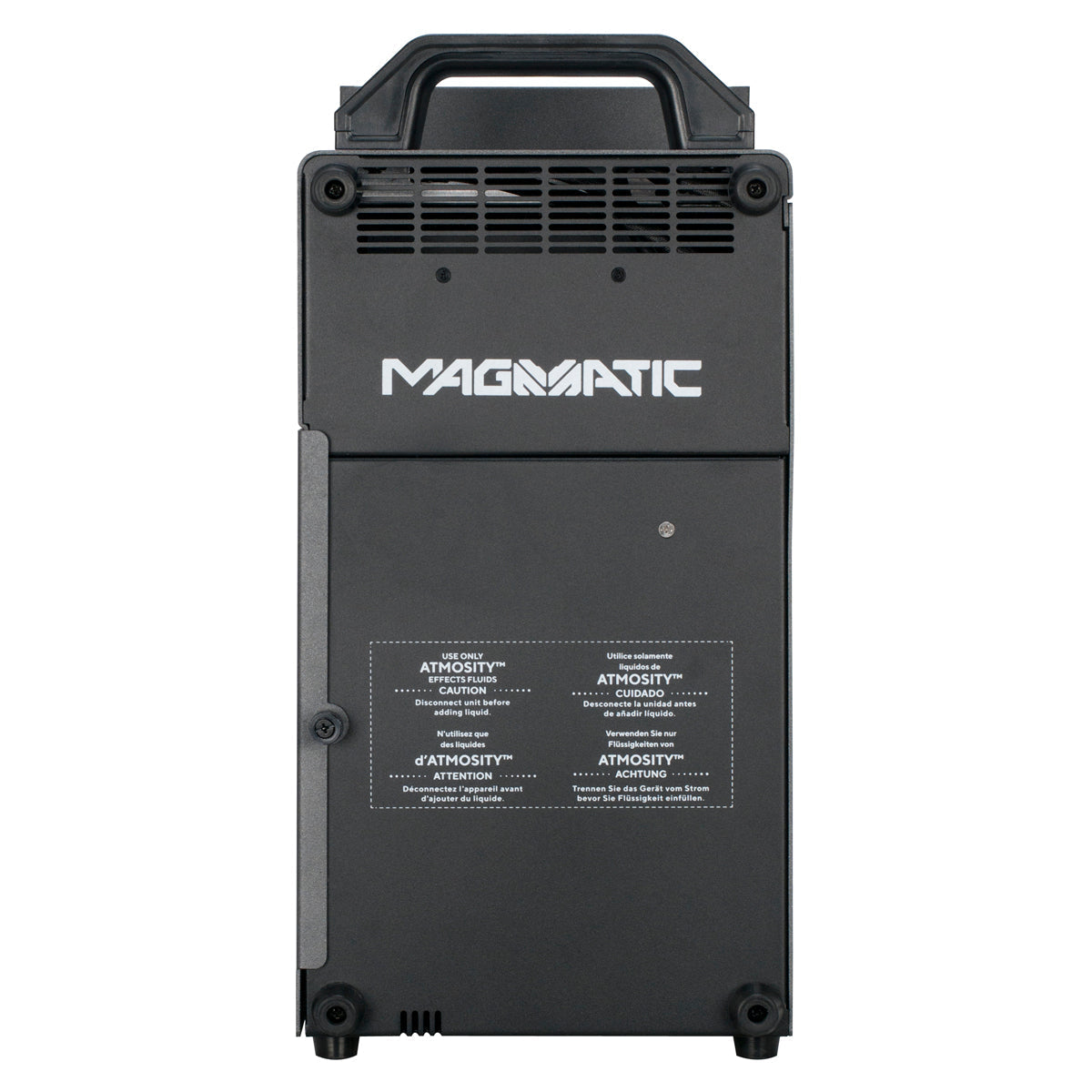

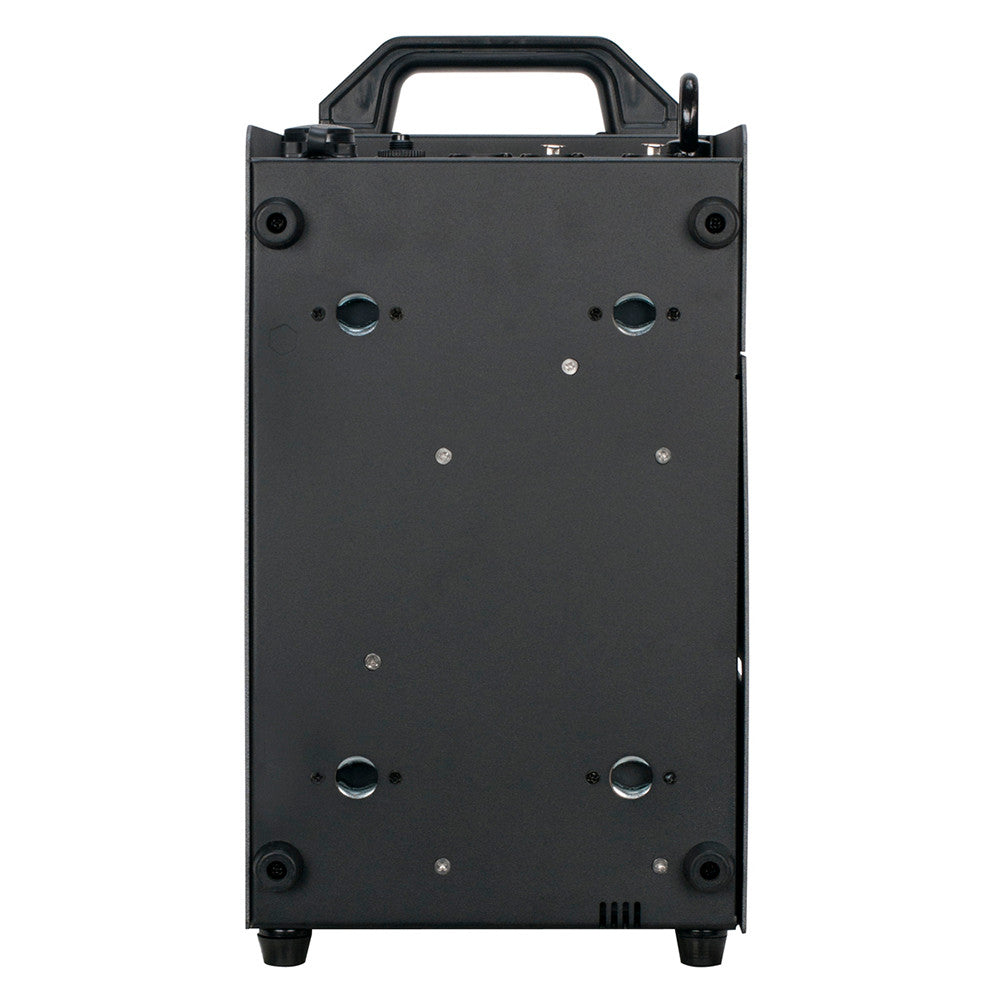

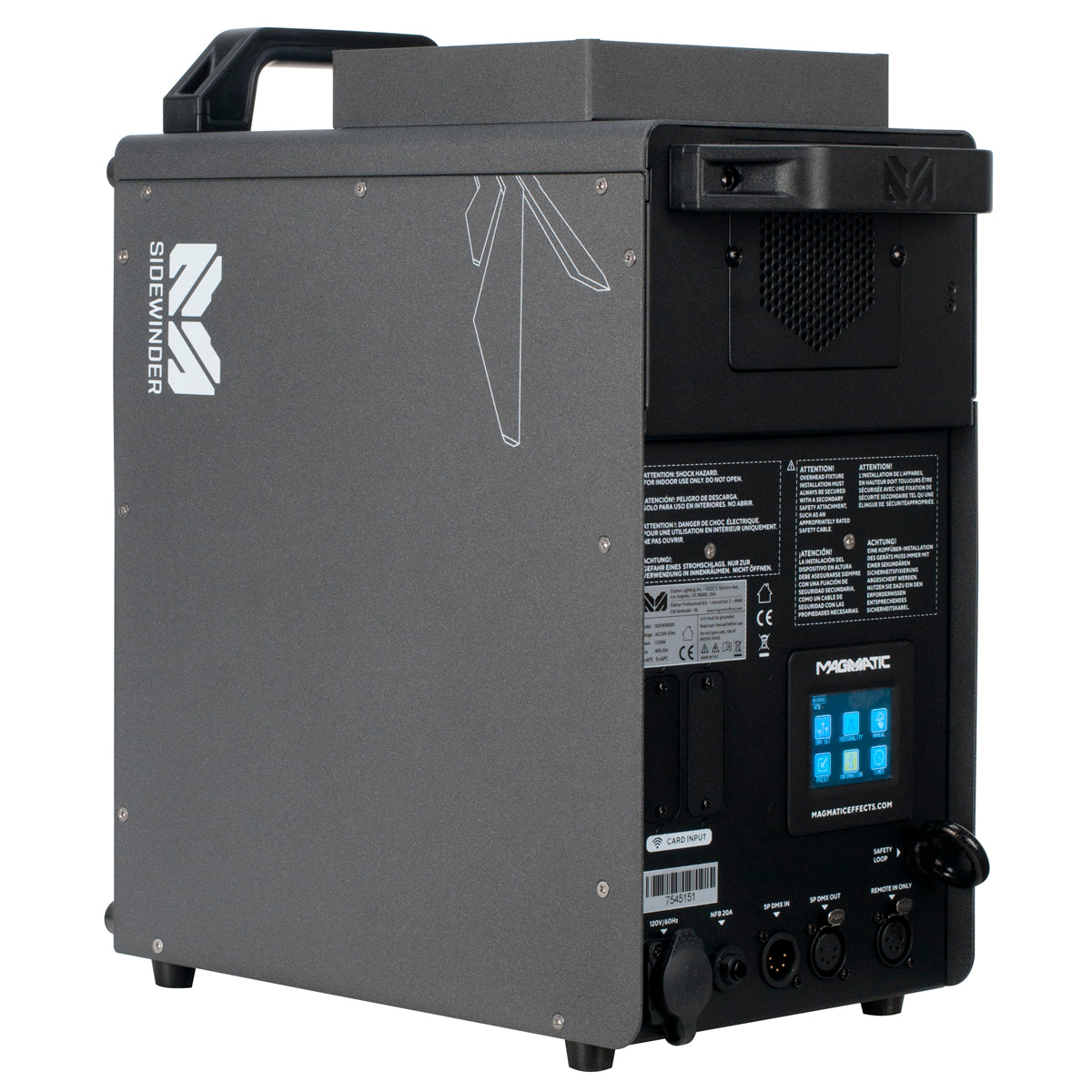

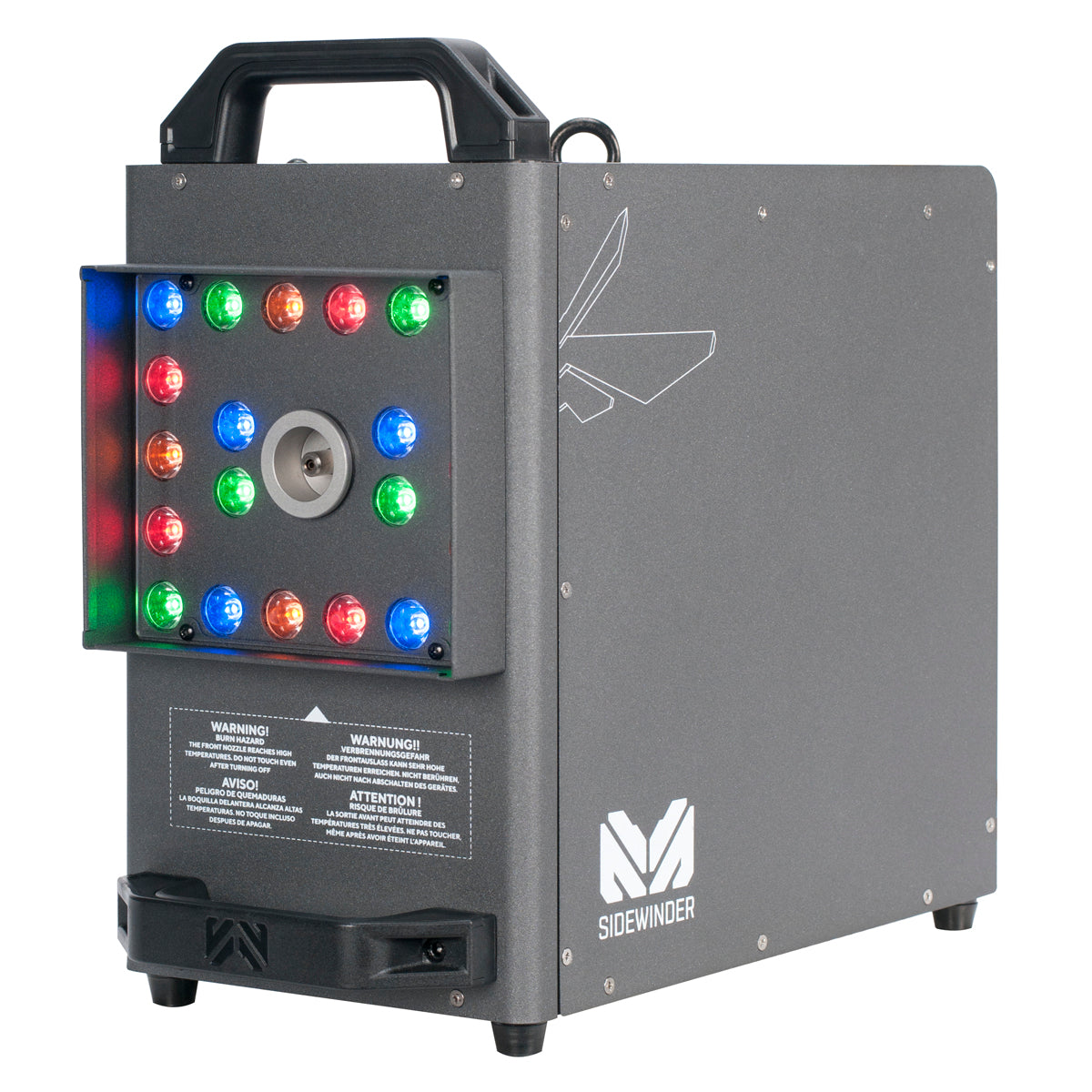

Elation Sidewinder;1600W high velocity CO2 simulator
The MAGMATIC SIDEWINDER is a high-velocity CO2 simulator fog machine, including 22 x 3-watt RGBA LEDs (Red X5 Green X6 Blue X6 Amber X5). The Sidewinder can burst fog in multiple positions, rotating 180° degrees. Equipped with an easy to use onboard LCD touch screen control panel, intuitive DMX-512, RDM control, durable aluminum housing, and optional wired and wireless remote control options.
Features
- 50,000 cu.ft per minute
- Four, 8-second 20-ft bursts
- 180° multi position fog burst

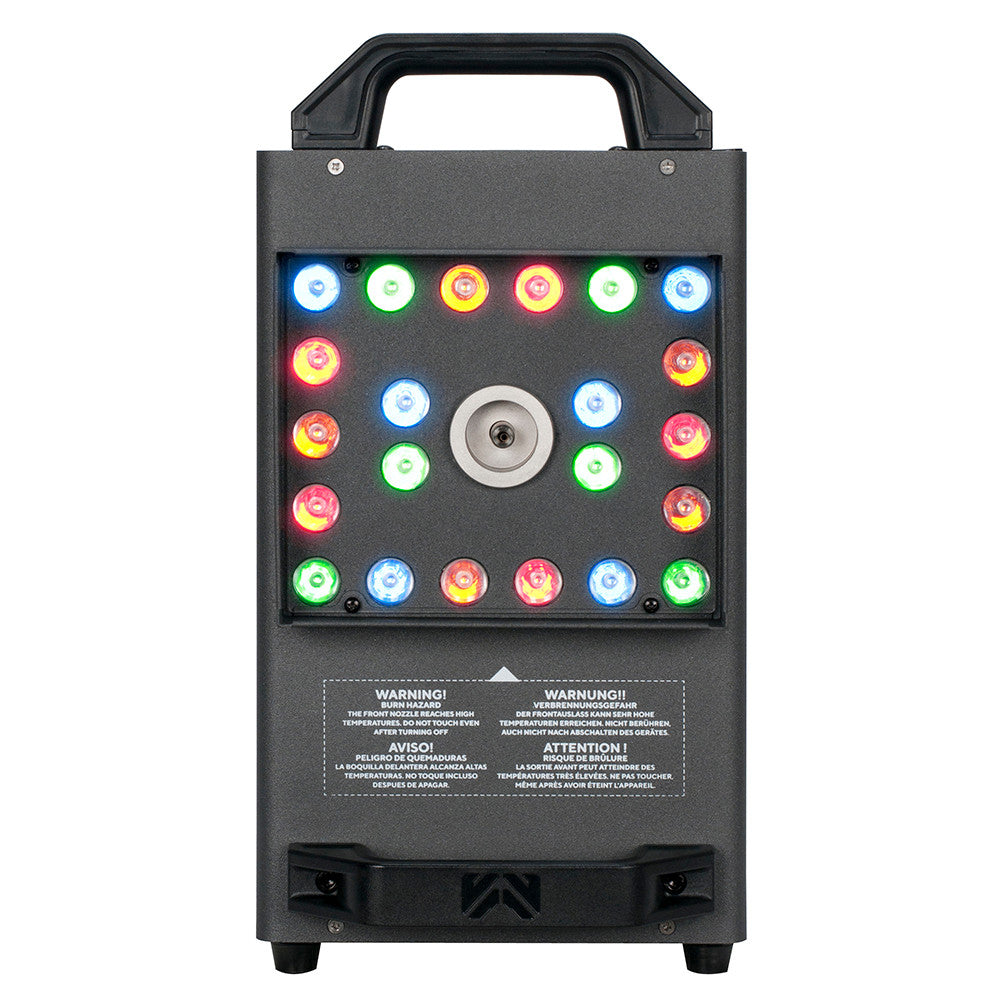

- 22, 3 watt RGBA LED's (Red X5 Green X6 Blue X6 Amber X5)
- Use of LEDs even without the use of Fog
- Durable, tour-ready, aluminum housing
Specifications
-
PERFORMANCE
- Rated Power: 1450W
- Max Output: 50,000 CFM* (cu ft/min.)
- Max Continuous Output: 8 Seconds
- Max Throw Distance: 20 Feet
- Initial Ready Time: 9 Minutes
- Cycling Ready Time: 1 Minute
- Fluid Capacity: 2.5L
- Fluid Consumption: 180ml/min.
-
COMPATIBLE FLUID
- Atmosity Flash Fog Fluid (AFF-2L, AFF-4L , AFF-20L)
-
CONSTRUCTION
- Thermally Protected Heat Exchanger

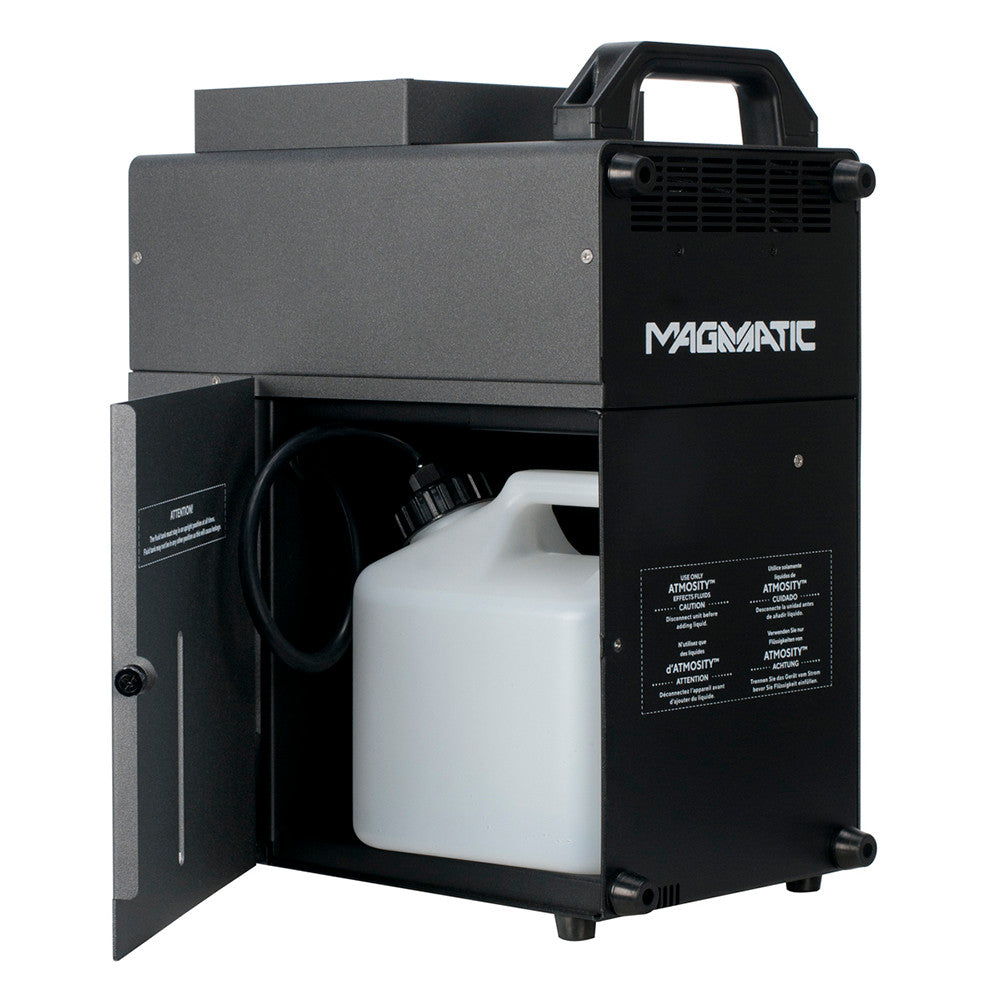

- Removable Fluid Reservoir

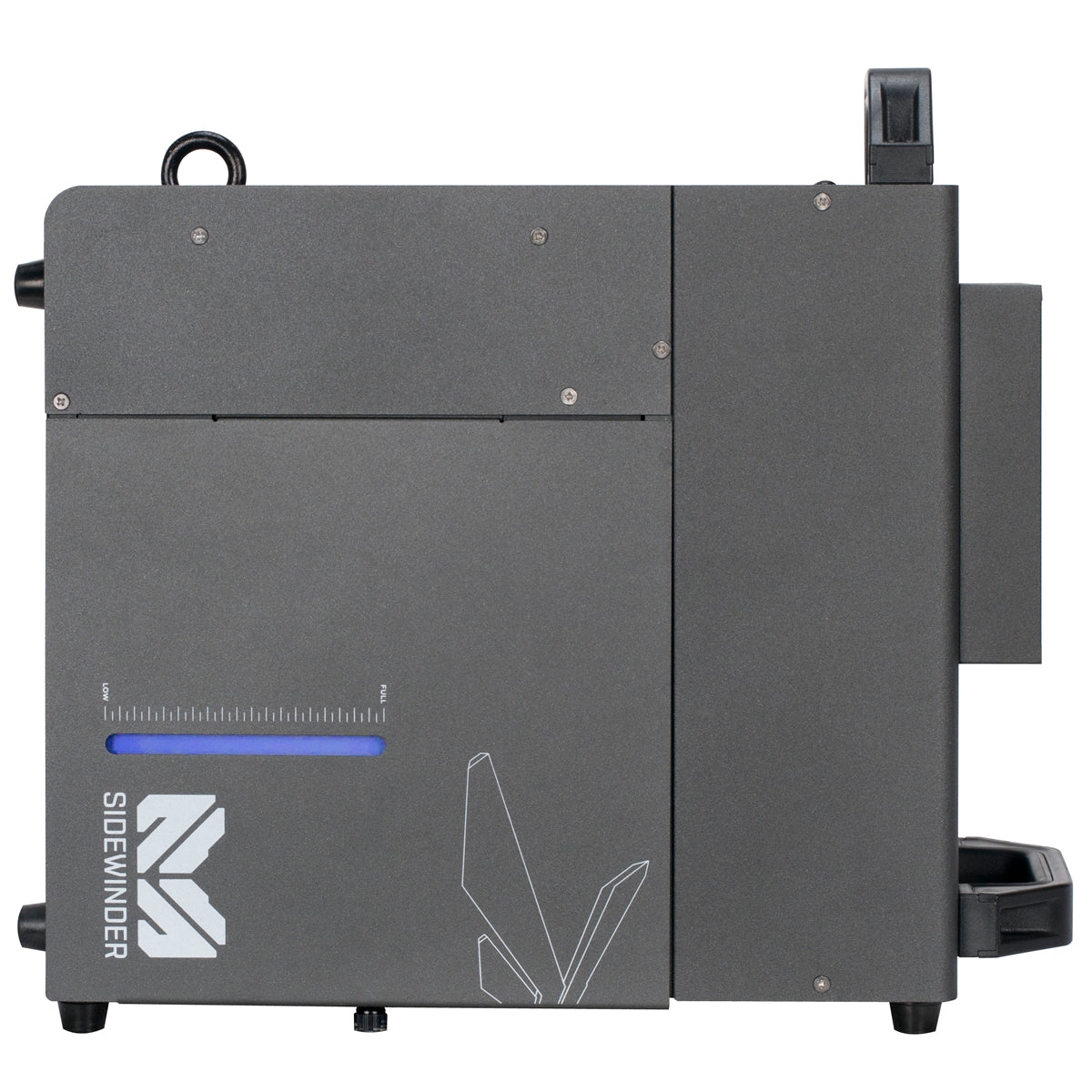

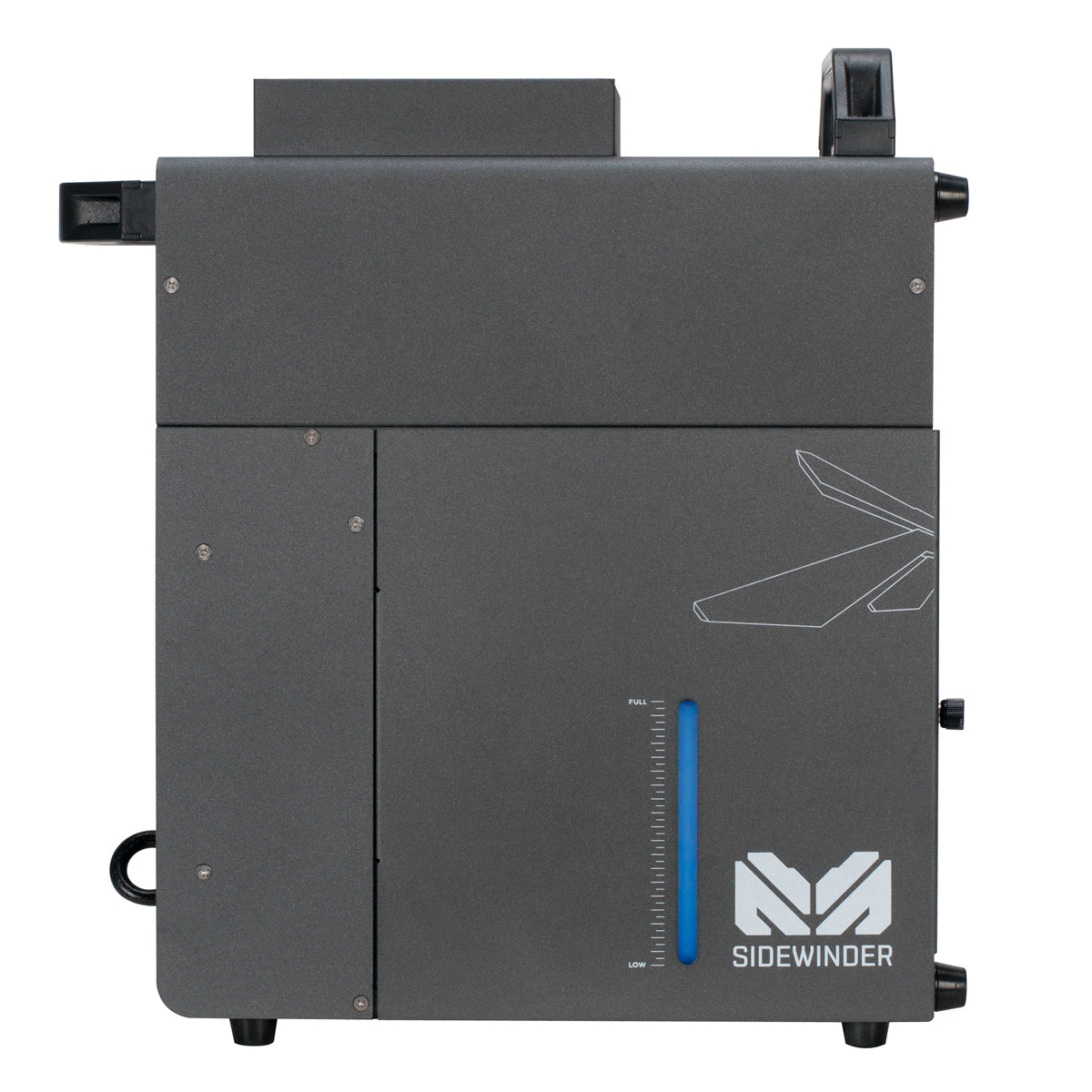

- External Visual Fluid Level Detection
- Compact Mobile Design
-
CONTROL
- 3 DMX Channel Modes (1 / 4 / 7)
- Onboard LCD Touch Control Panel
- DMX-512 and RDM Protocol Support
- Optional E-FLY Wireless DMX Transceiver
- Optional RF Wireless and Wired Remotes
- MagRemote VIDI
-

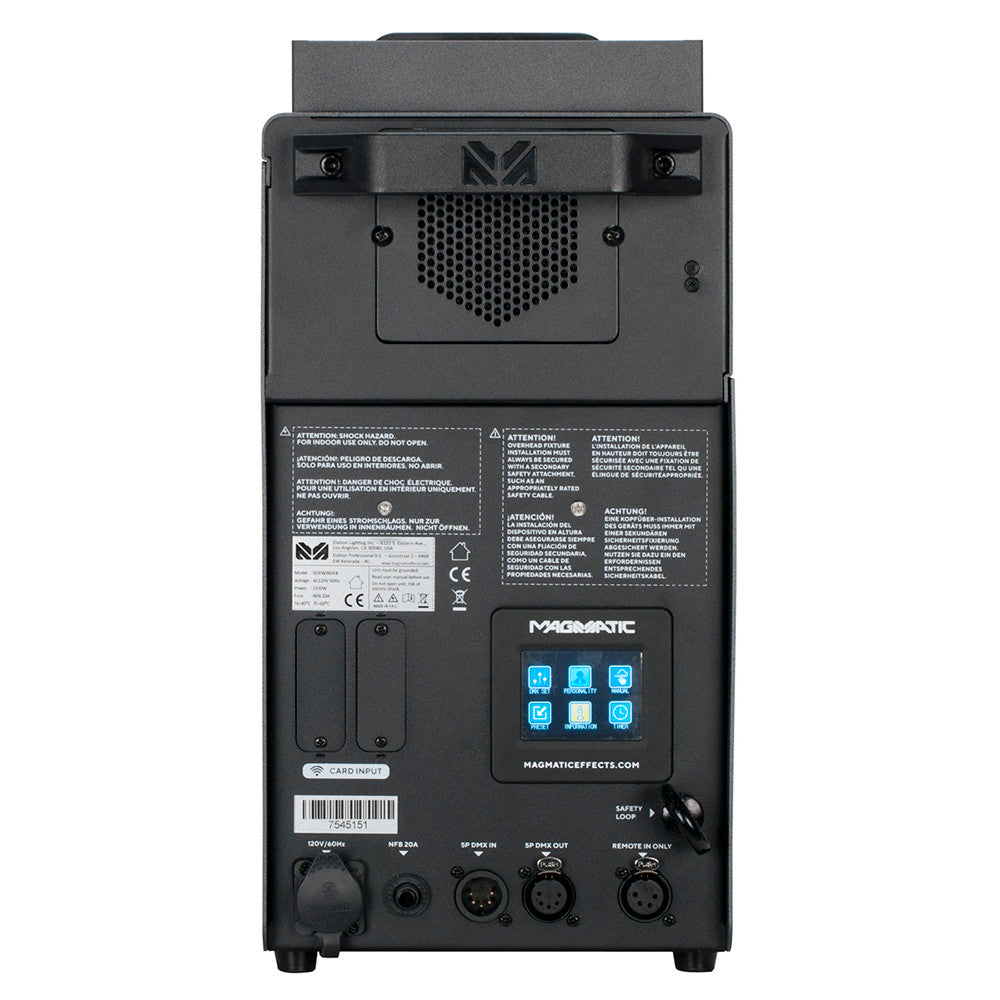

CONNECTIONS
- 5-pin locking XLR, In/Out Data Connectors
- IP65 Locking Input Power Connector
- With Wired Digital Communication Network
-
SIZE / WEIGHT
- Length: 16.26 in. (413mm)
- Width: 7.60 in. (193mm)
- Height: 14.80 in. (376mm)
- Weight: 29.5 lbs. (13.4kg)
-
ELECTRICAL
- AC 100-120V - 50/60Hz
- Breaker Size: 20A (120V Version)
- Breaker Size: 10A (230/240V Version)
- Max Power Consumption: 1560W
-
THERMAL
- Maximum Ambient Temperature (Ta max) 104°F (40°C)
- Exterior Surface Temperature, Steady State: 140°F (60°C)
- OPTIONAL ACCESSORIES
-
• Omega Clamp# 8050000053 (Qty.2 Needed)
-
APPROVALS / RATINGS
- CE | cETLus | IP20 | UKCA
- Specifications and documentation subject to change without notice.
