Elation NIP101 Netron RDM6 IP 6-Port DMX / RDM Splitter

Elation NIP101 Netron RDM6 IP 6-Port DMX / RDM Splitter

The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

Features:

• IP66 DMX Data Splitter
• (6) XLR 5pin outputs
• DMX and RDM compliant
• Optically isolated ports
• Power / DMX Thru connectors
• Powder-coated aluminum chassis

Specifications:

• Mounting:
  • Standalone
  • Truss-mount (M10 or M12)
  • Wall-mount

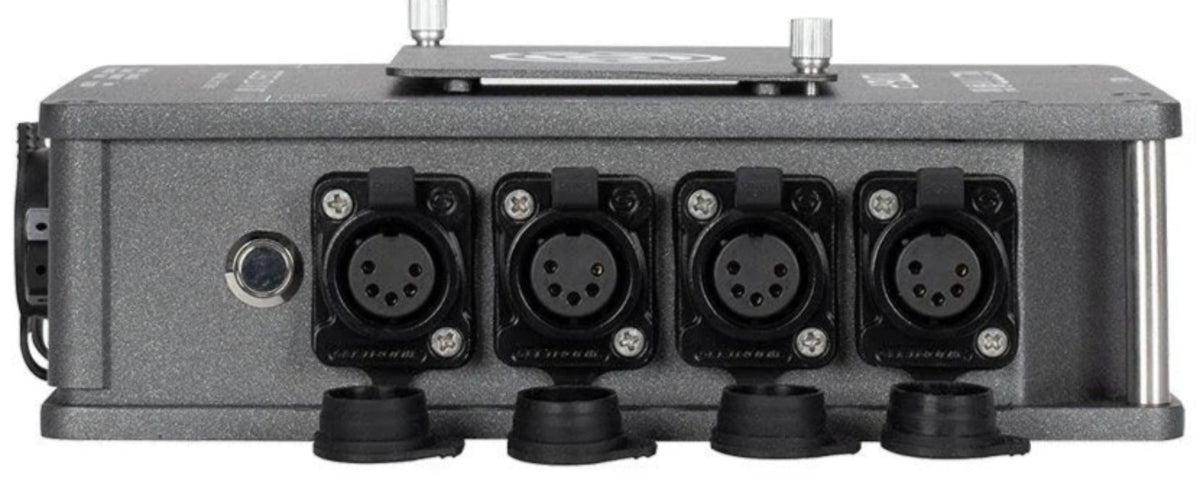

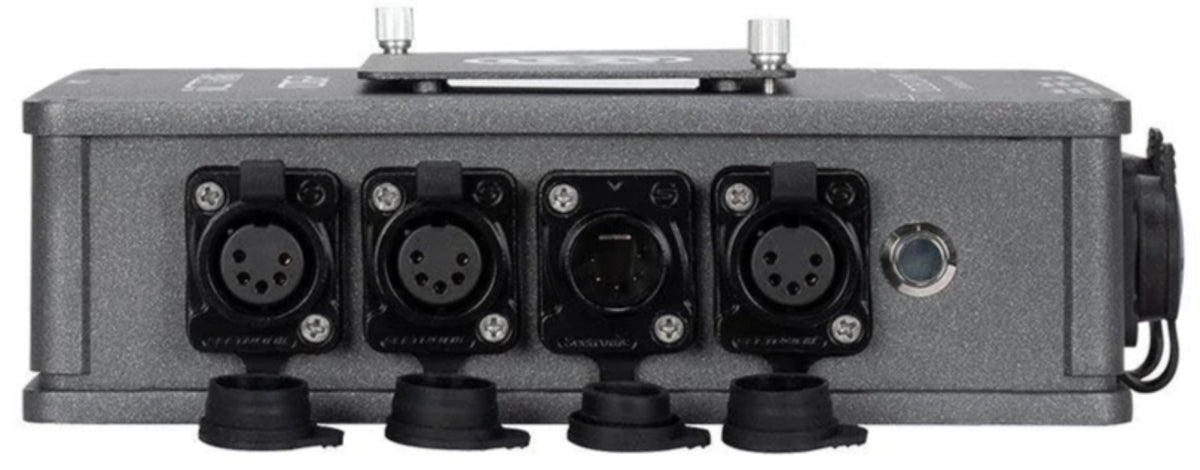

• Sides:
  • (1) 5pin IP66 DMX In
  • (1) 5pin IP66 DMX Thru
  • (6) 5pin IP66 DMX/RDM optically isolated ports
  • DMX Termination Button
  • RDM Enable / Disable Button

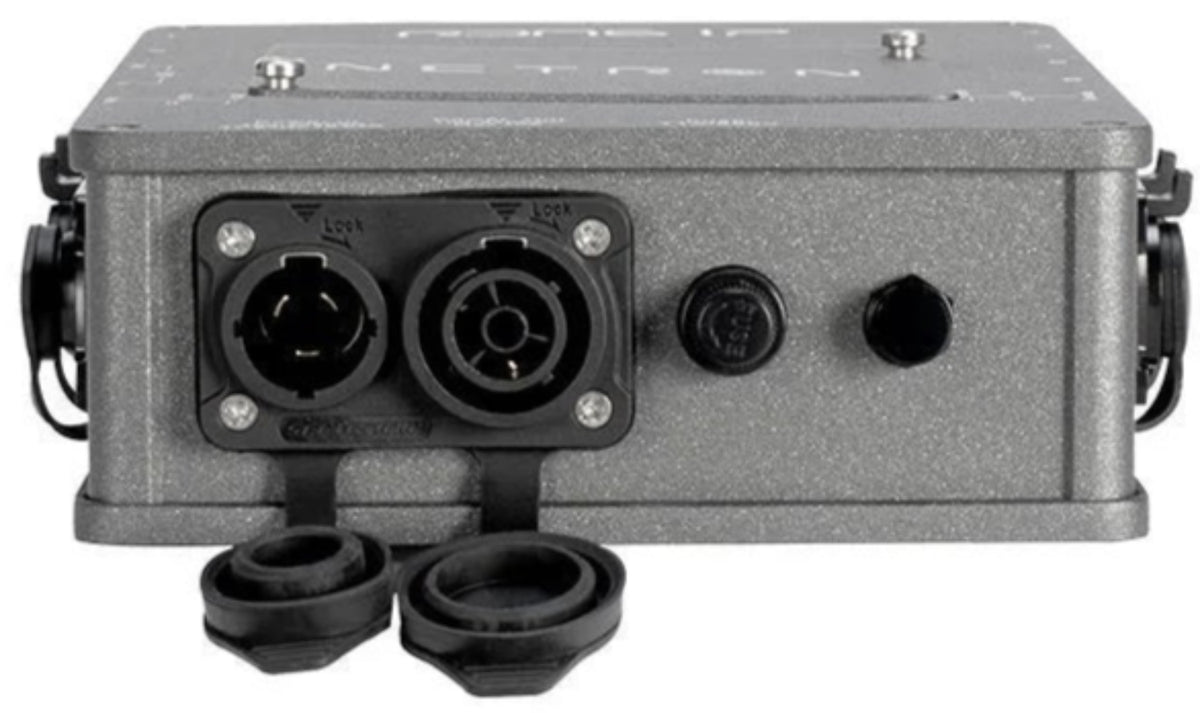

• Bottom:
  • Locking IP66 Power In/Thru

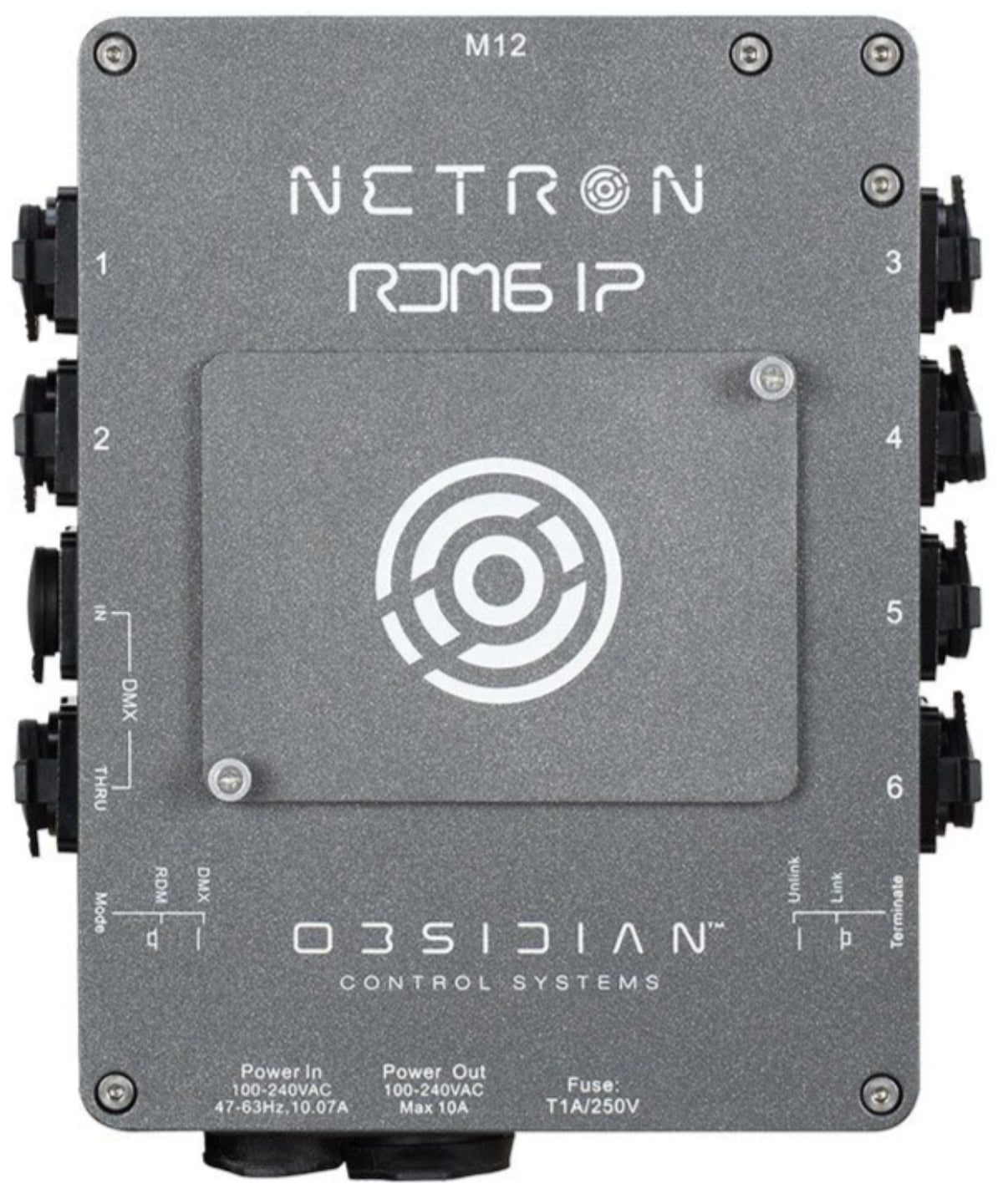

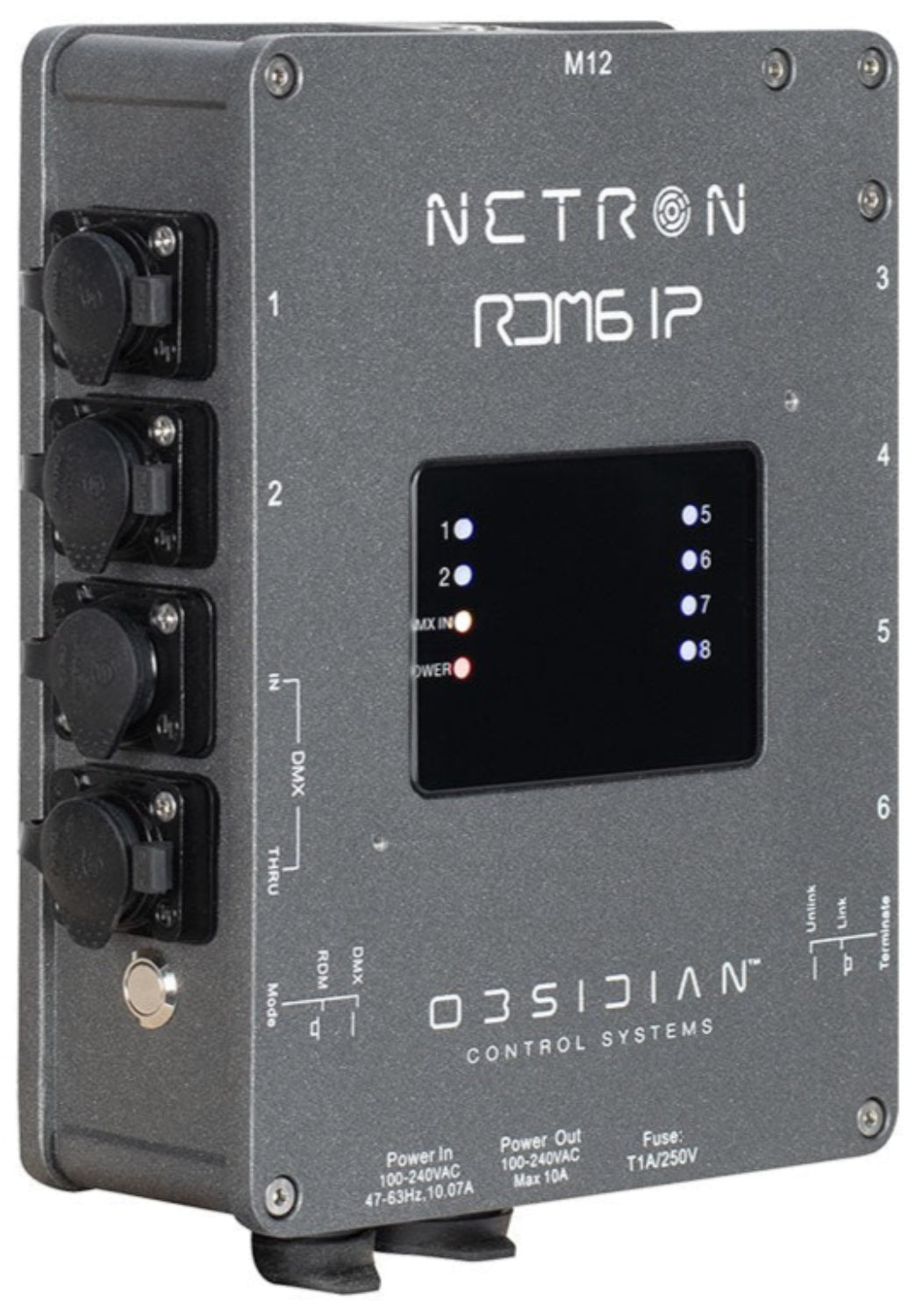

• Front:
  • LED Port Feedback
• Physical:
  • Length: 242mm (9.5 in.)
  • Width: 183mm (7.2 in.)
  • Height: 82mm (3.2 in.)
  • Weight: 2 kg (4.41 lbs)
• Electrical:
  • 100-240 V nominal, 50/60 Hz, 5W
