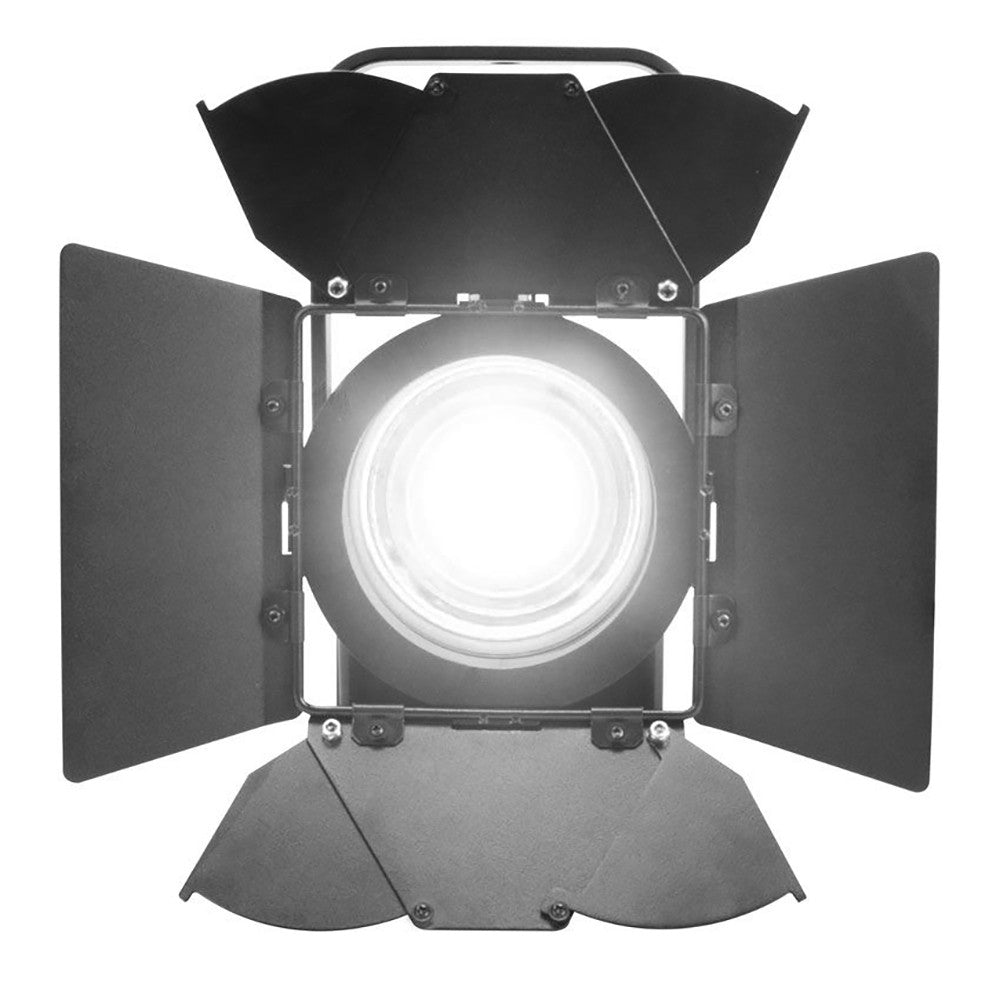

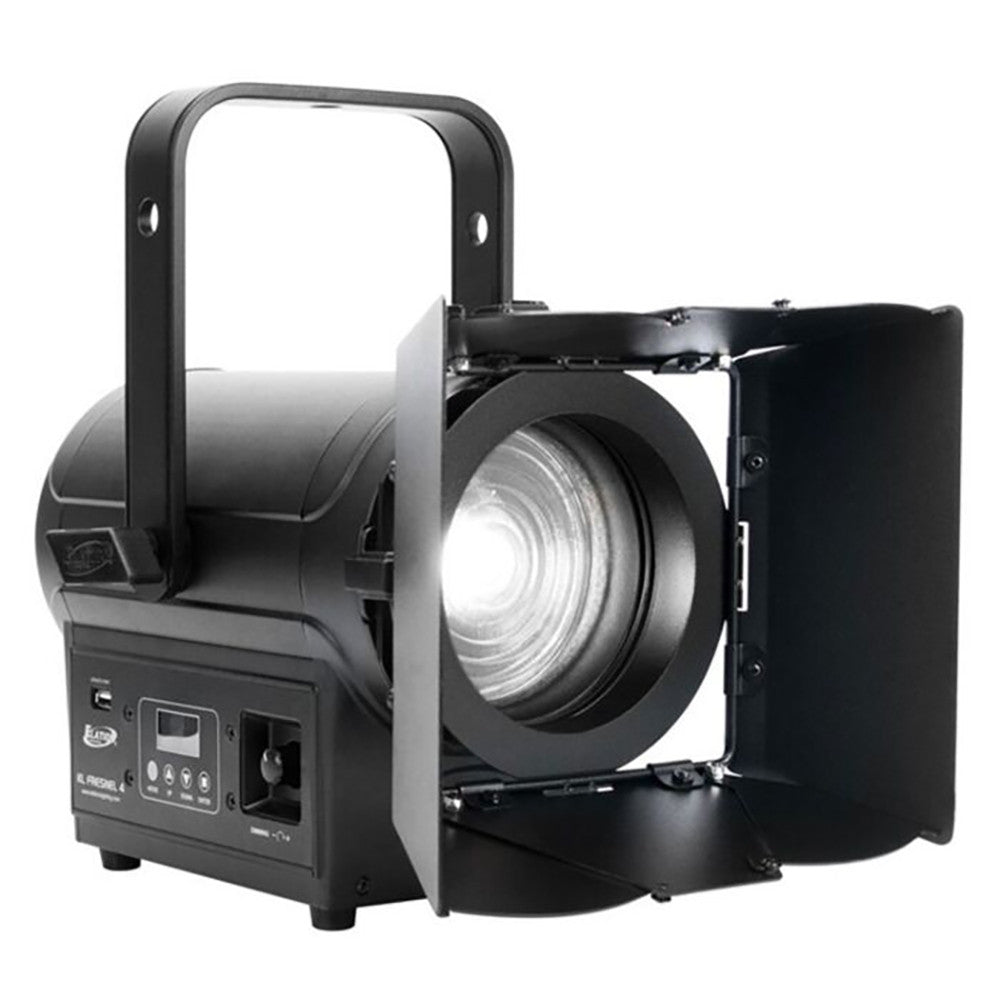

Elation KL Fresnel 4 CW; 50W CW 4" LED Frenel

Elation KL Fresnel 4 CW; 50W CW 4" LED Frenel

• 5,600K Cool White LED Fresnel Luminaire
• 50W Single Source LED
• Manual and DMX Controlled Dimming
• Quick Single Press Light Output for Focusing
• 14° - 33° Manual Zoom
• Including 8-Leaf Barn Doors and Gel Frame Holder
• Adjustable Refresh Frequency
• Silent Operation
• Variable Dimming Curves, Dim Modes and Dimming Delays
• Flicker Free Operation for Broadcast TV and Film
• RDM (Remote Device Management)

• 3 Clamp Position Adjustable Mounting Yoke

Specifications

• SOURCE

  • 50W Cool White LED Engine 5,600K, 97CRI

  • 50,000 Hour Average LED Life*


• PHOTOMETRIC DATA

  • 2300+ Total Lumen Output

  • 3,753 LUX 349 FC @ 9.8’ (3m) (Min. Zoom)

  • 814 LUX 76 FC @ 9.8’ (3m) (Max. Zoom)

  • Zoom Range 14° - 33°

  • Beam Angle 14° - 32.9°

  • Field Angle 22.1° - 51.7°

• EFFECTS

  • Manual Zoom

  • Electronic Dimmer and Strobe

  • Variable 16-bit Dimming Modes and Curves

• COLOR

  • 5,600K Cool White LED

• CONTROL / CONNECTIONS

  • Manual and DMX Controlled Dimmer and Shutter

  • Dimmer Rotary Dial

  • (5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)

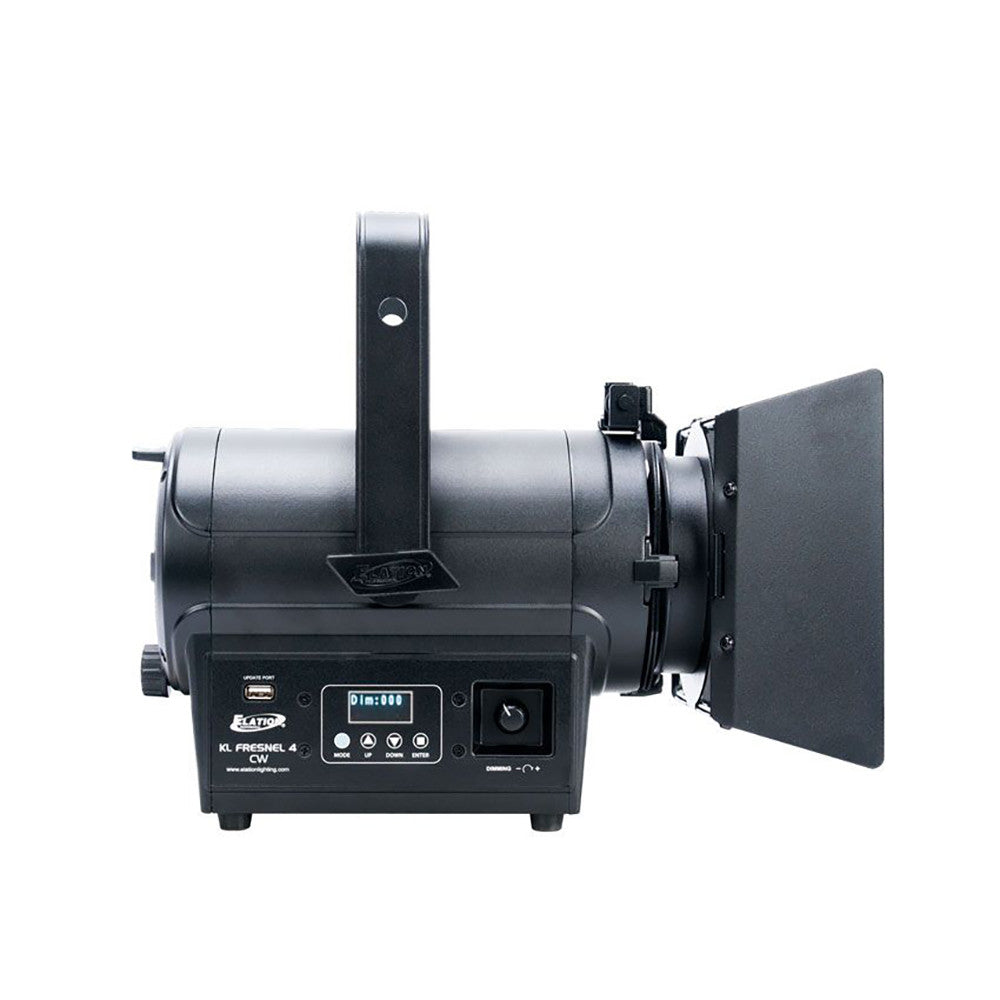

  • 4 Button Control Panel LCD Menu Display

  • RDM (Remote Device Management)

  • 5pin DMX and IP65 Locking Cable In/Out

  • With Wired Digital Communication Network

• SIZE / WEIGHT

  • Length: 9.9” (251mm)

  • Width: 7.9” (201mm)

  • Vertical Height: 11.4” (289mm)

  • Weight: 9.0 lbs. (4.08 kg)

• ELECTRICAL / THERMAL

  • AC 100-240V - 50/60Hz

  • 50W Max Power Consumption

  • 5°F to 113°F (-15°C to 45°C)

  • Power Linking: 12Pcs @ 110V / 27Pcs @240V

  • BTU/hr (+/- 10%) 157

• INCLUDED ITEMS

  • Gel Frame and Rotating Barn Doors

  • IP65 Locking Power Cable

  • Barn Doors
