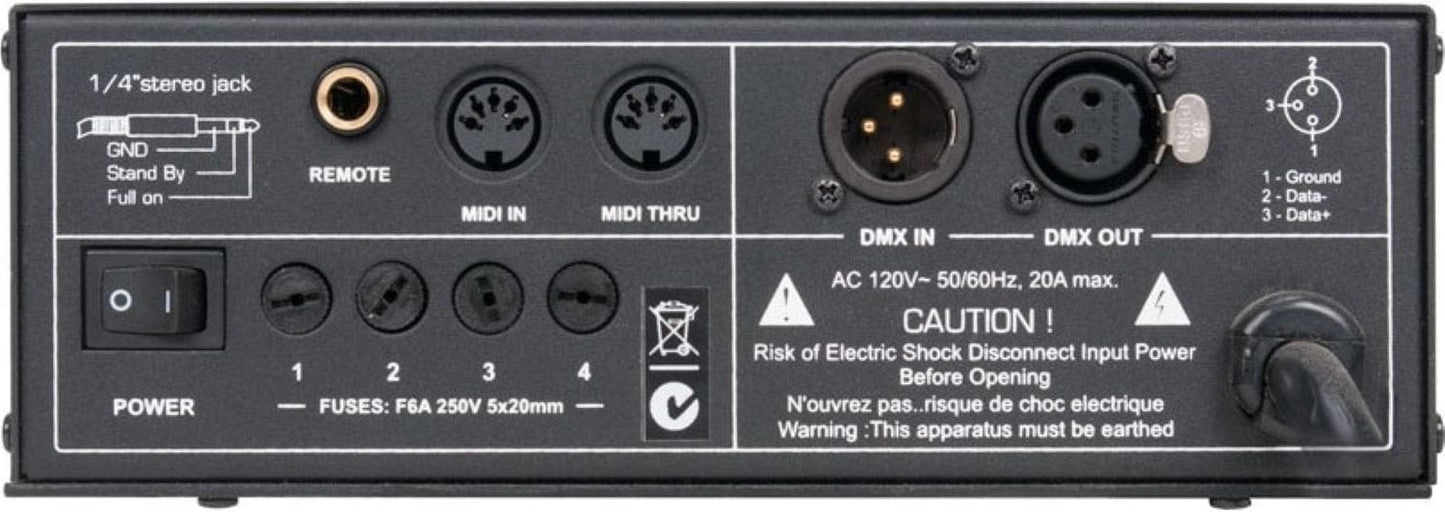

Elation Cyber Pak 4 Channel 2400 Watt Portable Dimmer
The CYBER PAK is an all-in-one Dimmer/Power/MIDI Pack with multiple functions. This pack allows you to convert from a dimmer to a relay pack through the menu function.
Features:
- Dimmer Mode: (4) Channel Dimmer (1, 2 or 4 Channel Option) - Individual Channel Assignment & Output Limiter
- Relay Mode: (4) Channel Relay (1, 2 or 4 Channel Option) - Individual Channel Assignment
- Chaser Mode: (4) Channel Chase Controller - 16 Internal Chase Programs Adjustable Fade Times
- Mide Mode: Receives MIDI Notes 001-128 Program - MIDI In & MIDI Through Connections
Specifications:
- Control / Connections:
- (2) 3-prong Edison Sockets per Channel (8 total)
- 5pin MIDI IN/OUT Ports
- 3pin XLR IN/OUT Ports
- (4) Button LED Display Control Panel
- Master Power Switch
- Size / Weight:
- Length: 8.3" (212mm)
- Width: 10.4" (265mm)
- Vertical Height: 3.0" (75mm)
- Weight: 8.0 lbs. (3.6kg)
- Eletrical / Thermal
- AC 120V 50/60Hz 20A Max
- NOTE: Main Power Cord has NEMA 6-20P Connector
- 2,400W Max Power Consumption (600W per channel)
- Approvals / Ratings: CE | cETLus
- Control / Connections:
- (2) 3-prong Edison Sockets per Channel (8 total)
- 5pin MIDI IN/OUT Ports
- 3pin XLR IN/OUT Ports
- (4) Button LED Display Control Panel
- Master Power Switch
- Size / Weight:
- Length: 8.3" (212mm)
- Width: 10.4" (265mm)
- Vertical Height: 3.0" (75mm)
- Weight: 8.0 lbs. (3.6kg)
- Eletrical / Thermal
- AC 120V 50/60Hz 20A Max
- NOTE: Main Power Cord has NEMA 6-20P Connector
- 2,400W Max Power Consumption (600W per channel)
- Approvals / Ratings: CE | cETLus
