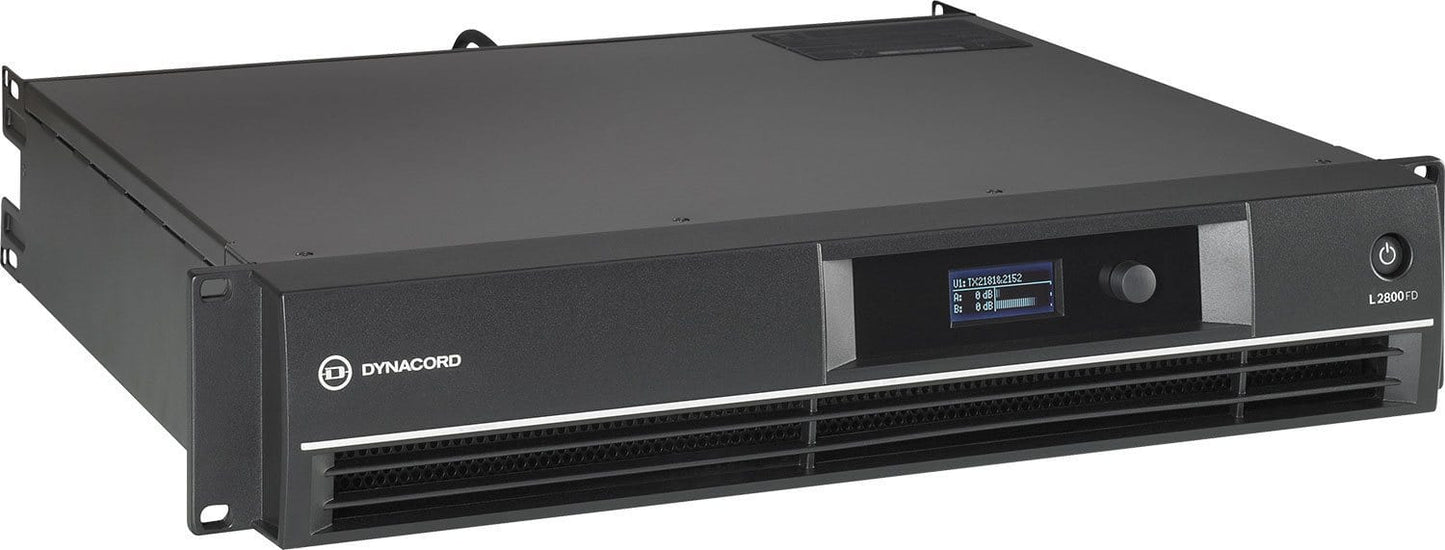

Dynacord L2800FD Power Amplifier with DSP
DYNACORD L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
Features:
- Professional DSP amplifier for live and mobile application
- Fully integrated professional speaker processing with FIR Drive technology
- Market leading acoustic performance and rock solid reliability
- Intuitive system control software, makes setup and control easy
Specifications:
- Maximum RMS Voltage Swing THD = 1%, 1 kHz: 78.8 V
- Voltage Gain Ref.1 kHz: 32.0 dB
- THD at 900 W/4 ? MBW = 80 kHz, 1kHz: < 0.05%
- IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
- DIM30, 3.15 kHz, 15 kHz: < 0.05%
- Maximum Input Level: +21 dBu
- Crosstalk ref. 1 kHz, at 100W/4 ?: < -80 dB
- Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (±1 dB)
- Input Impedance, Active Balanced: 20 k ?
- Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 ?: >107 dB
- Output Noise, A-weighted: < -68 dBu
- Output Stage Topology: Class H
- Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz(factory configured)
- Power Consumption 1/8 Maximum Output Power @ 4 ?: 700 W
- Mains Fuse: 240 V/230 V: T15AH; 120 V/100 V: T25AH
- Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
- Cooling: Front-to-rear, 3-stage-fans
- Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F)
- Safety Class: I
- Color: Black
- Dimensions (W x H x D): mm483 x 88 x 462.4mm
- Weight: 16.2 kg (35.7 lbs.)
- Signal Processing: FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance
