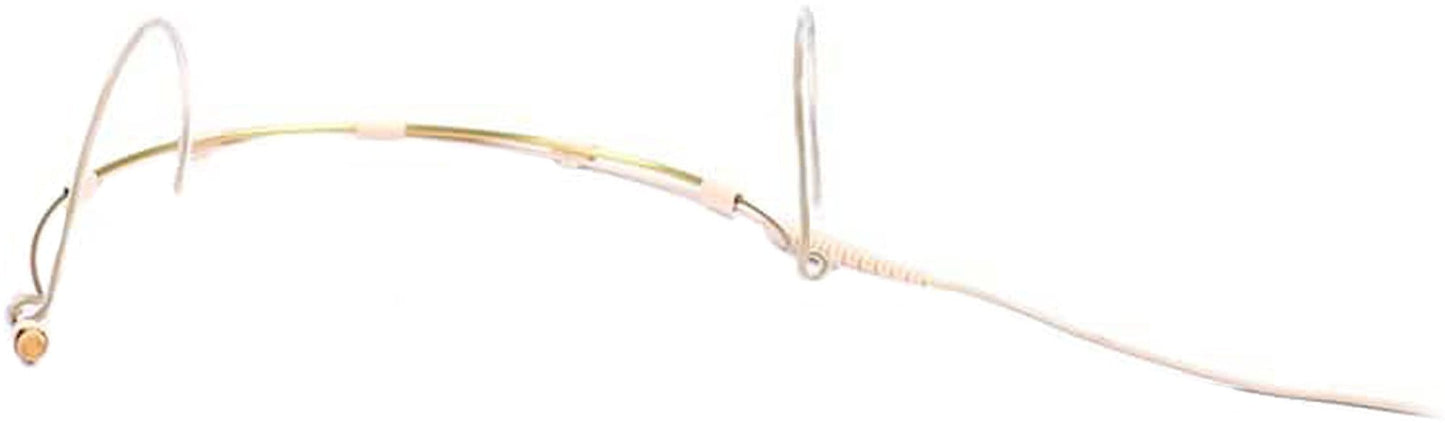

DPA Microphones 4066 Omni Headset Microphone Beige
This microphone offers clean and transparent sound quality with lots of headroom. For years, this has been the chosen headset mic for broadcasters as well as theaters on Broadway, as well as in many auditorium and lecture halls. This is due to its pristine sound and durability.
Features:
- Resistant to humidity
- Double-vent protection system
- Available in three colors and three sizes
- Modular adapter system fits most professional wireless systems
Specifications:
- Directional pattern: Omnidirectional
- Principle of operation: Pressure
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range ±2 dB: Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz
- Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
- Equivalent noise level, A-weighted:Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
- Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
- Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
- Dynamic range - Legacy: Typ. 97 dB
- Dynamic range - CORE: Typ. 111 dB
- Max. SPL, THD 10%: 144 dB SPL peak
- Rated output impedance: 30 - 40 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Power supply (for full performance):
- For wireless systems: Min. 5 V - max. 10 V through DPA adapter
- With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- Connector: MicroDot
- Color: Black, beige or brown
- Weight: 14 g (0.5 oz) incl. Cable and MicroDot connector
- Microphone diameter: 5.4 mm (0.21 in)
- Cable length: 1.2 m (3.9 ft)
- Cable diameter: 1.6 mm (0.06 in)
- Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
