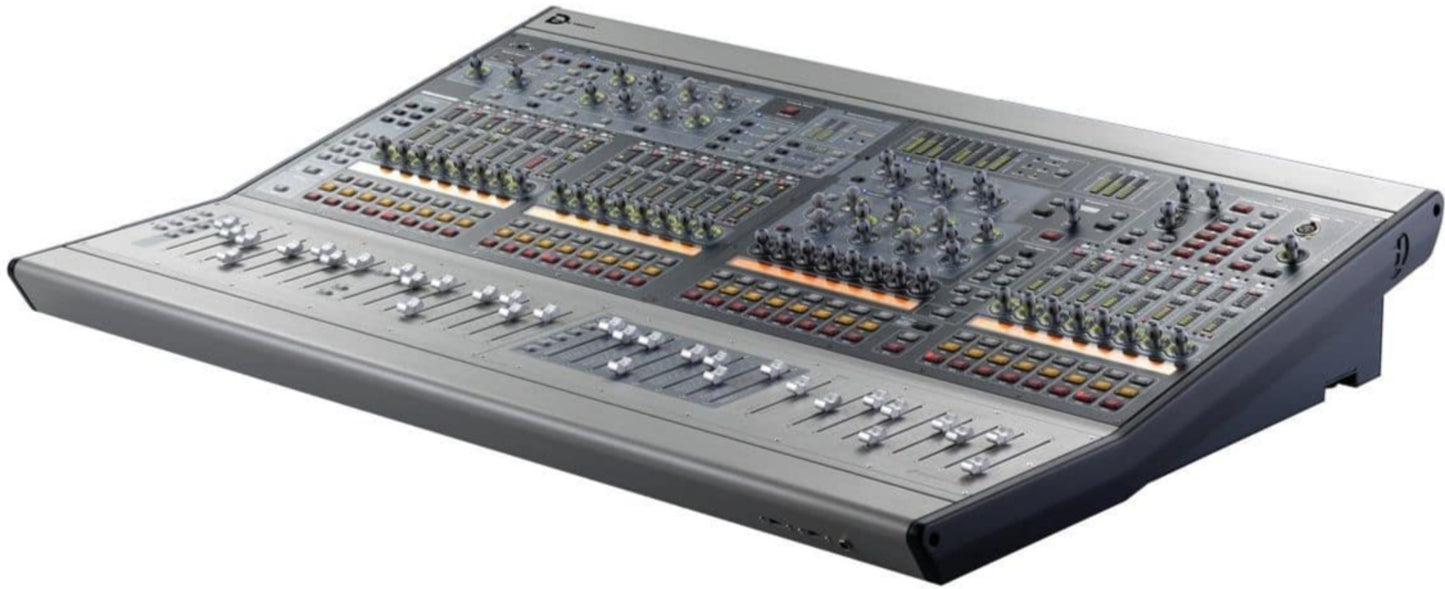

Digidesign D-SHOW Digital Mixing Console
VENUE D-Show systems offer an intuitive, expandable console layout, a flexible I/O scheme, powerful digital processing, and expansion options for integrated Pro Tools recording and artist-controlled monitor mixing.
Features:
- Control Features
- 24 bankable input channel strips, each with a touch-sensitive fader and two multi-purpose assignable rotary encoders
- Built-In High-Pass Filter, Dynamics and EQ processors on each Input channel strip
- Level meters on each input channel strip
- Assignable Channel Section (ACS) with dedicated Bus Assign, Aux Send, Direct Output, EQ and Dynamics controls
- 8 multi-purpose Assignable Output Encoders, with solo, mute and select controls
- 8 multi-purpose, touch-sensitive Assignable Output Faders, with solo, mute and select controls
- Up to 24 31-band Graphic EQs available for use on Output busses
- Main Busses configurable as Left–Center–Right or Left–Right+Mono
- I/O Features
- Stage Rack
- Up to 48 inputs on each Stage Rack, with remotely controllable mic preamps and individually selectable Phantom Power
- Up to 48 outputs on each Stage Rack
- FOH Rack
- 8 channels of analog I/O for connecting outboard equipment
- 2-channel analog/digital I/O for 2-track feed or playback
- 2-channel analog near-field monitor system outputs
- Intercom mic input
- 16 channels of MIDI I/O
- Word clock I/O for integrating external digital devices
- Control Surface
- Talkback mic input
- Headphone output
- 24 bankable input channel strips, each with a touch-sensitive fader and two multi-purpose assignable rotary encoders
- Built-In High-Pass Filter, Dynamics and EQ processors on each Input channel strip
- Level meters on each input channel strip
- Assignable Channel Section (ACS) with dedicated Bus Assign, Aux Send, Direct Output, EQ and Dynamics controls
- 8 multi-purpose Assignable Output Encoders, with solo, mute and select controls
- 8 multi-purpose, touch-sensitive Assignable Output Faders, with solo, mute and select controls
- Up to 24 31-band Graphic EQs available for use on Output busses
- Main Busses configurable as Left–Center–Right or Left–Right+Mono
- Up to 48 inputs on each Stage Rack, with remotely controllable mic preamps and individually selectable Phantom Power
- Up to 48 outputs on each Stage Rack
- 8 channels of analog I/O for connecting outboard equipment
- 2-channel analog/digital I/O for 2-track feed or playback
- 2-channel analog near-field monitor system outputs
- Intercom mic input
- 16 channels of MIDI I/O
- Word clock I/O for integrating external digital devices
- Talkback mic input
- Headphone output
