Description

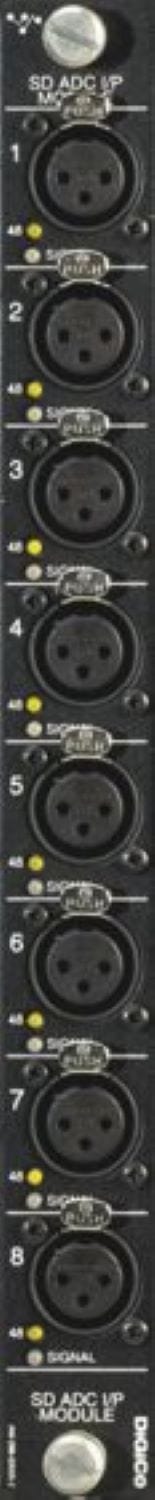

DIGICO SDADC192 192-Kilohertz SD-Rack Input Card
This card provides users with 8 high quality analogue inputs for the DiGiCo SD-Rack, SD-MiNi Rack, SD-Nano Rack and 4REA4.
Features:
- 8 analogue outputs
- Compatible with SD-Range and 4REA4
- Designed to be hot plugged
- Max Output Level: 24dBu
- Latency @96k (Rack IO A-A): 1.33ms
- THD+N% (0dBFS 1k): 0.002 (-94dB)
- Dynamic Range D-A: 133dBu
- AVG Noise D-A (20k AES17): -91dBu
- D-A Frequency Response: 20-20kHz ±0.35dB
- Crosstalk: -100dB
- For Nominal ZLINE: 600 Ω
- ZOUT : 50Ω
